Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 48f 4x12f mtp mpo to 4x12f mtp mpo patchcord om4 rose in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

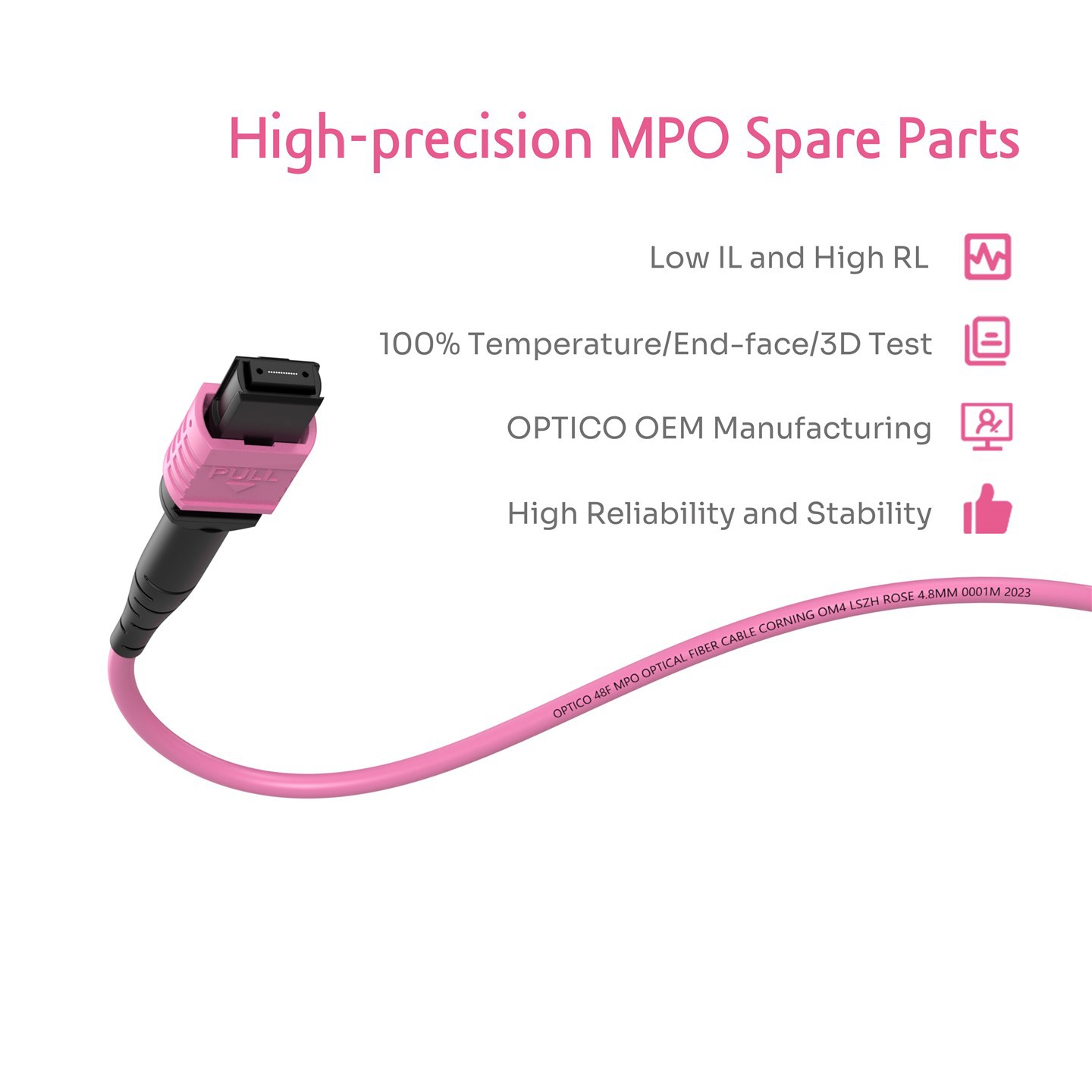

The 48F 4x12F MTP MPO To 4x12F MTP MPO Patchcord OM4 Rose is terminated with MPO connectors on both ends to form a permanent link of MPO modules.
The MTP fanout cable series has 8~144 optical fibers, which is ideal for the next generation of 100G/200G/400G/800G data centers.
The MTP fanout cable supports data center solutions with speeds up to 10/40/100Gbps.
The 48F MTP fanout cable is typically used to interconnect tapes, panels, or general-purpose MPO fan-outs, and facilitate rapid deployment of high-density backbone cables in data centers and other high-fiber environments.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 48 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Rose |
| Cable Diameter(mm) | 4.8 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
High Density Fiber Configuration
Featuring MT-based multi-fiber connectors, this patchcord supports 48 fibers and is structured with 4x12F MTP/MPO connectors on both ends, providing a robust and efficient fiber arrangement for 100G QSFP SR4.
Low Insertion Loss, High Return Loss
With a focus on performance, the 48F MTP fanout cable ensures low insertion loss(0.5dB/0.35dB/0.25dB available) and high return loss≥35dB, contributing to the overall efficiency of 100G data transmission.
Versatility in Applications
The patch cable seamlessly interconnects cassettes, panels, and ruggedized MPO fan-outs, enabling the swift deployment of high-density backbone cabling.
It support transmission rates up to 10/40/100Gbps, specifically designed for high-speed data centers.
Color-Coded Housings
The color-coded housings aid in easy differentiation of fiber type, polish type, and/or connector grade, simplifying cable management.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
FAQ
Q: Can MPO fiber patch cords be deployed in outdoor or harsh environmental conditions?
Q: Can MPO fiber patch cords be customized for specific lengths and connector configurations?
Q: What are the common applications of MPO fiber patch cords in data centers?
