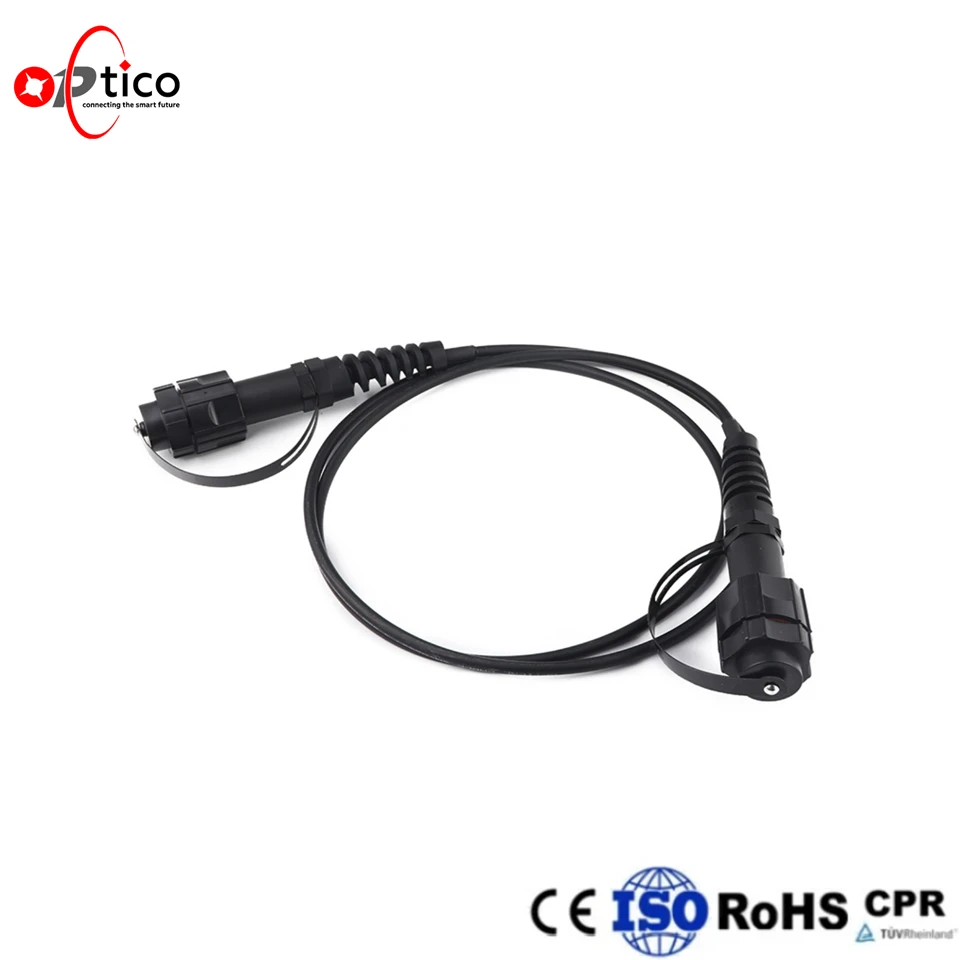

12F ODVA MTP MPO Outdoor Patch Cord

ODVA MPO Connector Housing

Custom configurations are available beyond the options listed above. Fiber count, fiber type, cable length, outer diameter, jacket material, polarity and fiber mapping can be tailored to project requirements.

Left and right connector configurations can be specified independently. Connector performance options include single mode standard loss, single mode low loss, multimode standard loss and multimode low loss. Male or female connector types are selected separately for each end.

IL/RL Test

Polarity Test

End-surface Test

Temperature Test

The rating applies to the tested assembly condition. Confirm whether it covers a fully mated connection, a disconnected port fitted with a specified sealing cap, or both. The validated immersion depth and duration must also suit the installation. A transport dust cover should not automatically be treated as a waterproof sealing cap.

Check both the outer housing and the internal optical interface. Review the mating adapter model, coupling dimensions, key orientation, MPO ferrule format, guide pin arrangement and polish. Providing the equipment port drawing or adapter datasheet allows the complete mating interface to be reviewed before ordering.

Yes, provided each end mates with a compatible female MPO interface. Every mated optical pair requires one pinned ferrule and one unpinned ferrule. Here, male and female refer to the MPO guide pin configuration, independently of the outer ODVA housing. Select each cable end according to its actual mating interface.

No. The final routing depends on both breakout assemblies, the trunk cable and the key orientation at each MPO interface. For an LC breakout link, define the required port correspondence, channel numbering and connector viewing direction on the complete link drawing. Verify every channel against that drawing after assembly.

Build the channel loss budget from all mated connector pairs, fiber attenuation and any splices. Clarify whether a quoted loss limit applies to one interface or the complete assembly, and agree on test wavelengths and the reference method. Assess each fiber channel individually, as an acceptable average can conceal a failing channel.

Contamination can be introduced during handling, even when the connection was previously sealed. Inspect both mating MPO end faces, clean when necessary with a suitable MPO cleaning tool, and inspect again before mating. If loss remains high, check connector engagement, guide pin condition and cable bends, then test the affected channels to locate the problem.
