Product profile

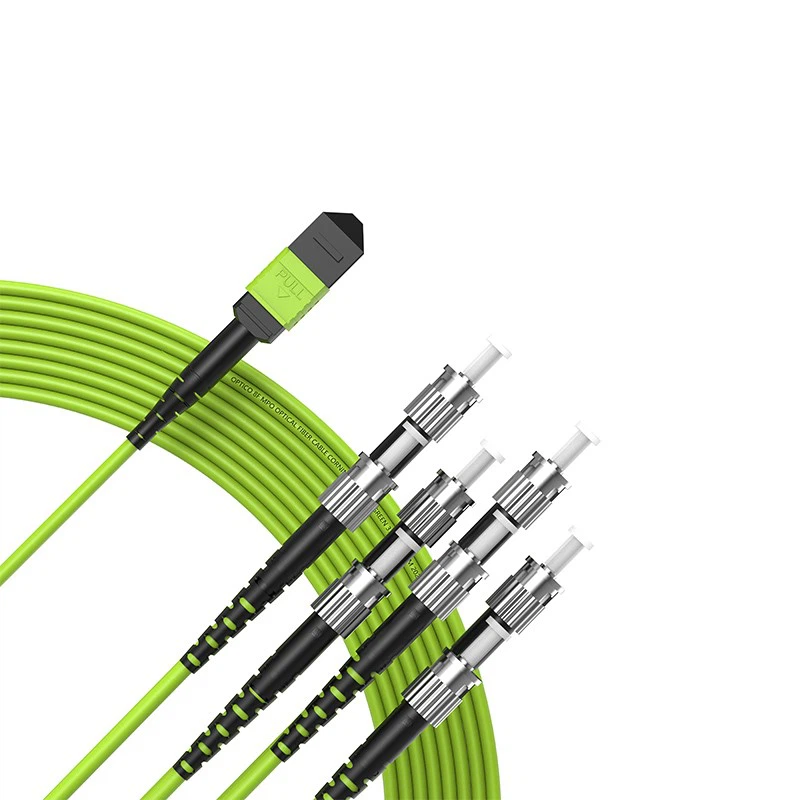

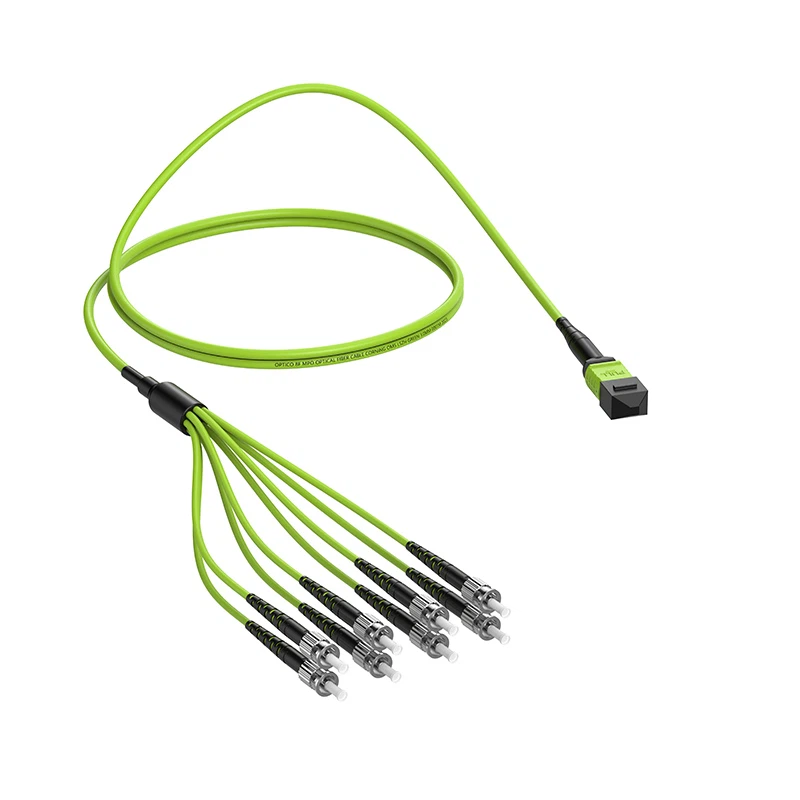

The fiber counts of 8 Fibers MPO ST Break Out Patch Cable OM5 can be 8F/12F/16F/24F/32F/36F/48F/72F/96F/120F/144F, which can be customized.
8 Fibers MPO ST Break Out Patch Cable OM5 uses high-qualified brands materials, the connector uses US Conec MTP or OPTICO MPO, with PINs (Male) and No-PINs (Female) and the optical fiber is Corning/YOFC.
8 Fibers MPO ST Break Out Patch Cable OM5 is low insertion loss and high return loss.
OPTICO MPO patch cord are available in Standard Loss(≤0.5dB), Low Loss (≤0.35dB), and Ultra-low Loss (≤0.25dB).
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | Connector A: US Conec MTP Female/Male; MPO Female/Male | ||
| Connector B: LC/SC/FC/ST | |||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
According to the actual application scenario, OPTICO provides a variety of outer sheath materials such as LSZH/OFNP/OFNR to choose from, with good flame retardancy and a service life of up to 20 years.
The high-quality Hakusan ceramic ferrule can achieve low insertion loss ≤0.50dB and maximum insertion loss ≤0.70dB, with excellent signal transmission efficiency and minimal power loss.
The stable performance anti-bending Corning/YOFC optical fiber can be flexibly wired in a limited space.
The compact design of the MPO connector can achieve high-density connection of 8-144 cores, and the plug-and-play design facilitates quick and easy installation, saving cable installation, management and maintenance costs.
Rigorous Testing & Industry Standard
Before reaching the end-user, each cable undergoes rigorous testing, including 100% testing of insertion loss, back reflection, and interferometry. This commitment to quality ensures that the insertion loss does not exceed 0.35 dB. All MTP/MPO cable assemblies adhere to TIA/EIA and IEC intermateability standards.
applications
High Density Data Center
Backbone Network
Optical Module Connection
our brand confidence comes from a strong production team
100% strict performance tests

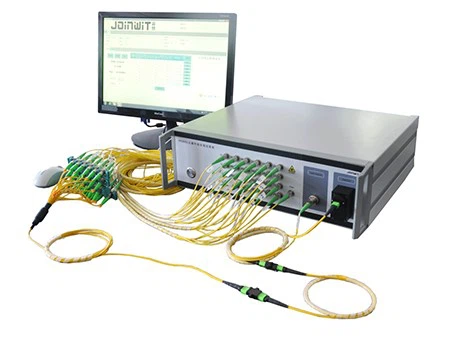

IL/RL Test

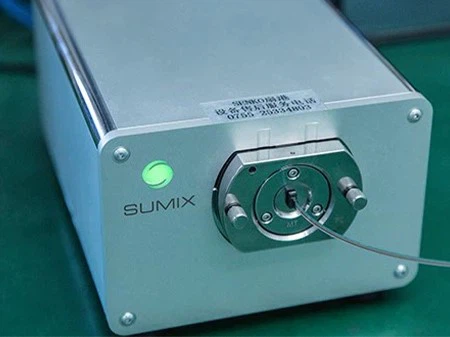

3D Test
End Face Test
Temperature Test
certificates
CE
CPR
ISO
RoHS
full ranges of reliability tests from third-party lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
ordering process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
how we can stand by you
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
after-sales services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
