Product Profile

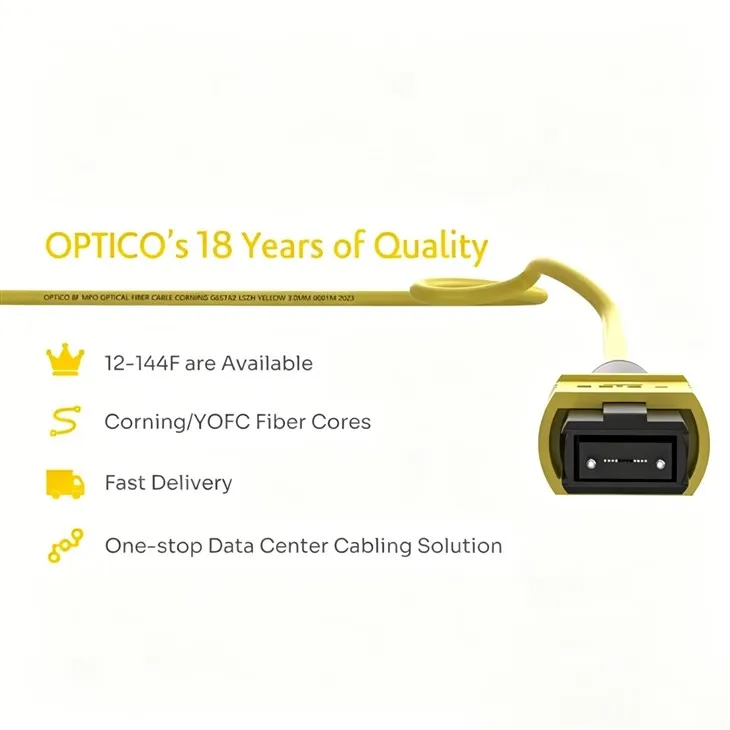

- This 24 MPO to 2x12 MPO Fiber Patch Cord OS2 adopts OS2 single mode fiber. It features a 24-fiber MPO trunk end split into two 12-fiber MPO branches, enabling seamless link conversion for high-density cabling.Fully compliant with TIA and IEC standards, the 24 MPO to 2x12 MPO Fiber Patch Cord OS2 supports 10G/40G/100G/400G high-speed transmission, ideal for data center backbone interconnection, TOR/EOR deployment and link distribution.
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 24F(2×12) | ||
| Fiber Mode | OS2 | ||
| Connector Type | MPO Female/Male;US Conec MTP Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow | ||
| Cable Diameter(mm) | 3.0 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥ 35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -20 ~ +70 | ||
| Storage Temperature(°C) | -40 ~ +85 | ||
Product Features
Flexible Fiber Distribution

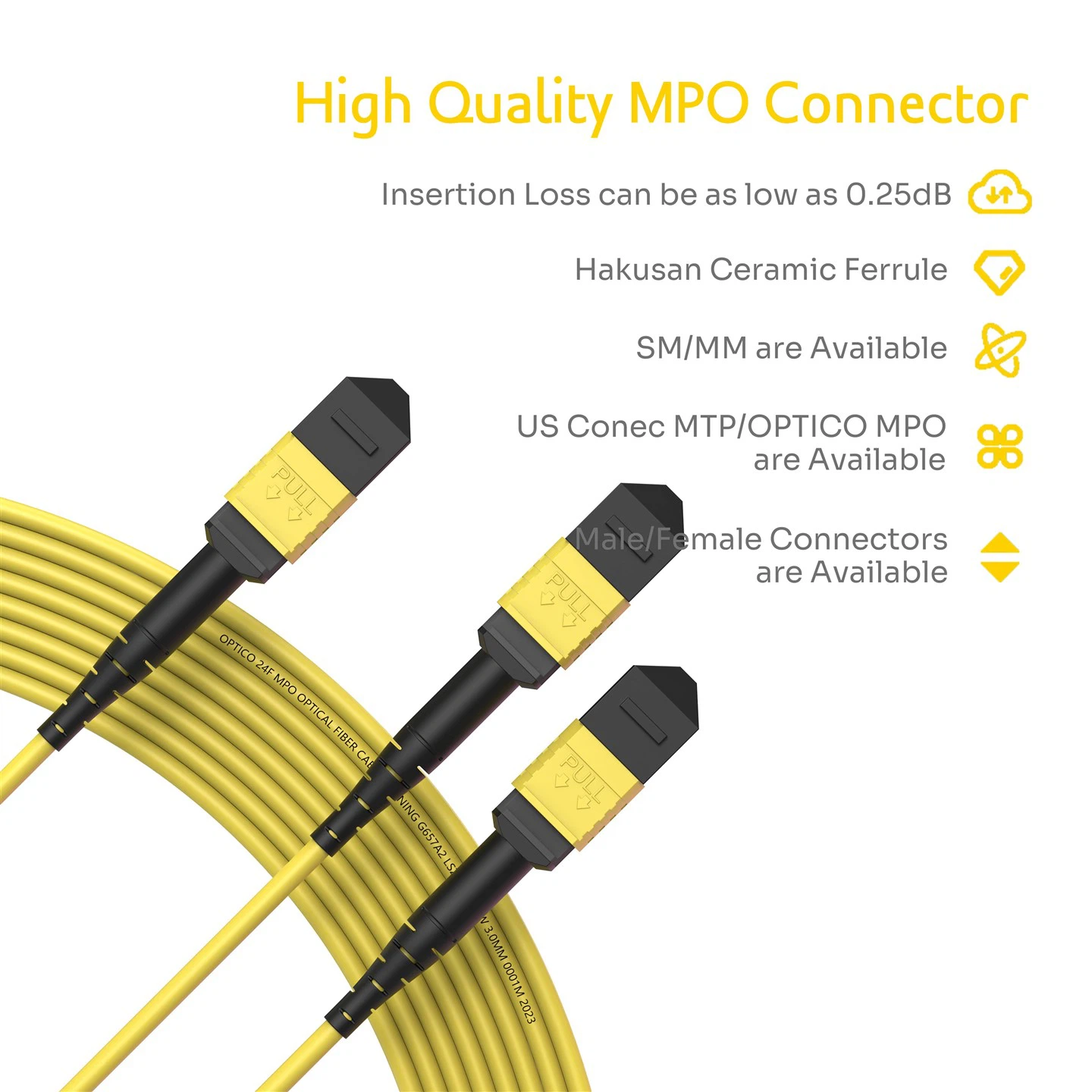

24 to 2×12 fiber split design matches mainstream 12/24F MPO port devices, realizing quick link splitting without extra adapters.
High Cabling Density
Integrated structure replaces multiple simplex cords, saving cabinet space and simplifying on-site deployment and daily maintenance.
Low Insertion Loss & High Stability

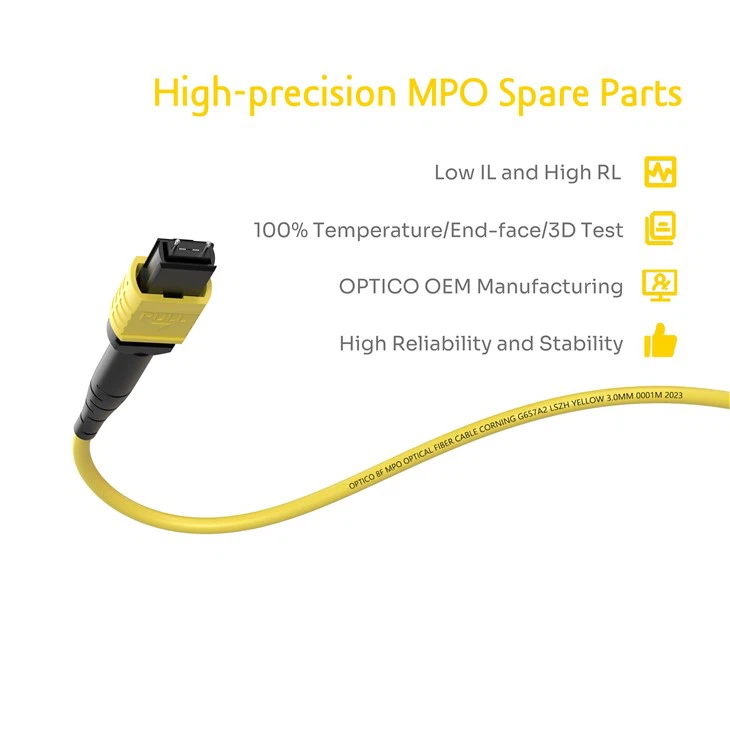

Precision MPO connectors and OS2 fiber ensure typical insertion loss ≤0.35dB and return loss ≥35dB, delivering reliable signal transmission for long-haul links.
Excellent Durability & Compatibility

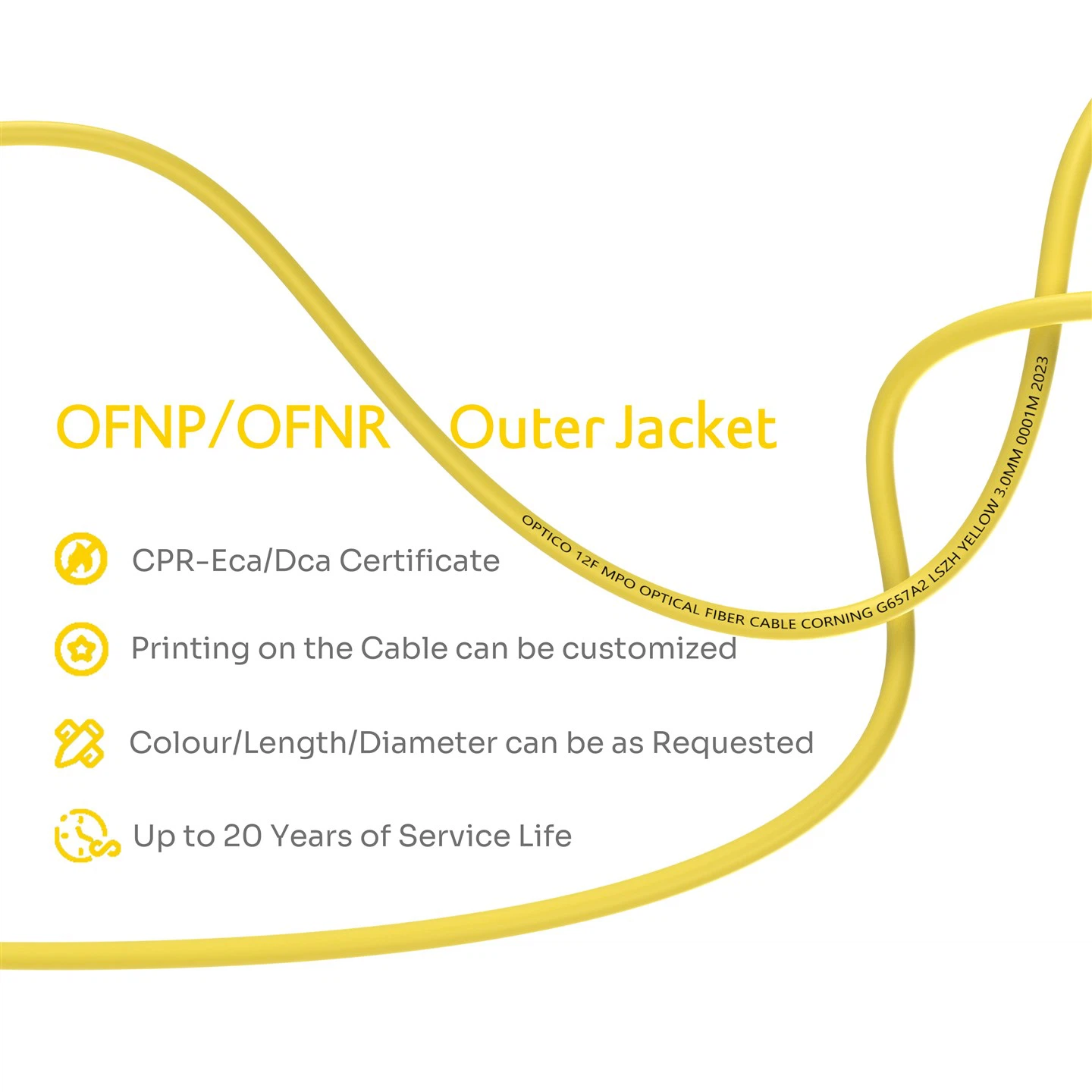

Compliant with IEC 61754-7 and TIA-604-5. Supports over 500 mating cycles. LSZH flame-retardant jacket adapts to harsh indoor cabling environments.
Product Applications
High Density Data Center
Backbone Network
Optical Module Connection
100% Strictly Tested Before Delivery
We are equipped with professional testing equipment, standardized testing procedures, and a senior technical testing team,
which can fully meet the performance testing and quality verification needs of our entire product line.
IL/RL test
3D test
Temperature test
Certificates
CE
CPR
ISO
RoHS
FAQ
What is the difference between MTP and MPO?
