Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of mpo mtp trunk cable om4 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

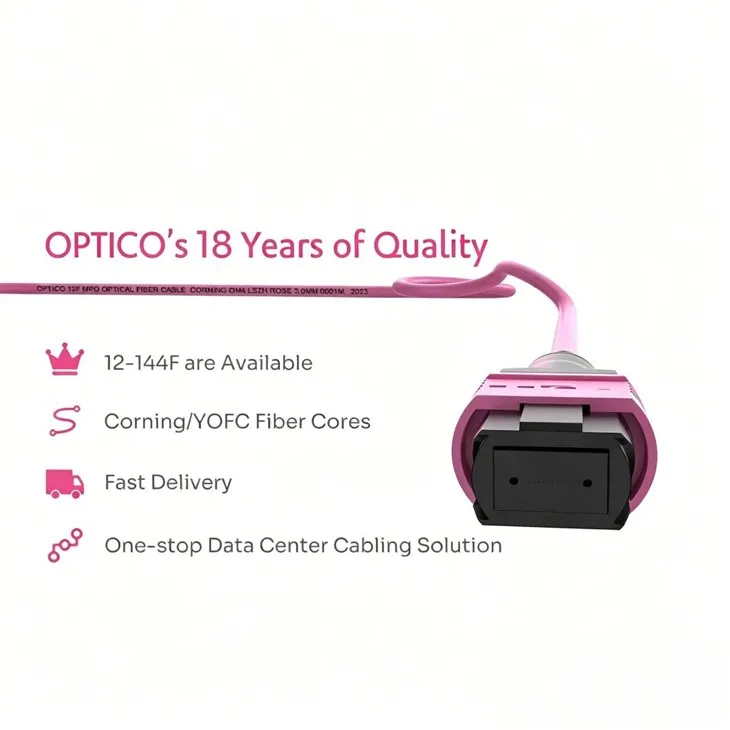

- This MPO MTP Trunk Cable OM4 is engineered for high-density and high-speed cabling applications in data centers. Adopting factory pretermination technology, the trunk cable is assembled with standard MPO/MTP connectors and OM4 50/125 μm laser-optimized multimode fiber. A full range of fiber counts including 12, 24, 48, 72, 96 and 144 cores are available.
- All products undergo rigorous optical testing prior to delivery. The MPO MTP Trunk Cable OM4 fully supports 40G, 100G, 400G and next-generation 1.6T parallel optical transmission networks, and is widely deployed for data center backbone links, horizontal cabling and zone distribution wiring.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | Customizable | ||
| Fiber Mode | OM4 | ||

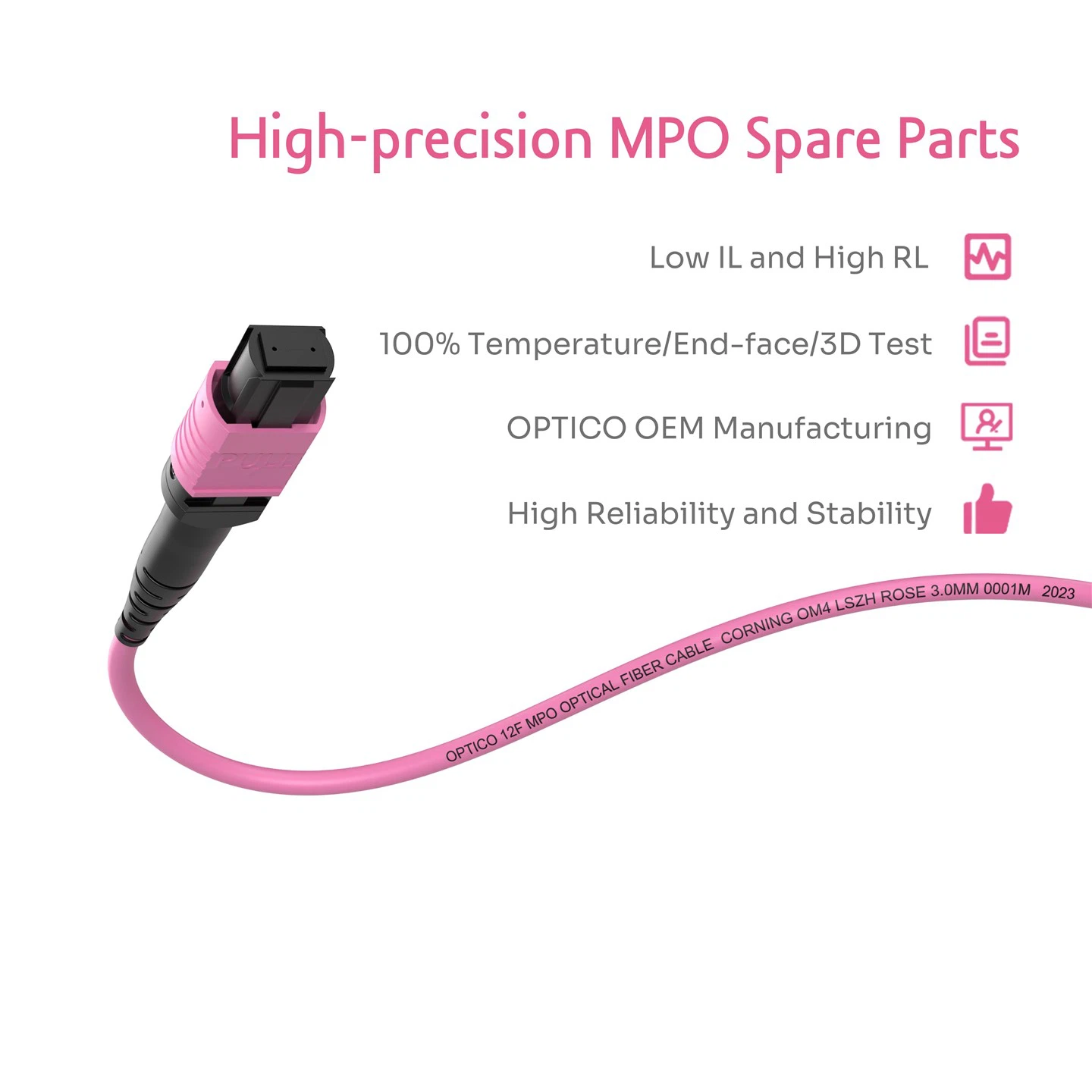

| Connector Type | US Conec MTP Female / Male; MPO Female / Male | ||
| Polarity | Type A /B/C | ||

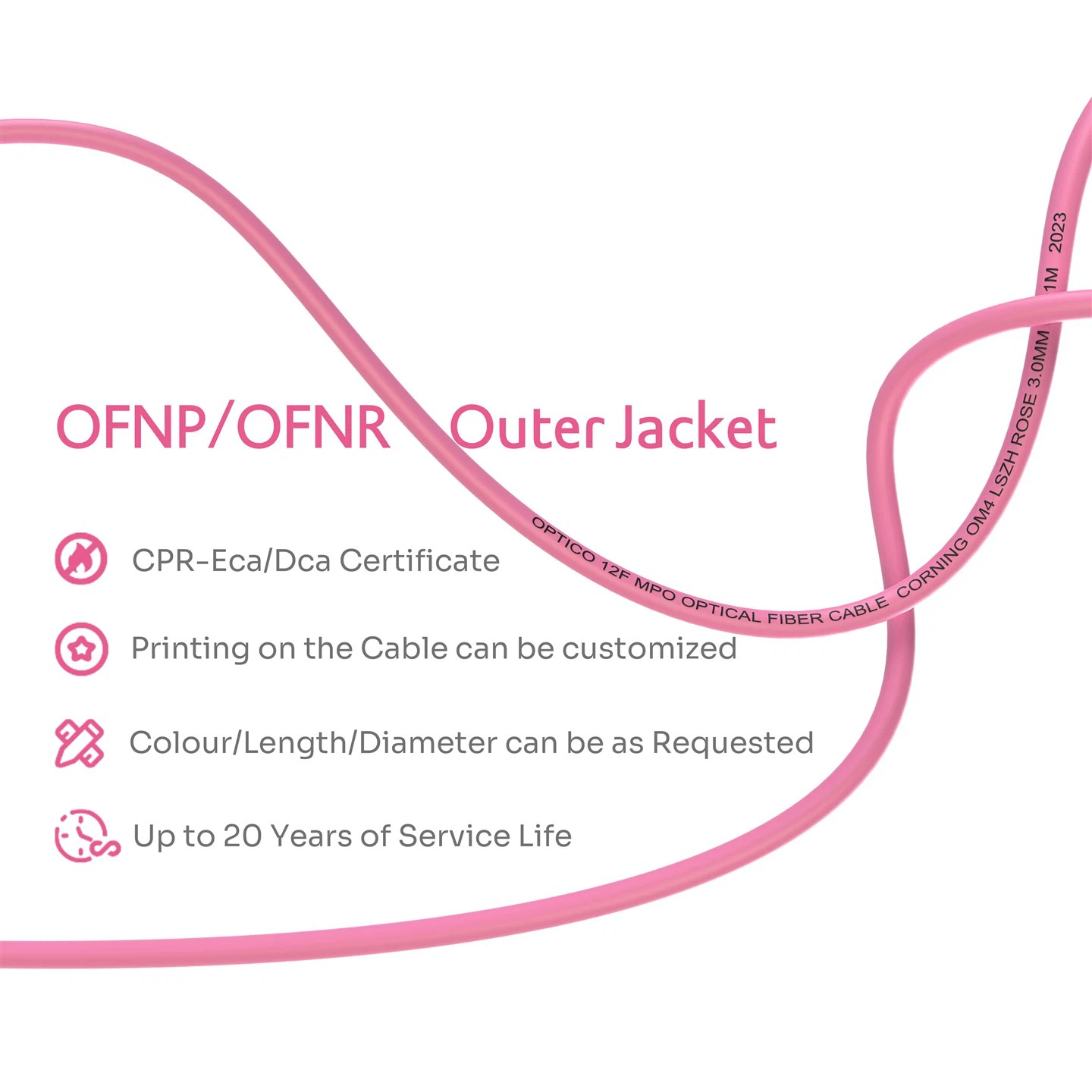

| Cable Jacket | PVC / LSZH / OFNP | ||
| Jacket Colour | Magenta / Custom | ||
| Cable Diameter(mm) | 3.0 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥ 35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -20 ~ +70 | ||
| Storage Temperature(°C) | -40 ~ +85 | ||
Product Features
Ultra-Low Insertion Loss
Typical IL ≤0.35dB, max IL ≤0.5dB, for minimal signal attenuation and stable high-load operation.
High-Density & Fast Deployment
Multi-fiber integrated design saves rack space; pre-terminated plug-and-play for quick installation.
High Bandwidth, Future-Proof Performance
It features a bandwidth of 4700 MHz·km at 850 nm, supporting 10G/40G/100G networks and seamless future upgrades.
Durable & Environmentally Adaptable
Premium-grade jackets (LSZH/OFNP/OFNR) with flame retardancy and flex resistance; 100% tested for compatibility.
Polarity Type
- In MPO/MTP cabling systems, polarity is the key factor to ensure proper connection between the transmit (Tx) and receive (Rx) fibers of devices. The TIA/EIA-568 standard defines three main polarity types: Type A, Type B, and Type C, designed for various data center cabling topologies.
- Incorrect polarity configuration directly leads to link communication failure. For most data center deployments, Type A is the most common choice for trunk cables, which can be flexibly adapted to different devices when used with Type A/B/C patch panels. Type B and Type C are mainly used for specific polarity correction or cascading link scenarios. We recommend planning the overall link polarity scheme based on the polarity configuration of your optical modules and patch panels to ensure stable and reliable signal transmission.
| Polarity | Description | Typical Use |
| Type-A | Straight-through | Legacy systems |
| Type-B | Fiber reversed | Direct 400G/800G module links |
| Type-C | Pairwise flipped | Structured backbone |
Product Applications
High Density Data Center
100% Tested Before Delivery
Our products undergo comprehensive testing before shipment to ensure high-quality delivery to our customers.
IL/RL Test
Polarity Test
End-surface Test
Temperature Test
Certificates
CE
CPR
ISO
RoHS
FAQ
Q:What is The difference between MTP and MPO?
A:MPO is a universal fiber optic connector standard, while MTP is an upgraded version of MPO, featuring a removable housing, adjustable polarity, better dust protection, and compatibility with repeated mating and unmating. Both have the same interface and are compatible.
Hot Tags: mpo mtp trunk cable om4, China, manufacturers, suppliers, factory, wholesale, customized, 24 Core MPO Patch Cord MPO MTP, 24 Cores Fanout Mpo Optical Patch Cord, fiber cable om3, mpo mm fiber patch cord, mpo to st breakout cable, mtp mtp om3 patchcord cable
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
