Product Profile

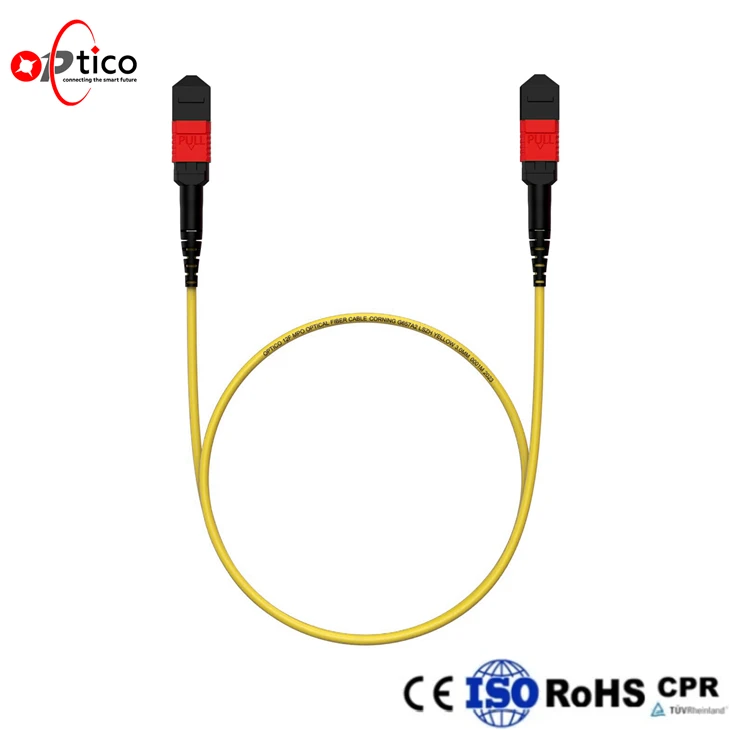

- The 24F AR Coated MPO MTP Test Cable is a non-contact reference cable developed for high-frequency MPO/MTP® testing. Its AR-coated, recessed fiber end-face maintains a controlled air gap, helping reduce back reflection, prevent end-face wear, and improve measurement repeatability during repeated mating.
- Designed for testing 400G, 800G, and 1.6T optical modules and MPO/MTP® assemblies, it helps build a more stable test link and minimize performance fluctuations caused by contamination or mechanical contact. MNC-MNC and MNC-MPO configurations are available for different test setups.
Key Technology Explanation
At the silica-to-air interfaces created by the non-contact geometry, the AR coating helps reduce Fresnel reflection and limit multiple-reflection effects that may contribute to Fabry-Perot interference. This helps control insertion-loss and return-loss behavior at the specified operating wavelength.
Each fiber end-face is recessed below the ferrule surface by approximately 0.6-6 μm. After mating, an air gap of approximately 1.2 μm remains between the opposing fiber end-faces. Because the fiber surfaces remain separated, the interface avoids direct end-face friction and reduces sensitivity to contamination and uneven contact across the 24-fiber array.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 24 | ||
| Fiber Mode | SM (OS2) / MM (OM3 / OM4 / OM5) | ||
| Fiber Brand | CORNING / YOFC | ||
| Connector | US Conec MTP® / MPO | ||
| Connector Brand | US Conec MTP®, Kaihang MPO, TASLO MPO, FSG MPO | ||
| Coating Configuration | MNC-MNC (both ends AR-coated) / MNC-MPO (one end AR-coated) | ||
| Gender | Male (M) / Female (F) | ||
| End-Face Polish | APC / UPC | ||
| Polarity | Type A / B / C | ||
| Cable Jacket | PVC / LSZH / OFNR / OFNP | ||
| Jacket Colour | Yellow (SM) / Aqua (OM3) / Magenta (OM4) / Lime Green (OM5) / Customized | ||
| Cable Diameter (mm) | 3 | ||
| Minimum Bend Radius (mm) | 7.5 | ||
| Boot Colour | Black / Red / Gray / Others | ||
| Fiber End-Face Recess | Customized | ||
| Optical Properties | Parameter | ||
| Insertion Loss (dB) | Typical Measured | Low Loss | Ultra Low Loss |
| Approx. 0.2 dB | ≤0.4 dB | ≤0.35 dB | |
| Return Loss (dB) | UPC/PC ≥50 dB, APC ≥65 dB | ||
| Wavelength (nm) | SM: 1310/1550; MM: 850/1300 | ||
| Tensile Strength (N) | Long Term | Short Term | |
| 70 N | 220 N | ||
| Mating Durability | Insertion Loss Change (ΔIL) | Mating Cycles | |
| ≤0.2 dB | Minimum 500 | ||
| Non-Contact Geometry | Air Gap | Core Recess | |
| Approx. 1.2 µm after mating | 0.6-6 µm | ||
| Operating Temperature (°C) | -20 to +70 | ||
| Storage Temperature (°C) | -40 to +85 | ||
Product Features
Modified Non-Contact End-Face Design
The recessed fiber end-face maintains a controlled air gap between mating fibers, preventing direct fiber contact and reducing scratches and wear during repeated mating.
AR-Coated Optical Interface
The AR coating suppresses back reflection at the fiber-air interface, helping limit Fabry-Perot interference and maintain stable insertion-loss and return-loss measurements during high-frequency testing.
Precision MPO/MTP® Connector
The 24F MNC connector follows the standard MPO/MTP® form factor for precise fiber alignment and compatibility with existing adapters, optical modules, and test equipment. Male, female, APC, and UPC configurations are available.
Durable Outer Jacket
Available with LSZH, OFNR, or OFNP outer jackets, the cable provides mechanical protection, flexibility, and flame-retardant performance for different indoor test environments.
MNC™ vs. Traditional MPO / MTP
| Item | Traditional MPO / MTP | MNC™ Connector |
|---|---|---|
| Connection | Physical contact between most fibers |
Non-contact; air gap maintained between fibers |
| Optical Reflection | Multiple reflections forming Fabry-Perot cavity |
AR coating suppresses reflection; stable signal |
| End-Face Wear Risk | High | Extremely low |
| Contamination Sensitivity | High | Low |
| Required Mating Pressure | High | Low; small pressure is sufficient |
| High-Fiber-Count Performance | Poor; instability increases with fiber count | Excellent; stably supports high fiber counts |
| Service Life | Baseline |
Approximately 10× MPO/MTP; more than 500 mating cycles |
| Impact on DUT | Possible end-face damage | No damage; protects valuable devices under test |
Product Applications
High Density Data Center
100% Tested Before Delivery
Our products undergo comprehensive testing before shipment to ensure high-quality delivery to our customers.
IL/RL Test
Polarity Test
End-surface Test
Temperature Test
Certificates
CE
CPR
(1)-01.png?size=270x0 "ISO")
ISO
RoHS
FAQ
Ordering Process
| 01 Send Inquiry Share the product details, quantity, and delivery requirements. |
→ | 02 Requirement Review Our sales team reviews your inquiry and replies within 24 hours. |
→ | 03 Technical Confirmation Fiber type, connector, polarity, length, jacket, and optical requirements are confirmed. |
→ | 04 Quotation A quotation and estimated production lead time are provided. |
→ | 05 Production and Delivery After confirmation, production and shipment are arranged as agreed. |
Clear requirements help us provide a faster and more accurate service.
Delivery and Shipping
The normal production time is 7-15 days, depending on the product type, specifications, and order quantity.
We can arrange delivery by express, air freight, sea freight, or land transportation. FedEx, DHL, and UPS are available for express shipments.
How We Support You
24-Hour Response
One-to-One Consulting
Technical Support
Quality Assurance
Reliable Production
Transparent Quotation
After-Sales Services
Need Assistance?
If you experience any problem with an OPTICO product after delivery, please contact us by phone, email, or through our online platform.
How We Can Help
Please provide the product model, order number, problem description, and related photos or videos if available. This will help our team assess the issue more efficiently.
Our Commitment
Thank you for choosing OPTICO. We remain committed to providing reliable products and responsive support after your purchase.
