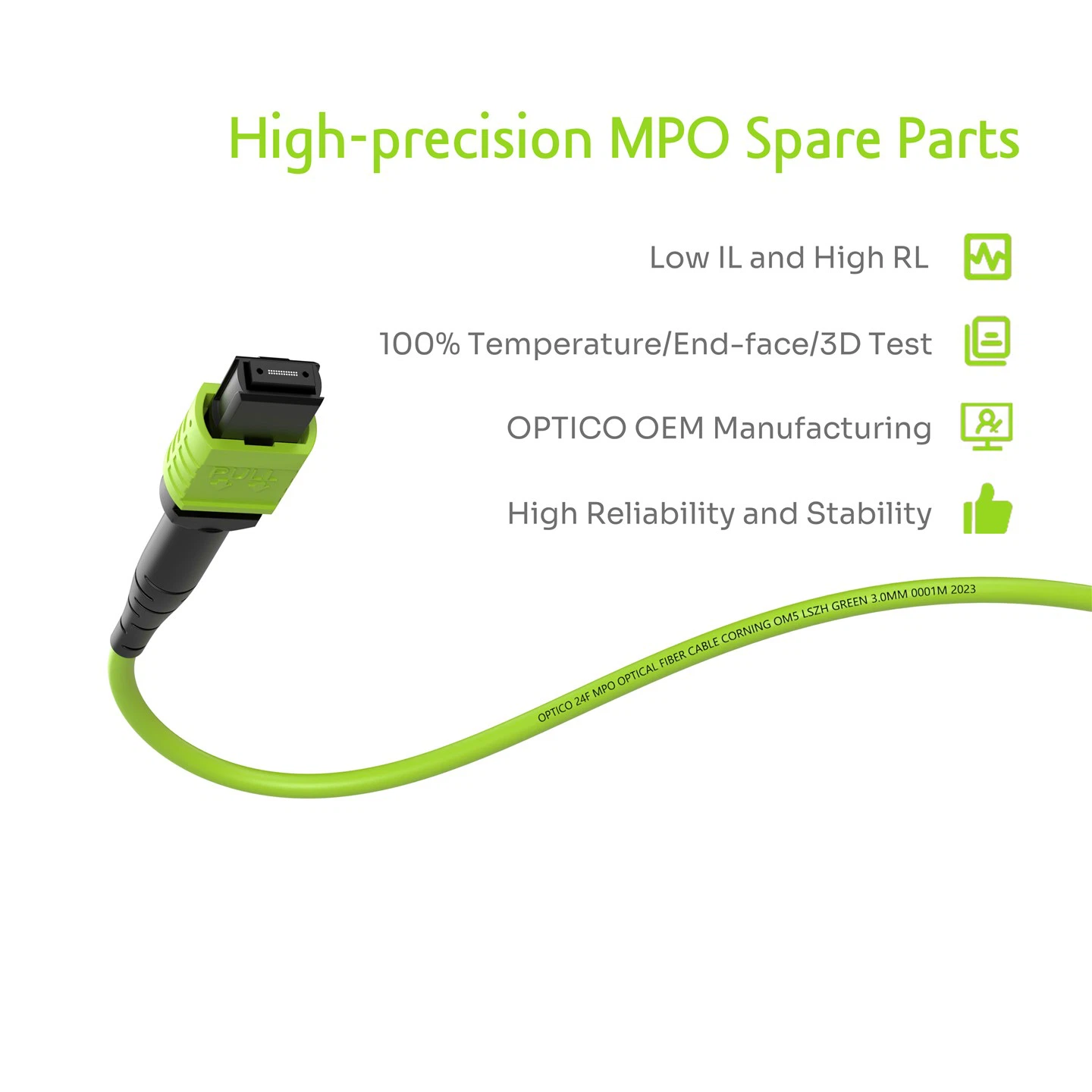

Name: 24F MTP MPO Y Type Cable OM5
Brand: Optico
SKU: 220695526

Product Profile

The 24F MTP MPO Y Type Cable OM5 is used in a variety of applications, including structured cabling, optical switching, parallel optics, and fiber management systems.

The Y branching configuration of 24F MTP MPO Y Type Cable OM5 simplifies fiber routing, enhancing overall cable management and organization within network installations.

24F MTP MPO Y Type Cable OM5 is well-suited for high-density applications, such as those found in data centers, telecommunications systems, and module systems, where efficient fiber routing and high-performance connectivity are essential.

Product Specifications

Physical Properties	Parameter
Fiber Count	24 Fibers
Fiber Mode	OM5

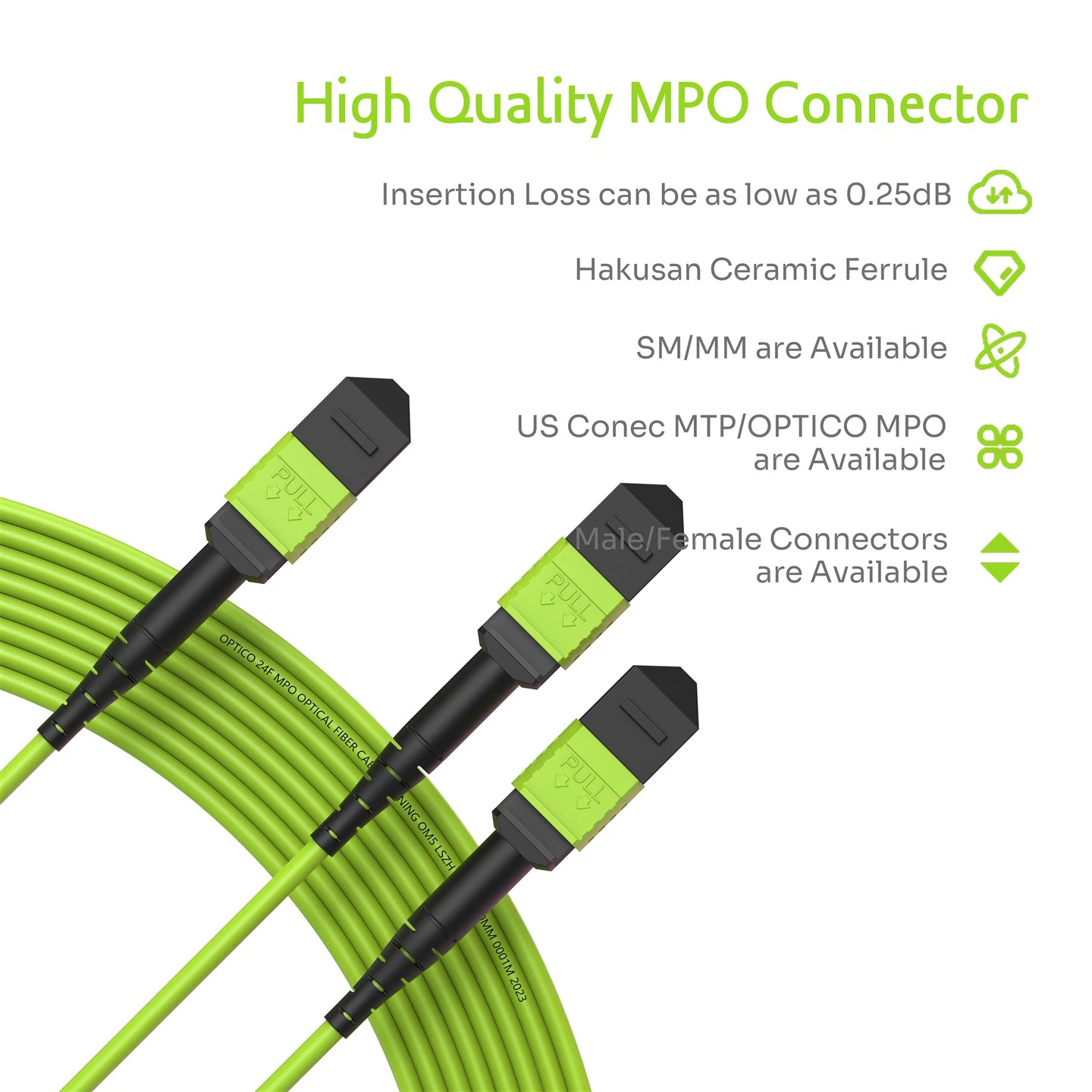

Connector Type	US Conec MTP/OPTICO MPO Male/Female
Polarity	Type A/B/C
Cable Jacket	PVC/LSZH/OFNP
Jacket Colour	Green
Cable Diameter(mm)	3.0
Minimum Bend Radius	7.5
Fiber and Boot Length	Customizable

Optical Properties	Parameter
Insertion Loss(dB)	Standard Loss	Low Loss	Ultra Low Loss
	≤0.5	≤0.35	≤0.25
Return Loss(dB)	≥35
Wavelength(nm)	850/1300
Tensile Strength(N)	Long Term		Short Term
	70		220
Operating Temperature(°C)	-40 ~ +85
Storage Temperature(°C)	-20 ~ +70

Product Features

Quick Fiber Connections

The MTP/MPO connectors can custom a push-pull design, allowing for easy and quick engagement and disengagement. Users can connect or disconnect the connectors with a simple push-and-pull motion, eliminating the need for intricate maneuvers or specialized tools.

High Fiber Capacity & Compact Design

Equipped with a high fiber count of 24F in one cable, the 24F MTP MPO Y Type Cable OM5 assembly is tailored for dense applications. The round mini cable construction of this assembly not only reduces raceway usage but also contributes to a neat and organized setup.

Customization for Varied Needs

The cable assembly supports a range of fiber types, including SM (9/125 G657 A1), MM (50/125 or 62.5/125), OM3, OM4, and OM5. And OPTICO provides IL options for standard loss, low loss and ultra low loss configurations. Polarity, connector brand, fiber brand, cable length and printing etc., can also be customized.

Rigorous Testing and Industry Standard

Before reaching the end-user, each cable undergoes rigorous testing, including 100% testing of insertion loss, back reflection, and interferometry. This commitment to quality ensures that the insertion loss does not exceed 0.35 dB. All MTP/MPO cable assemblies adhere to TIA/EIA and IEC intermateability standards.

Applications

High Density Data Center

Backbone Network

Optical Module Connection

Our Brand Confidence Comes From A Strong Production Team

100% Strict Performance Tests

IL/RL Test

3D Test

End Face Test

Temperature Test

Certificates

CE

CPR

ISO

RoHS

How We Can Stand By You

Quick Response within 24 Hours

One-to-one Consulting Service

Professional Technical Team Support

Super Strict Quality Control

Huge Production Capacity

Never Change Price Arbitrarily

After-sales Services

When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via:

Phone: +86-755-33532578

Email: sales@fiberopticom.com

WhatsApp: 8619129420326

FAQ

Q: How does the Y-shaped cable configuration contribute to efficient fiber routing?

A: The Y-shaped configuration provides optimized pathways for the fiber optic cables, allowing them to split into two separate branches. This design is particularly advantageous in scenarios where a single cable needs to be routed to multiple destinations or devices. By branching into two separate paths, the Y-shaped configuration reduces cable congestion, especially in environments with high-density connections.

Q: Can I choose between male and female MPO MTP connectors for this cable assembly?

A: Yes. Customer can tailor the cable assembly to the specific requirements of their networking setup. Male connectors are commonly used at the termination points within network equipment, such as switches, routers, or transceivers. They are also prevalent in breakout modules where multiple fibers need to be distributed to different devices. And female connectors are typically found at the end of the fiber optic cables. They are mated with male connectors on the equipment side, creating a secure connection. Female connectors are commonly used in trunk cables, harnesses, or breakout cables where the connection needs to be established between equipment and cabling.

Q: What fire resistance features does the cable's jacket possess?

A: If you need fiber optic cable material with fire resistance, we recommend LSZH or ONFP outer jacket. LSZH jackets are known for their fire resistance. In the event of a fire, these jackets produce minimal smoke and release no halogenated gases. On the other hand, OFNP jackets are flame-resistant, they may emit moderate levels of smoke in the event of a fire. However, the design ensures that the smoke produced is not toxic and complies with safety regulations for plenum spaces. LSZH jackets are suitable for general indoor installations, while OFNP jackets are ideal for plenum spaces.
