Product Profile

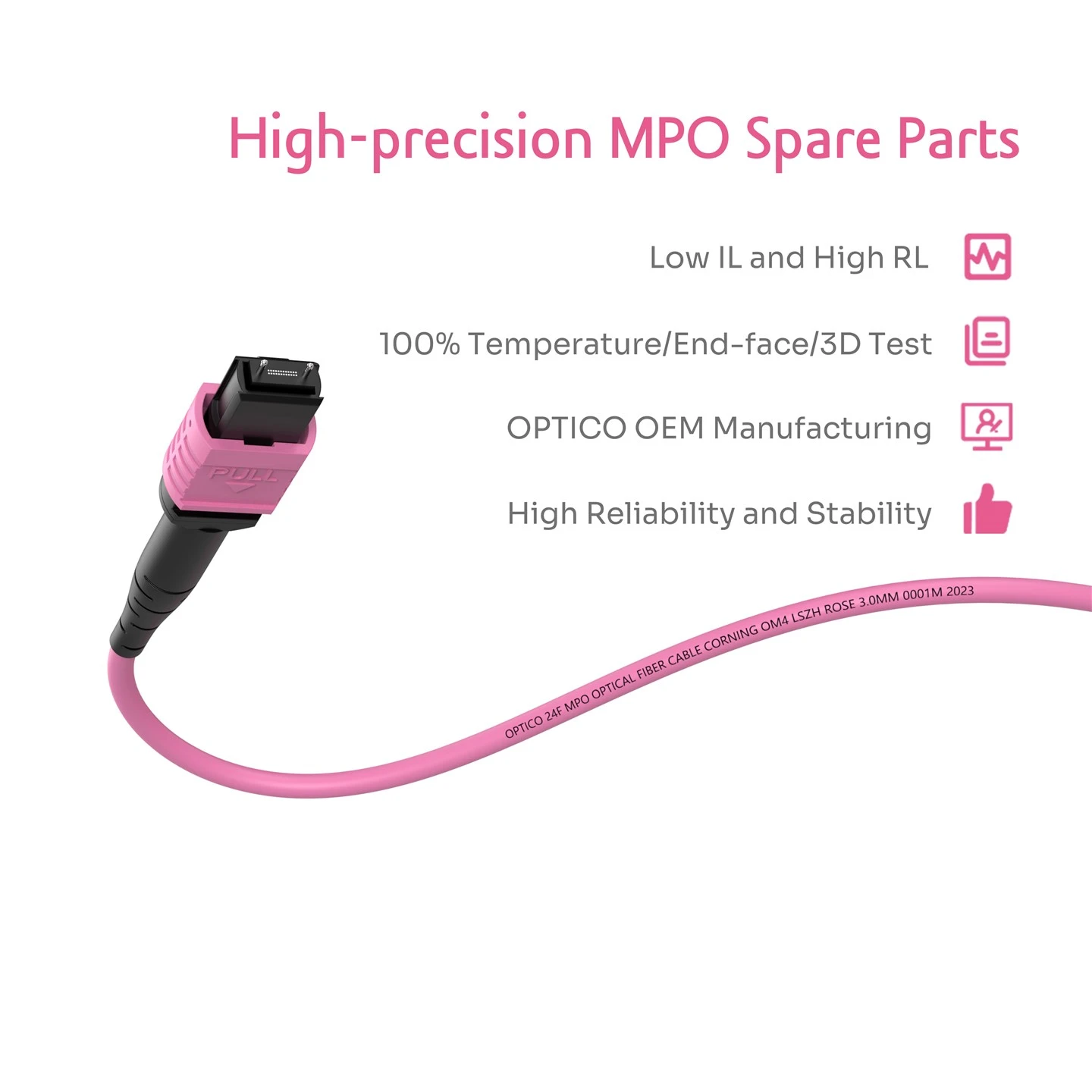

The 24F MPO-MPO Male Trunk Cable OM4 is a high-performance optical fiber solution designed to meet the demands of modern data centers and high-speed networking applications. With exceptional speed, flexibility, and reliability, this cable ensures seamless data transmission in even the most demanding environments.
24F MPO-MPO Male Trunk Cable OM4 has an insertion loss of 0.35 to 0.7dB, a multimode return loss of over 30dB, and a single-mode return loss of over 60 dB.
24F MTP trunk cable have excellent signal reflection characteristics, minimizing signal attenuation and ensuring reliable transmission.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | MPO Male |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Magenta |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
High Fiber Count for Scalability
With 24 optical fibers, this 24F MPO-MPO Male Trunk Cable OM4 allows for seamless network expansion, providing a cost-effective solution for high-density connectivity.
Space and Cost Efficiency
With the ability to achieve up to 24 times the density of MPO connectors, the 24F MTP trunk cable significantly saves space and reduces costs.
Multiple Insertion Loss Options
OPTICO provides the flexibility to choose from three different insertion loss levels for customers to optimize performance based on their specific network requirements.
Ease of Installation and Management
The 24F MTP trunk cable is factory pre-terminated and integrated push-pull tubing to streamline installation, saving time and effort in cable management.
applications
High Density Data Center
Backbone Network
Communication Rooms
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
10G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Utilize a high-performance switch with an SFP-10G-SR 850nm 150m Optical Transceiver Module.
b. Fiber Connection Method
Connect equipment using LC UPC to LC UPC Duplex OM4 Multimode Patch Cord.
c. Fiber Cabling Management:
Incorporate a 24 Core MPO Module Cassette, and utilize a 1U high-density fiber enclosure. This setup optimizes fiber management and minimizes cable clutter.
2. Core to Access Connection
Employ a 24F MPO-MPO Female Trunk Cable OM3 for the core-to-access connections.
3. Access Cabling Solution
This follows the same specifications as the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
