Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24f mpo-mpo male trunk cable os2 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

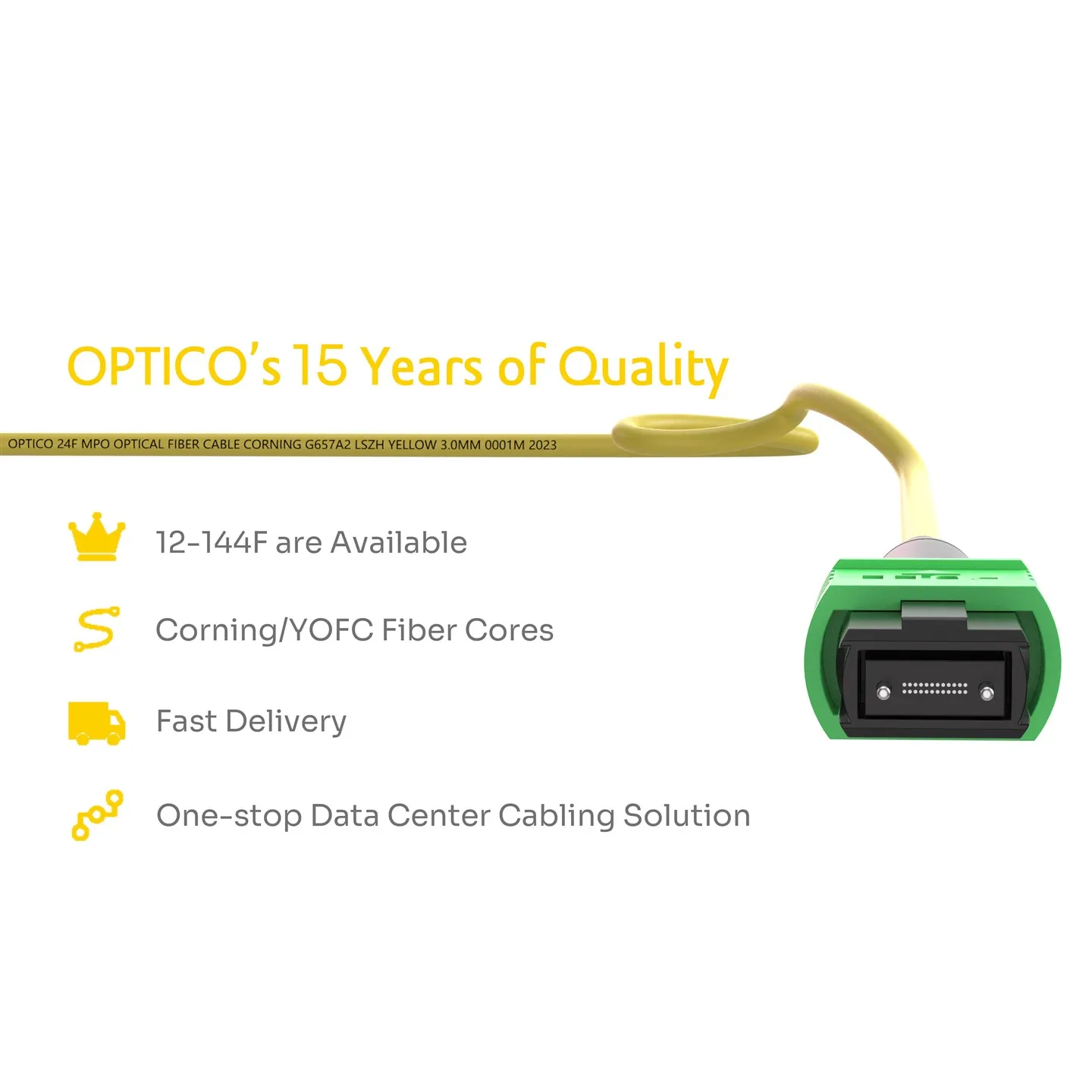

The 24F MPO-MPO Male Trunk Cable OS2 is a high-performance optical fiber cable designed to meet the demanding requirements of modern data centers and high-speed networking applications. This cable offers exceptional data transmission capabilities, optimal signal integrity, and robust construction, making it the ideal choice for reliable and high-speed data connectivity.
The fan-out connector of the 24F MTP Trunk Cable is designed to withstand harsh working conditions and features wide temperature tolerance, high tensile strength, and minimum bend radius.
Durability and reliability are ensured even in demanding installation environments.
MTP/MPO patch cords feature innovative MPO (Multi-Fiber Push-On) connector technology, representing the pinnacle of high-density fiber connection solutions.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | MPO Male |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Maximum Fiber Utilization
With 24 fibers in a single cable, this 24F MPO-MPO Male Trunk Cable OS2 offers maximum fiber utilization, making it a cost-effective choice for high-density connectivity solutions.
Long-Distance Connectivity
24F MTP Trunk Cable enable reliable long-distance data transmission, making it ideal for interconnecting data centers, connecting remote offices, or extending network reach.
Multiple Insertion Loss Options
OPTICO provides the flexibility to choose from three different insertion loss levels for customers to optimize performance based on their specific network requirements.
Robust and Durable
The 24F MPO-MPO Male Trunk Cable OS2 is made of high quality materials and construction with tensile strengths up to 70N (long term) and 220N (short term) to ensure outstanding performance and durability even in harsh data center environments for years to come.
Applications
High Density Data Center
Backbone Network
Communication Rooms
Connectivity Solutions
10G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment:
In the core connect, a Switch is Equipped with the 10G SFP+ 300m 850nm Optical Transceiver Module to send and receive signals. These modules enable data transmission speeds of up to 10 Gbps, with a maximum transmission distance of 300 meters, making them suitable for data centers and large network environments.
b. Fiber Connection Method：
Connectivity is established using of LC UPC to LC UPC Duplex OM4 Multimode Patch Cord.
c. Fiber Cabling Management:
A 24F 2×12F MPO-6LC MPO Cassette, containing 24 LC duplex modules, is utilized along with a 1U high-density fiber enclosure. This setup optimizes fiber management and minimizes cable clutter.
2. Core to Access Connection:
A 24F MPO-MPO Female Trunk Cable can be used to contact the core connection and access cabling.
3. Access Cabling Solution:
The same connection approach of the core can also be applied to the access cabling solution, ensuring scalability and consistency throughout the network.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
