Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24f mpo-mpo male trunk cable om3 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product profile

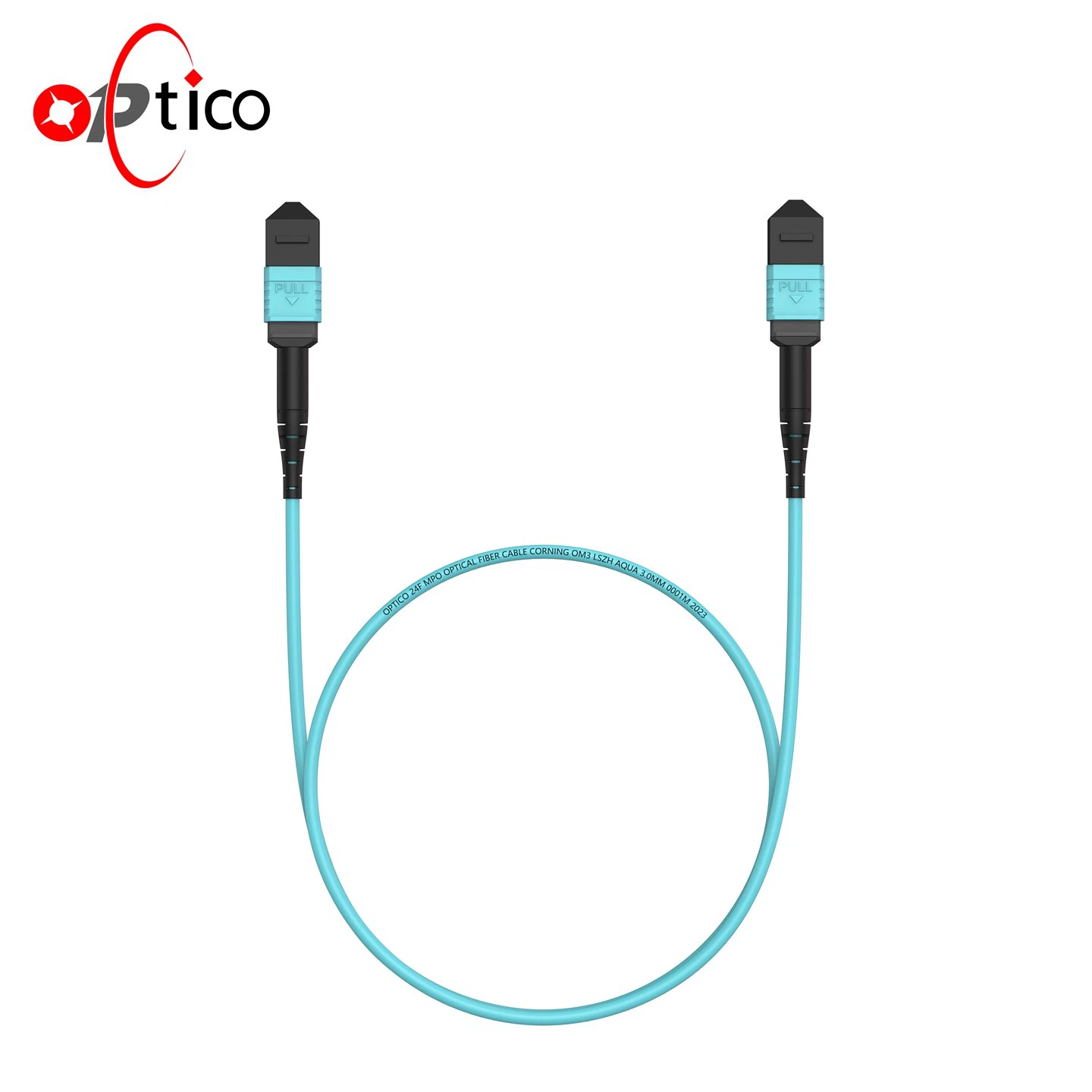

The 24F MPO-MPO Male Trunk Cable OM3 is an advanced optical fiber solution tailored to meet the demands of high-speed data centers and networking environments. With optimized performance, flexibility, and durability, this cable is engineered to deliver exceptional results in data transmission applications.
The fan-out connector of the 24F MTP Trunk Cable is designed to withstand harsh working conditions and features wide temperature tolerance, high tensile strength, and minimum bend radius.
Durability and reliability are ensured even in demanding installation environments.
MTP/MPO patch cords feature innovative MPO (Multi-Fiber Push-On) connector technology, representing the pinnacle of high-density fiber connection solutions.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers |
| Fiber Mode |
OM3 |
| Connector Type | MPO Male |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Aqua |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
High Fiber Count for Scalability
The 24-fiber configuration of this MPO trunk cable allows for future network expansion, providing a cost-effective solution for high-density connectivity.
Simple and Cost-effective Migration
With the ability to achieve up to 24 times the density of SC connectors, the 24F MPO-MPO Male Trunk Cable OM3 significantly saves space and reduces costs.
Multiple Insertion Loss Options
OPTICO provides the flexibility to choose from three different insertion loss levels for customers to optimize performance based on their specific network requirements.
Ease of Installation and Management
The 24F MPO-MPO Male Trunk Cable OM3 is factory pre-terminated and integrated push-pull tubing to streamline installation, saving time and effort in cable management.
Applications
High Density Data Center
Backbone Network
Optical Module Direct Connection
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
40G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Equip with a high-performance switch and a 40G BASE-SR4 QSFP+ 850nm 150m Optical Transceiver Module to achieve 40 Gb/s.
b. Fiber Connection Method
Use LC UPC to LC UPC Duplex OM5 Multimode Patch Cords or 12-Core MTP Patch Cords for equipment connections.
c. Fiber Cabling Management:
Use 24 Core MPO Module Cassette, and High-Density 1U Rack Mount Enclosure to store and organize cables to avoid clutter.
2. Core to Access Connection: Use 24F MPO-MPO Female Trunk Cable OM3 to connect core and access points.
3. Access Cabling Solution:
a. Core Connection Equipment: Equip with a high-performance switch and 10G SFP+ Optical Transceiver Module.
b. Fiber Connection Method
Utilize LC UPC to LC UPC Duplex Multimode Patch Cord or MPO-LC Multimode OM4 Fanout Fiber Optic Patch Cable to connect Equipment.
c. Fiber Cabling Management:
Use 24 Core MPO Module Cassette, and High-Density 1U Rack Mount Enclosure Unloaded Sliding Drawer to store and organize cables to avoid clutter.
or 24F 2×12F MPO-6LC MPO Cassette OM3 Quad LC
and High-Density 1U Rack Mount Enclosure Unloaded Sliding Drawer to store and organize cables to avoid clutter.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
