Product Profile
The 24F MPO Trunk Cable OM5 Female 2x12 is a premium optical fiber solution, thoughtfully designed to meet the exacting demands of today's data centers, telecommunications networks, and corporate infrastructures. This cable's outstanding attributes and carefully planned construction establish its vital role in high-density cabling, ensuring trustworthy and efficient data transfer.
The US Conec connector used in the patch cables is rugged and has good inter-plugging performance and can typically be plugged and unplugged more than 1,000 times.
The plug-and-play design of the MPO patch cords facilitates quick and easy installation, saving valuable time and effort during network setup or reconfiguration.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers(2×12) |
| Fiber Mode |
OM5 |
| Connector Type | 2 MPO Female |
| Polarity | Type A/B/C |

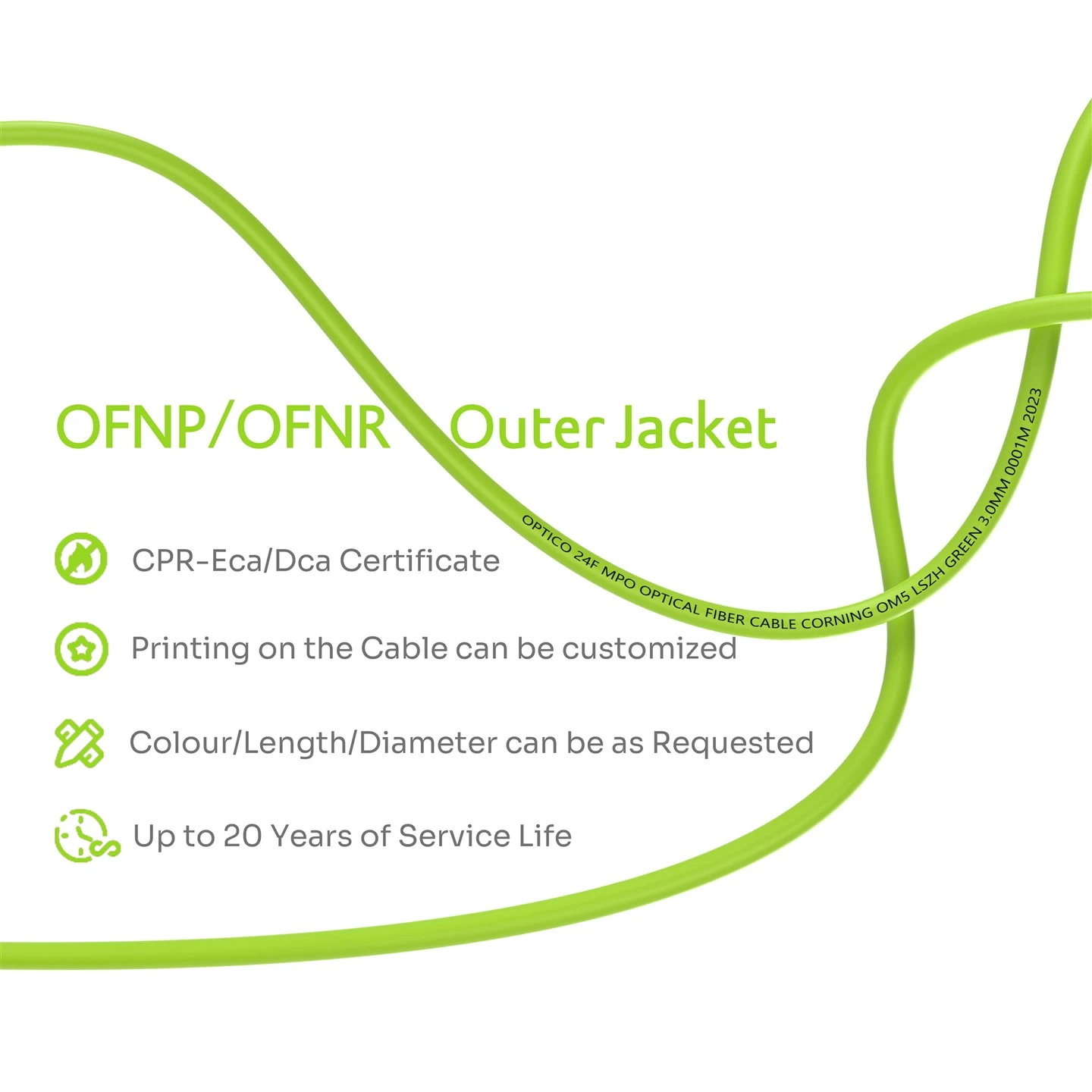

| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Lime Green |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius(mm) | 7.5 |
| Fiber and Boot Length |
Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
This trunk cable can accommodate an impressive 24 optical fibers, making it an adaptable and high-capacity choice for effectively managing numerous connections, particularly within the dynamic environments of data centers.
Exceptional Performance
Patch cords are designed to withstand harsh conditions with an effective temperature range of -25°C to +70°C and a storage range of -40°C to +85°C.
Quick Installation and Configuration
The plug-and-play design of the MPO patch cord facilitates quick and easy installation, saving valuable time and effort during network setup or reconfiguration.
Effortless Installation and Management
The 24F MPO Trunk Cable OM5 Female 2×12 is supplied factory pre-terminated and includes integrated push-pull tubing, simplifying installation and reducing the time and effort required for cable management.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Equip with a high-performance switch and 25G SFP28 Optical Transceiver Module, the data transmission rate can reach 25.78 Gb/s.
b. Fiber Connection Method:
Utilize 12 Cores MPO-LC Fanout Fiber Optic Cable or MTP Patch Cord 12 Cores to connect Equipment.
c. Fiber Cabling Management:
Use 12 Port MTP Panel,and High-Density 1U Rack Mount Enclosure Unloaded Sliding Drawer to store and organize cables to avoid clutter.
2. Core to Access Connection
Apply 24F 2×12 MPO Trunk Cable OM3 Female or 24F MPO-MPO Female Trunk Cable OS2 to connect the core and access.
3. Access Cabling Solution
Same as the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
