Product Profile
MPO Breakout Cable uses Corning MMF multimode 50/125 fiber.
The breakout end of MPO Breakout Cable has 12 LC/UPC connectors and is numbered according to the corresponding optical fiber position in the MPO/MTP connector.
MPO Breakout Cable Connectors are UPC(Ultra Physical Contact) polished for better surface finish and less back reflection.
Through the cross-type pre-connected MPO/MTP technology, one end of MPO Breakout Cable is connected to 40G/100G, the other end is connected to 10G, and a 40G/100G is decomposed into multiple 10G, achieving the ideal transmission of a high rate port (MTP/MPO) to a low rate port (LC/SC/FC).
The MPO Breakout Cable/MTP-LC fiber branch can be used in many existing data center environments, such as between switches, rack-mount panels, and main distribution patch panels, due to its large core number, compact design, and small size.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | Connector A: US Conec MTP Female/Male; MPO Female/Male | ||
| Connector B: LC/SC/FC/ST | |||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Low Insertion Loss and High Return Loss
MPO Breakout Cable boasts an exceptionally low insertion loss, reaching Insertion loss as low as 0.35dB (standard) and 0.7dB (maximum), ensuring a consistently stable data transmission.
100% Tested High Quality Products
Reliability is 100% tested, MPO Breakout Cable is a combination of high-quality components and manufacturing quality control guarantees products to the highest standards.
High Density Ensure High Performance
The outer jacket of MPO Breakout Cable is designed with anti-UV, waterproof, flame-retardant, and electromagnetic interference-resistant characteristics.
Easy Installation Save Cost
The rapid deployment of factory-terminated modular systems contributes to time savings during installation and reconfiguration, especially in scenarios involving movement and change.
MPO Breakout Cable provides a neat, high-density method to achieve high-density switch port replication, which can reduce the risk of switch port damage or error.
Corning/YOFC Fiber
CCTC Ceramic ferrule
Insensitive to Bending
Details of Branch
Our Brand Confidence Comes from a Strong Production Team
applications
CATV
FTTH
LANs
WANs
strictly tested by our production line
IL/RL Test
3D Test
Temperature Test
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
10G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment:
In the core connect, a Switch is Equipped with the 10G SFP+ 300m 850nm Optical Transceiver Module to send and receive signals. These modules enable data transmission speeds of up to 10 Gbps, with a maximum transmission distance of 300 meters, making them suitable for data centers and large network environments.
b. Fiber Connection Method：
Connectivity is established using of LC UPC to LC UPC Duplex OM4 Multimode Patch Cord or MTP LC 12F Bundle Patch Cable.
c. Fiber Cabling Management:
24F 2×12F MPO-6LC MPO Cassette, containing 24 LC duplex modules, is utilized along with a 1U high-density fiber enclosure. This setup optimizes fiber management and minimizes cable clutter.
2. Core to Access Connection:
16F MPO-MPO Female Trunk Cable OM3 or 12F MTP MPO Fiber Cable can be used to contact the core connection and access cabling.
3. Access Cabling Solution:
The same connection approach of the core can also be applied to the access cabling solution, ensuring scalability and consistency throughout the network.
certificates
CE
CPR
ISO
ROHS

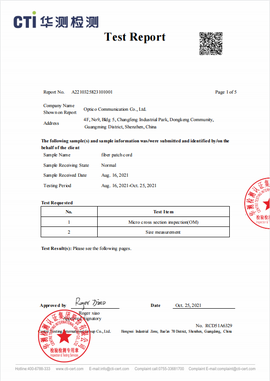

full ranges of reliablity tests from third-party lab
Delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
how we can stand by you
after-sales services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
