Product Profile

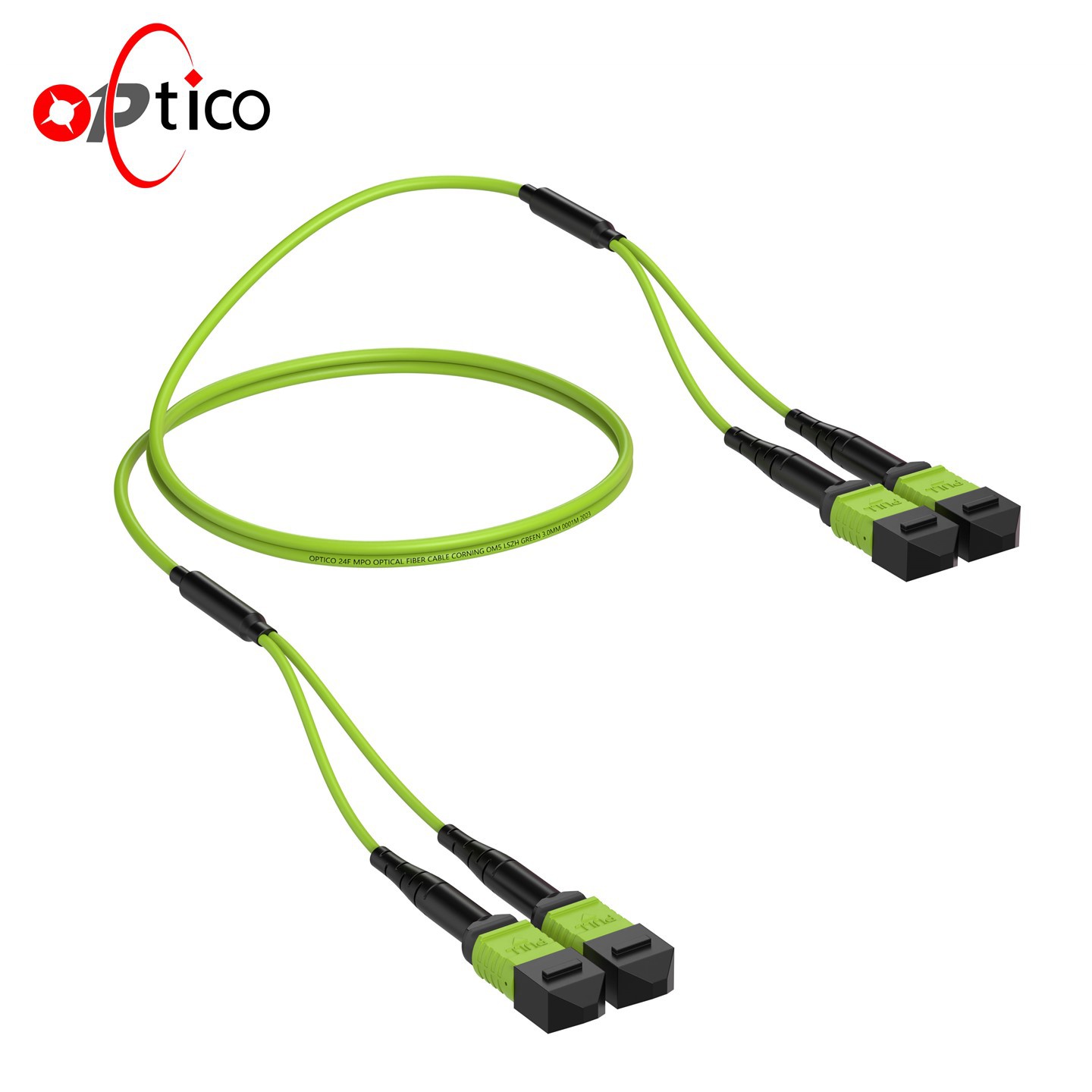

The 24F MPO Trunk Cable OM5 Male 2×12 is your straightforward solution for efficient and versatile network connectivity. Its simplicity, speed, and reliability make it an ideal choice for a wide range of networking applications.
MPO or MTP fiber patch cables are widely used in high-density cabling environments such as data centers. Traditional tightly buffered multi-fiber cables require a skilled technician to end each fiber individually. MTP breakout cable carrying multiple optical fibers are pre-terminated. Factory pre-terminated MPO/MTP typically have 8, 12, 16 or 24 fiber arrays in one single connector.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers(2×12) |
| Fiber Mode |
OM5 |
| Connector Type | MPO Male |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Lime Green |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
The MTP/MPO connectors can custom a push-pull design, allowing for easy and quick engagement and disengagement. Users can connect or disconnect the connectors with a simple push-and-pull motion, eliminating the need for intricate maneuvers or specialized tools.
Equipped with a high fiber count of 24F in one cable, the 24F MPO Trunk Cable OM5 Male 2×12 assembly is tailored for dense applications. The MTP breakout cable construction of this assembly not only reduces raceway usage but also contributes to a neat and organized setup.
The MTP breakout cable assembly supports a range of fiber types, including SM (9/125 G657 A1), MM (50/125 or 62.5/125), OM3, OM4, and OM5.
OPTICO provides IL options for standard loss, low loss, and ultra-low loss configurations. Polarity, connector brand, fiber brand, cable length and printing, etc., can also be customized.
Before reaching the end-user, each cable undergoes rigorous testing, including 100% testing of insertion loss, back reflection, and interferometry. This commitment to quality ensures that the insertion loss does not exceed 0.35 dB. All MTP/MPO cable assemblies adhere to TIA/EIA and IEC intermateability standards.
Applications
High Density Data Center
Backbone Network
Communication Rooms
Connectivity Solutions
100G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment: Deploy a high-performance switch and 100G QSFP28 Optical Transceiver Module for 100Gb/s speeds.
For short distances: use 100G-SR4-S 100m Optical Transceiver Module.
For long-distance: use 100G Fiber Optical SFP Transceiver 2KM, 100G LR4 QSFP 10km Optical Transceiver Module, or 100G QSFP28 Module Transceiver 40km.
b. Fiber Connection Method: Use MTP Patch Cord Multimode 12 Cores or LC UPC OM5 Multimode Duplex Fiber Patch Cord for equipment connections.
c. Fiber Cabling Management:
Implement MTP Horizontal Fiber Optic Adapter Panel and high-density 1U rack mount enclosure with an unloaded sliding drawer for organized cable storage.
Or use MTP-24 Cassette, 1U Fiber Patch Panel With 24 LC Quad, and high-density 1U rack mount enclosure for organized cable storage.
2. Core to Access Connection: Connect using a 24F MPO-MPO Female Trunk Cable OM3 between the core and access.
3. Access Cabling Solution: Mirrors the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
