Product Profile

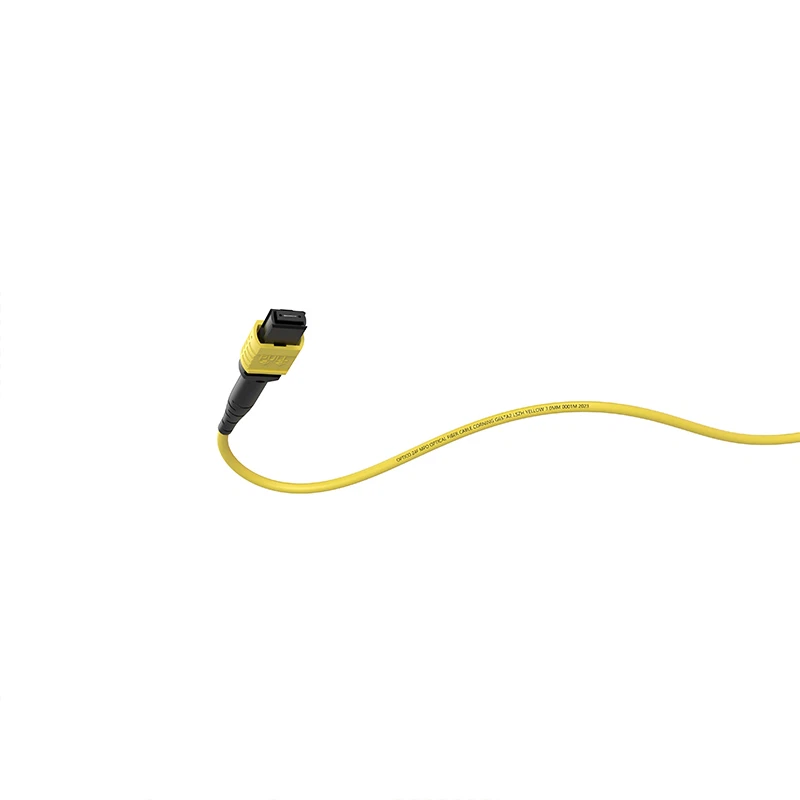

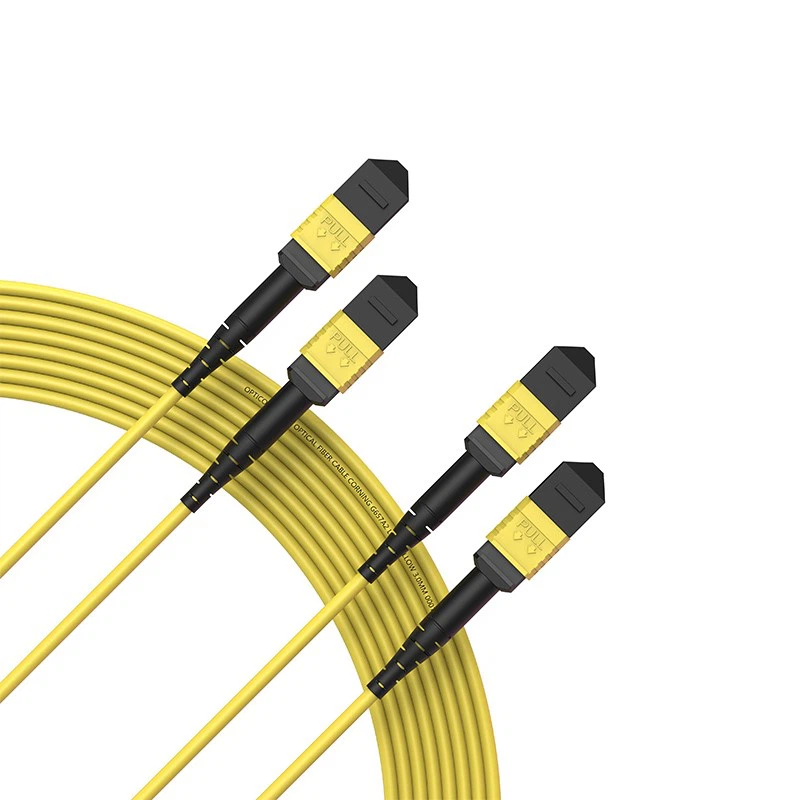

The 24F MPO Trunk Cable SM MM Male 2×12 Customizable is tailored to meet the diverse requirements of modern data centers, telecommunications networks, and enterprises. With a focus on performance, flexibility, and customization, this trunk cable is the perfect solution for high-density and mission-critical applications.
OPTICO's MTP/MPO high-density cabling solution is the ideal choice for the next generation of 100G/200G/400G/800G data centers. MTP/MPO trunk cables, MTP/MPO conversion cables, and MTP/MPO to LC fan-out cables are all factory terminated and completely tested, offering plug-and-play compatibility with OPTICO MTP/MPO fiber cassettes. The precision-manufactured US Conec MTP/OPTICO MPO connectors in the fiber optic cables ensure outstanding reliability and ultra-low insertion loss of 0.25dB. All our products are RoHS/ISO/CE/CPR/FCC compliant.
Our solution not only simplifies cable management but also achieves a structured cabling system in data centers through high-density fiber patch panels and enclosures. We also provide support for custom solutions and OEM services for greater flexibility and scalability to meet your various cabling requirements.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers(2×12) |
| Fiber Mode |
SM:OS2; MM:OM3/OM4/OM5 |
| Connector Type | MPO Male |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius(mm) | 7.5 |
| Fiber and Boot Length |
Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | SM: 1310/1550; MM: 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
MPO patch cord cater to diverse needs by offering a range of fiber and cable options. They are available in Single Mode (SM), OM3, OM4, and OM5 variants. The standardized color-coding simplifies identification: SM in yellow, OM3 in aqua, OM4 in rose (with purple available), and OM5 in green. And the standardized color-coding simplifies identification: SM in yellow, OM3 in aqua, OM4 in rose (with purple available), and OM5 in green.
The factory-terminated nature of MPO patch cords significantly reduces installation and reconfiguration time during moves, adds, and changes. Configurable length assemblies further contribute to efficient cable management by minimizing slack and patch field congestion.
Premium MPO connectors with low loss and bend-insensitive fiber contribute to optimized performance of the MPO patch cord, reducing signal losses and minimizing power penalties. Each MPO assembly undergoes 100% factory testing, ensuring reliable connectivity that adheres to TIA 568 and IEC 61754 standards.
MPO patch cords future-proof networks by supporting next-generation speeds. Their modular connectivity facilitates smooth migration plans for evolving network requirements, accommodating speeds like 400G and 800G.
Applications
High Density Data Center
Backbone Network
Communication Rooms
Connectivity Solutions
10G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Utilize a high-performance switch with an SFP-10G-SR 850nm 150m Optical Transceiver Module.
b. Fiber Connection Method
Connect equipment using LC UPC to LC UPC Duplex OM4 Multimode Patch Cord.
c. Fiber Cabling Management:
Incorporate a 24 Core MPO Module Cassette, and utilize a 1U high-density fiber enclosure. This setup optimizes fiber management and minimizes cable clutter.
2. Core to Access Connection
Employ a 24F MPO-MPO Female Trunk Cable OM3 for the core-to-access connections.
3. Access Cabling Solution
This follows the same specifications as the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
