Product Profile

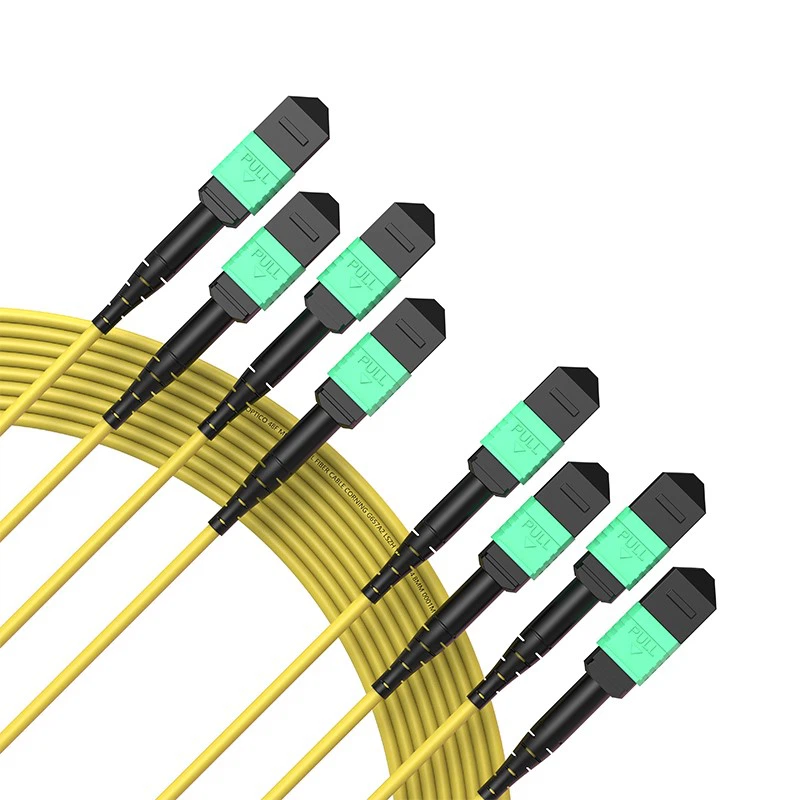

The 72F MPO Fiber Optic Cable OS2 provides a rapid solution for multiple connections, especially for applications such as data centers that require high density, rapid deployment, and high data performance.

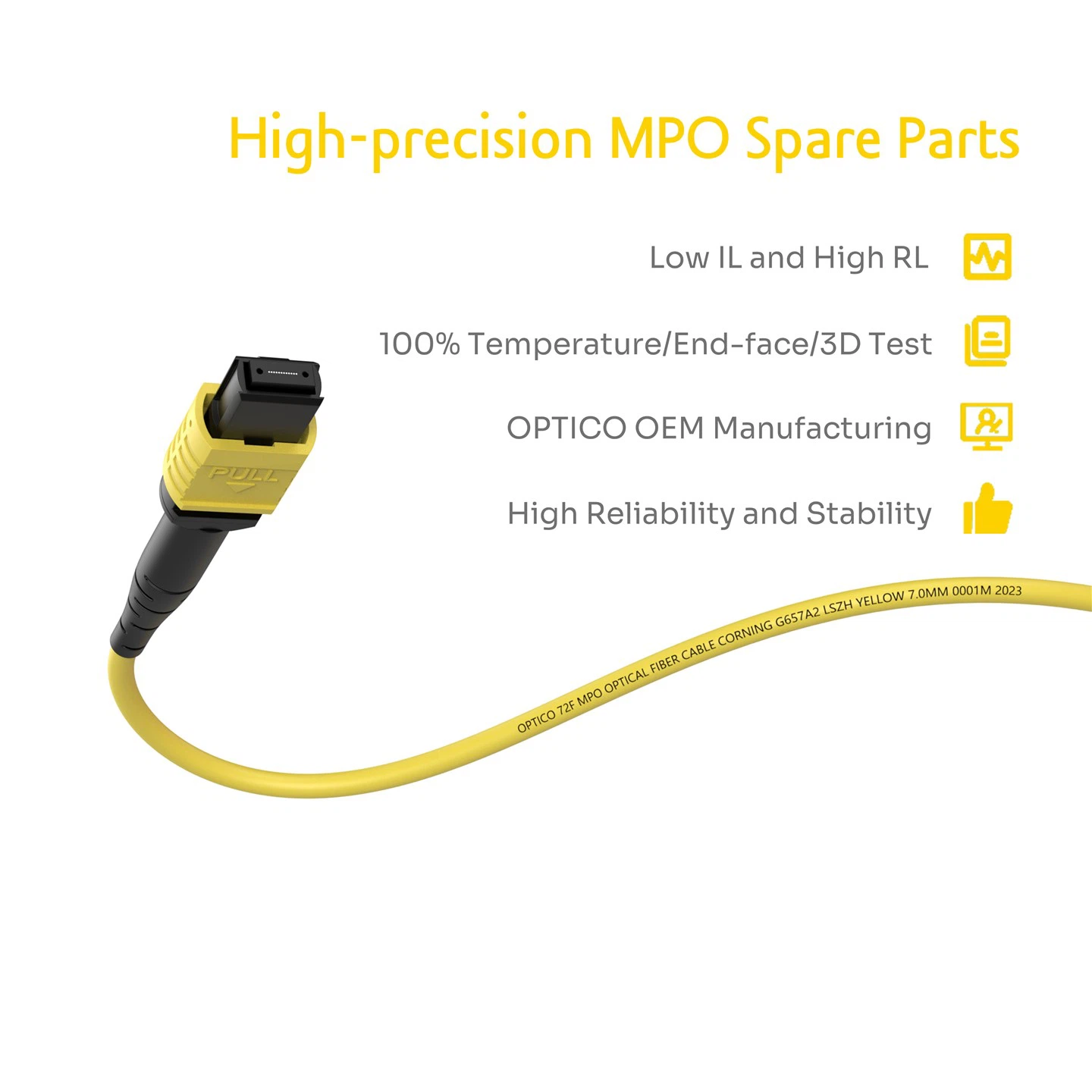

OPTICO's high-precision MTP/MPO components are factory-tested and pre-terminated for ultra-low losses, high stability and reliability.
We are committed to providing high-quality customized optical fiber solutions, such as fiber counts, fiber mode, connector type, fiber cable length, fiber cable printing, fiber cable color, etc., to meet the specific needs of different customers.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 72 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 7.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Maximizing Efficiency with Pre-connector Technology
One of the standout features of this trunk cable is its pre-connectorized design. Crafted with LSZH jacketed micro cables, each assembly comes terminated with MTP/MPO connectors at both ends, offering a hassle-free plug-and-play experience.
Optimized for Performance and Flexibility

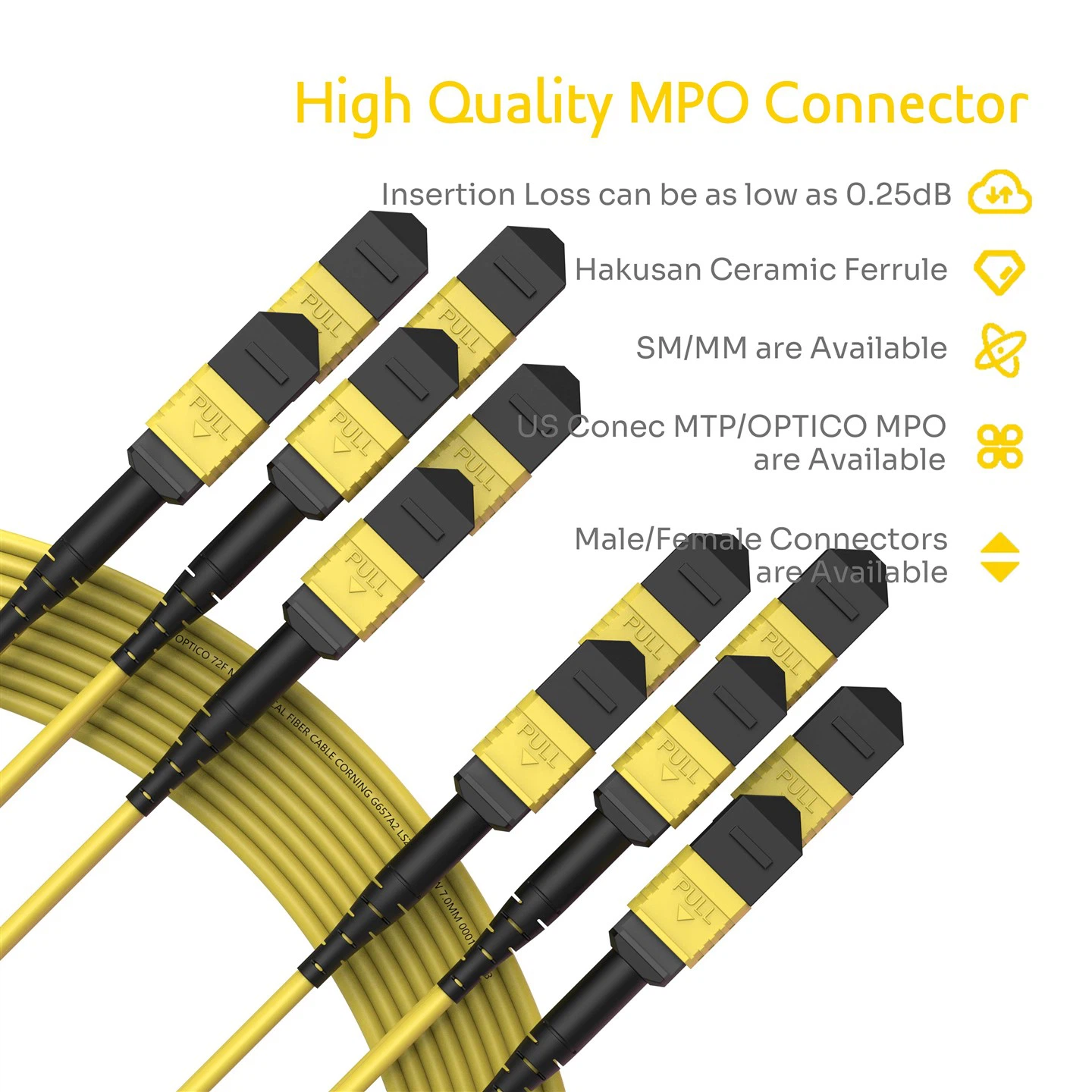

Three types of insertion loss are available: standard loss(0.5dB), low loss(0.35dB) and ultra -low loss(0.25dB). The ultra-low loss connector ensures reliable signal transmission, supporting higher-speed Ethernet and Fibre Channel applications, particularly in the case of single-mode fibers.
Tailored to Your Specifications
With standard lengths of 5, 10, and 25 meters readily available, the cables can be tailored to specific requirements. Custom lengths can also be requested. Available in OM3, OM4, OM5, and single-mode (OS2) fiber variants. And OPTICO offer options for Polarity A, B, and C.
Rigorous Testing for Reliability
These 72F MPO Fiber Optic Cable OS2 undergo 100% in-house testing, including IL/RL test, 3D test, end-face test and temperature test. The meticulous testing process is documented in detailed test reports that packed with every cable assembly.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Our Brand Confidence Comes From A Strong Production Team
100% Strict Performance Tests
IL/RL Test
3D Test
End Face Test
Temperature Test
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Ordering Process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
