Product Profile

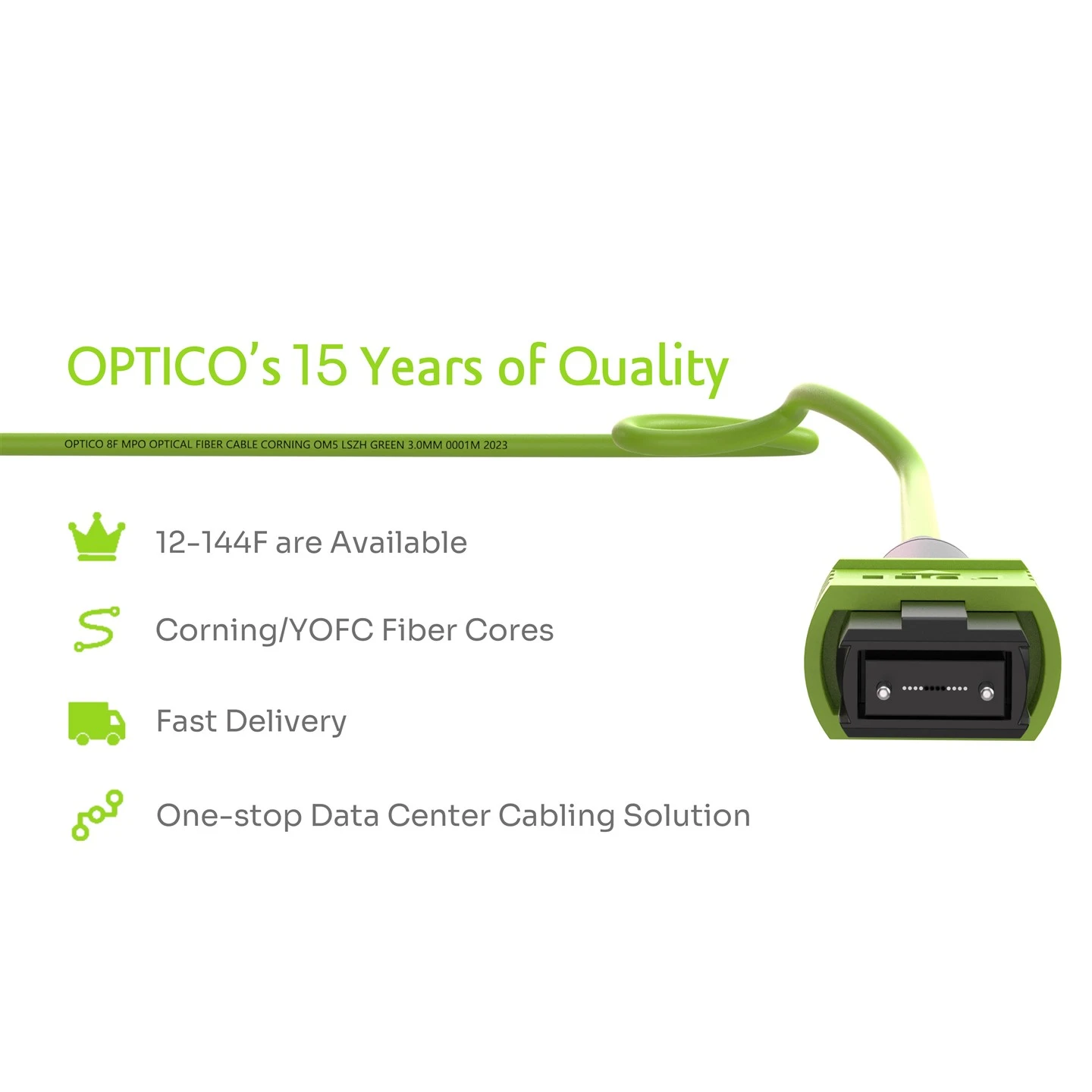

8F MPO Male to MPO Female Trunk Cable OM5 emerges as the solution designed to meet the demands of high-density setups. Tailored for space-saving and streamlined cable management, fiber optic MPO 8F trunk cable empowers data centers to seamlessly navigate the challenges of modern network architecture.
Due to the advantages of a large number of cores, small size, and high transmission rate, fiber optic MPO 8F trunk cable are widely used in high-density integrated fiber line environments such as data centers, fiber-optic communication networks, and CATV networks.
fiber optic MPO 8F trunk cable complies with the IEC61754 standard for reference of fiber optic connector interfaces and has good mechanical properties.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||

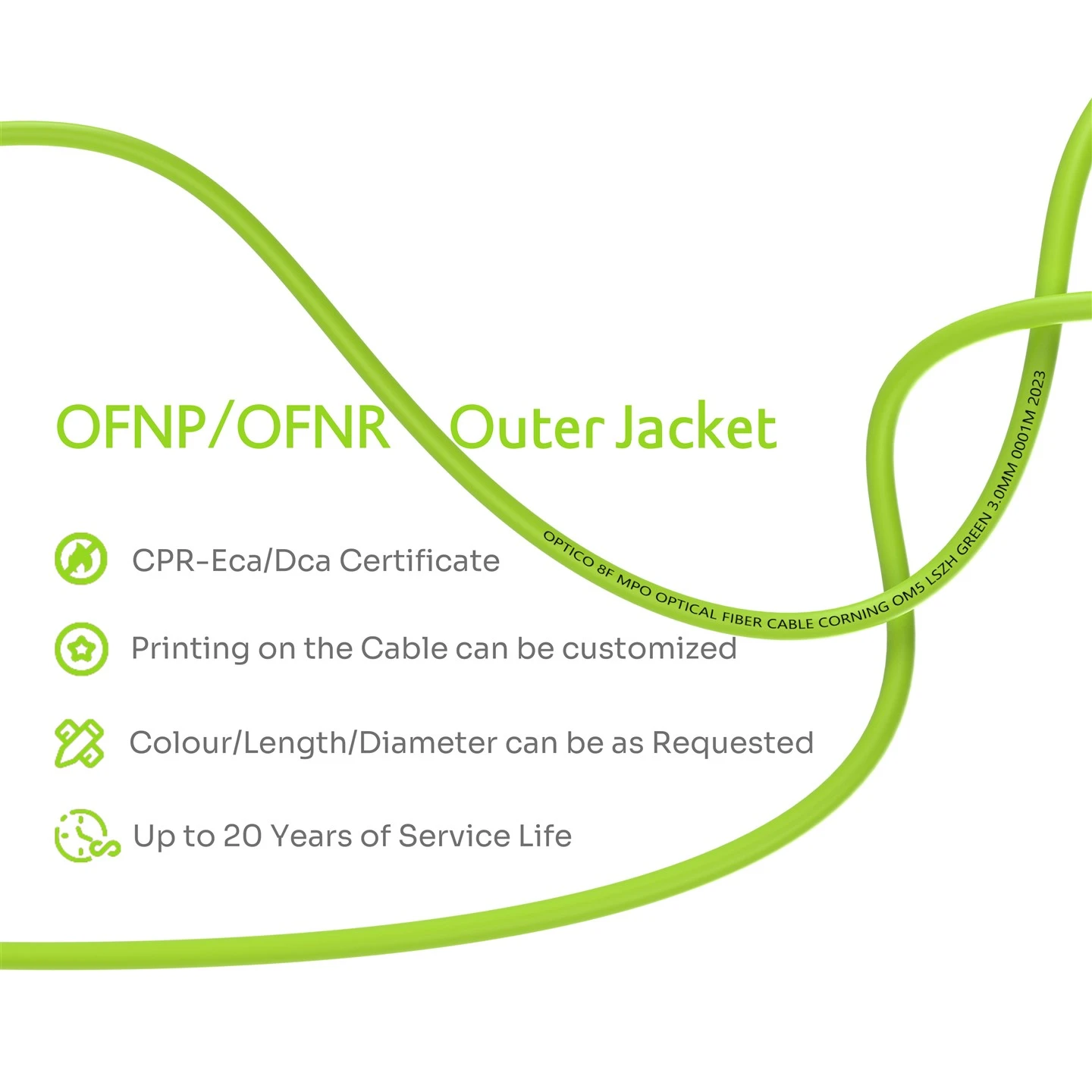

| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
The OM5 fiber mode offers compensation for modal dispersion and differential mode delay (DMD). Its standout feature is the added bandwidth characteristic at 953nm, supporting extended distances, especially in Short Wavelength Division Multiplexing (SWDM) applications.
Offering insertion loss options catering to Standard Loss, Low Loss, and Ultra Low Loss (≤0.5dB, ≤0.35dB, and ≤0.25 dB respectively), coupled with a return loss of ≥35 dB, 8F MPO fiber optic cable ensures reliability and consistency in data transmission.
Pre-terminated 8F MPO fiber optic cable completes the termination and testing of MPO optical fiber connectors and optical cables in the factory, plugs and plays on-site to support rapid deployment in high-density areas.
8F MPO fiber optic cable exhibits an operating temperature range of -40°C to +85°C and a storage range of -20°C to +70°C. This adaptability guarantees performance consistency regardless of the surrounding environmental conditions, ensuring reliable connectivity in diverse operating environments.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
40G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Equip with a high-performance switch and a 40G BASE-SR4 QSFP+ 850nm 150m Optical Transceiver Module to achieve 40 Gb/s.
b. Fiber Connection Method
Use LC UPC to LC UPC Duplex OM5 Multimode Patch Cords or 12-Core MTP Patch Cords for equipment connections.
Alternatively, we can use 8F MPO-MPO Female Trunk Cable OM3 to connect.
c. Fiber Cabling Management:
Implement 1U Fiber Patch Panel with 12 LC Duplex ODF and High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables, preventing clutter.
Alternatively, use a 12-Port MTP Panel with a similar rack mount enclosure.
2. Core to Access Connection
Use MTP OM4 12-Core Patch Cords to connect core and access points.
3. Access Cabling Solution
Identical to the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
Why Choose Us
15 years experience in manufacturing fiber optic products
Availability of R & D of 30 engineers with 10+ years experience
Available of design and making mold with special molding house
High quality, attractive price and fast delivery(7-15days)
OEM customer designs are also welcomed
More than 360 workers
FAQ
Q: How does the OM5 fiber enhance fiber mode for extended reach?
Q: Can this trunk cable be used for both new deployments and infrastructure upgrades?
