Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of fiber optical ccwdm module dual fiber in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

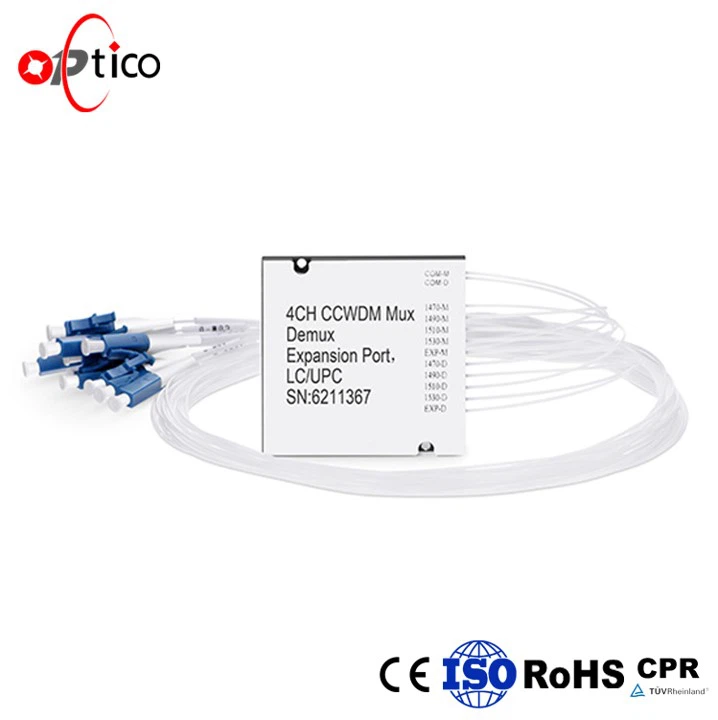

Fiber Optical CCWDM Module Dual Fiber
CCWDM compact wavelength division multiplexer is a small CWDM wavelength division multiplexer, which uses thin film filter technology and free space technology, greatly reducing the product packaging size and reducing insertion loss.
| Number of channels | 2/4/8/9 | wavelength | 1270-1610nm |
| Channel spacing | 20nm | Channel bandwidth | ±6.5nm |
| Fiber type | Single fiber | technology | Free space technology |
| Connector | LC/SC/FC/ST, UPC/APC | Package | FMU/1U Rack/ABS Box |
| Bandwidth (1310nm) | 1260nm~1360nm | Bandwidth (1550nm) | 1520nm~1620nm |
| Operating temperature | -40°C~+85°C | Storage temperature | -40°C~+85°C |
Highlights of OPTICO CCWDM Module
Low loss
High Channel isolation
Industrial Grade
Mature production process

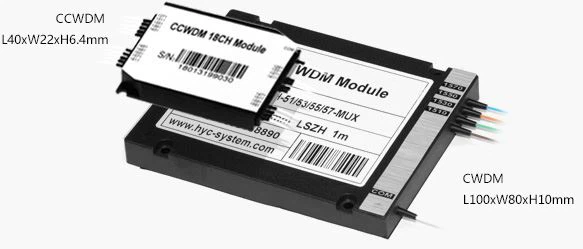

Compact design, smaller size

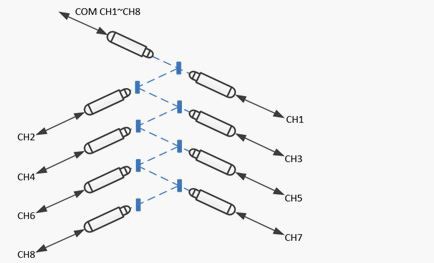

Free space technology
Support different transmission methods
Single fiber bidirectional transmission
Dual fiber bidirectional transmission
Project Case

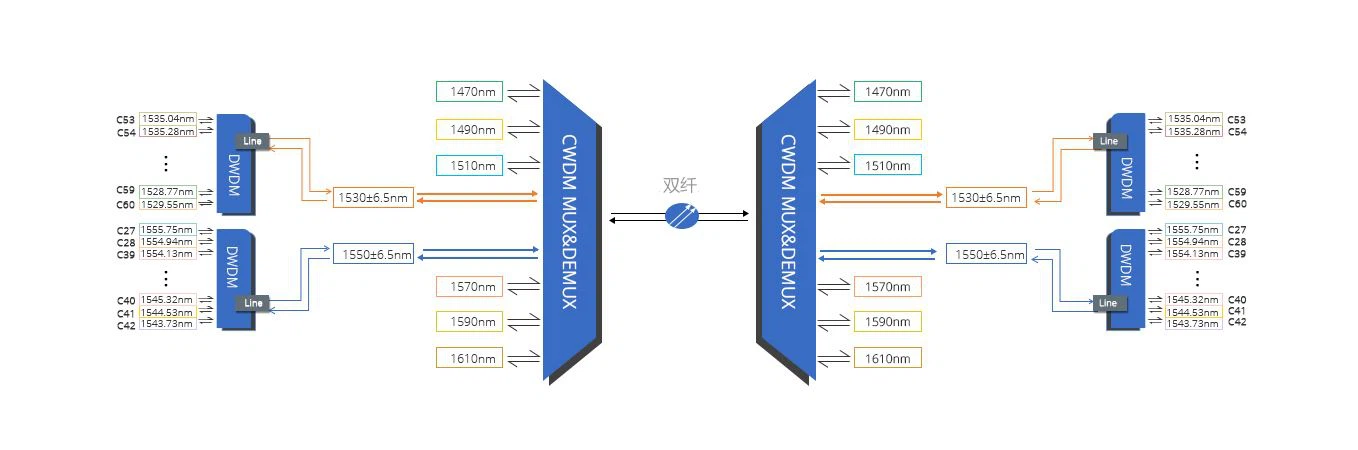

Can be completely compatible with 5G WDM fronthaul system, saving fiber resources.
100% Strictly Tested Before Delivery
Optical test

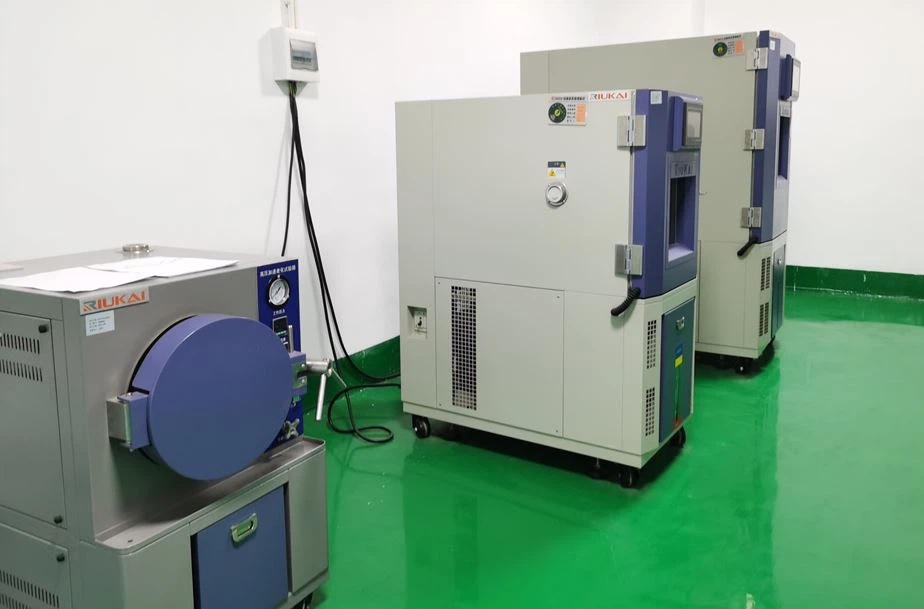

Temperature
Collimator debugging
Types of certificates
Mission will be achieved in 7-15 days
OPTICO CCWDM Advantages
| 1 | Can real reach Industrial Grade |
| 2 | Professional technical team and sales team respond quickly |
| 3 | Professional solutions and suggestions |
| 4 | 200000channels/month to ensure fast delivery |
| 5 | 1500㎡ WDM production lines |
| 6 | 100% Optical and Temperature test before delivery |
| 7 | CE/FCC/ISO/ROHS/CPR |
