Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 12 fiber mtp female to mtp female fiber trunk cable in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

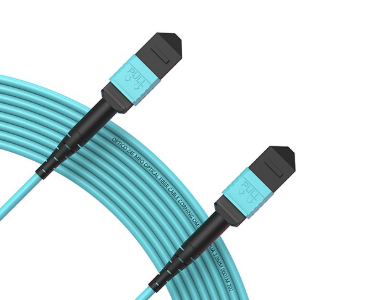

- This 12 Fiber MTP Female to MTP Female Fiber Trunk Cable employs a high-precision end-face polishing process, ensuring a tight fit and significantly reducing fiber end-face wear.
- As a core component of high-density cabling in data centers, the 12 Fiber MTP Female to MTP Female Fiber Trunk Cable is compatible with mainstream MTP/MPO connectors, various polarity schemes, and various optical network devices. It can be used with male patch cords and couplers to quickly build a complete backbone optical path, stably supporting gigabit to 400G high-speed transmission and providing a durable and stable fiber optic connection guarantee for network systems.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 16 | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Enhanced Efficiency
The MTP fiber optic patch cords support 12-core high-density fiber optic connections, effectively improving the messy cabling problem in data centers and network server rooms, significantly increasing rack space utilization, and making cabling more organized and efficient.
Precise and Stable Fiber Alignment
Built-in metal guide pins ensure precise fiber alignment and a tight, secure contact between the end faces. MTP/MPO connectors enhance structural strength and connection stability, effectively preventing misalignment and reducing fiber signal loss and transmission attenuation.
Reliable Performance
The precision fiber alignment combined with high-quality components results in an insertion loss as low as 0.35dB, effectively suppressing signal attenuation and ensuring stable and reliable transmission in high-speed network environments.
Easy Installation
The MTP patch cords feature a plug-and-play design, making installation quick and efficient without complex procedures. Whether deploying a network or reallocating cables, cabling can be completed quickly, significantly saving construction time and labor costs.
Feature Overview
Corning/YOFC Fiber
All MPO ferrules are from Hakusan
High Stability And Reliability
High Density And Speed
Our Brand Confidence Comes From a Strong Production Team
Scenes of Applications
SFP transceiver connection
Data center
Networks interconnection
100% Tested Before Delivery
Our products undergo comprehensive testing before shipment to ensure high-quality delivery to our customers.
MPO IL RL Test
MPO Polarity Test
MPO End-surface Test
Temperature Test
faq
Q:1.What is the difference between MTP and MPO?
A:MPO is a universal fiber optic connector standard, while MTP is an upgraded version of MPO, featuring a removable housing, adjustable polarity, better dust protection, and compatibility with repeated mating and unmating. Both have the same interface and are compatible.
Q:2.What is Type B Cross Polarity in MTP fiber cables?
A:Type B, also known as cross-polarity, is the standard fiber sequence arrangement for MTP patch cords. Its characteristic is that the fiber cores at both ends of the patch cord are reversed. Taking a 12-core MTP connector as an example, fiber core 1 on one end corresponds to fiber core 12 on the other, and fiber core 2 corresponds to fiber core 11, with the ends arranged in a cross-polarity pattern. This unique reverse cross-polarity structure meets parallel optical link cabling specifications, ensuring accurate transmission and reception of 40G and 100G high-speed network signals and guaranteeing stable and smooth overall link transmission.
Q:3.What are the key differences between OM5, OM4, and OM3 MTP fiber cables?
A:OM3, OM4, and OM5 are multimode optical fibers of different specifications, with significant differences in bandwidth and transmission distance. OM3 and OM4 are only compatible with 850nm VCSEL light sources, with bandwidths of 2000 MHz·km and 4700 MHz·km, respectively. OM5 broadband multimode optical fiber, which also has a bandwidth of 4700 MHz·km, not only supports SWDM technology and is compatible with 850–950nm multi-wavelength transmission, but also perfectly adapts to various high-speed network applications due to its wider wavelength adaptability.
Q:4.Are the losses at different end faces the same for single-mode and multi-mode systems?
A:They are different. Single-mode PC connectors have a standard loss ≤0.35dB and a low loss ≤0.20dB; APC connectors have a standard loss ≤0.35dB and a low loss ≤0.20dB; multi-mode PC connectors have a standard loss ≤0.35dB and a low loss ≤0.30dB.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Rich Warehousing and Fast Delivery
