24 Fiber MPO To LC Breakout Cable

Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24 fiber mpo to lc breakout cable in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

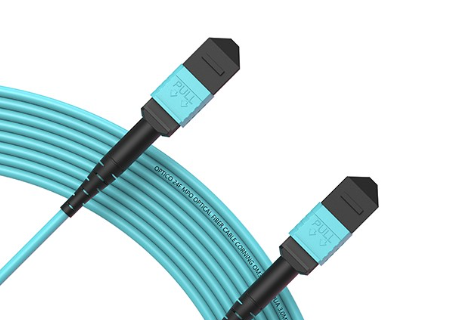

• This 24 Fiber MPO to LC breakout cable supports full-specification customization for OS2 single-mode and OM3/OM4/OM5 multimode. One end of the patch cord is equipped with an MTP/MPO connector (male or female), and the other end with an LC connector of various core counts, enabling plug-and-play functionality and rapid cabling.

• The 24 Fiber MPO to LC breakout cable utilizes high-precision industrial-grade MPO connector manufacturing processes and is equipped with high-quality cable assemblies (zirconia ceramic ferrules, bend-insensitive fiber), resulting in lower insertion loss and better random interchangeability. This ensures stable signal transmission and long-term reliability, meeting the core requirements of bandwidth-dense fiber optic interconnect architectures for connection stability and transmission continuity. This MPO branch cable is highly adaptable to data center networking scenarios and is a preferred component for optical communication cabling solutions.



	Array Fusion Splicing   MPO breakout cable employing array fusion splicing technology are the preferred cabling solution for interconnecting outdoor backbone optical cables with bare ribbon pigtails in data centers. Leveraging multi-core synchronous array fusion splicing technology, stable connection of multiple optical channels is achieved, resulting in robust and durable joints. This significantly reduces insertion and return losses, maintaining excellent signal integrity even in 40G/100G high-speed transmission scenarios. It perfectly adapts to the high-efficiency interconnection needs of high-density data centers, fiber optic distribution frames, and FTTX scenarios, simplifying data center cabling and ensuring long-term stable operation.
	Durability and Reliability   MPO branch cables are designed for harsh and complex industrial and data center environments, boasting excellent wide temperature adaptability, high tensile strength, and a compact minimum bending radius. They maintain stable optical transmission performance even under harsh conditions such as stretching, bending, and temperature fluctuations, ensuring reliable signal transmission and significantly enhancing product durability and long-term stability. They can achieve continuous and stable operation even in demanding installation environments such as high-density cabling and confined spaces.
	Extremely Low Insertion Loss and High Return Loss   MPO branch cables have an insertion loss of less than 0.25dB, effectively reducing signal attenuation and improving fiber optic connection performance.   Regarding return loss, multimode is ≥35dB, single-mode is ≥55dB, and APC connectors are ≥60dB. Excellent anti-reflection characteristics reduce signal degradation and ensure stable and reliable transmission.
	Customization   We offer professional customization services for MPO branch patch cords based on specific application needs. Connector type, fiber count, cable length, outer sheath material, and assembly process can all be flexibly adjusted to meet the personalized requirements of different cabling scenarios.

Feature Overview

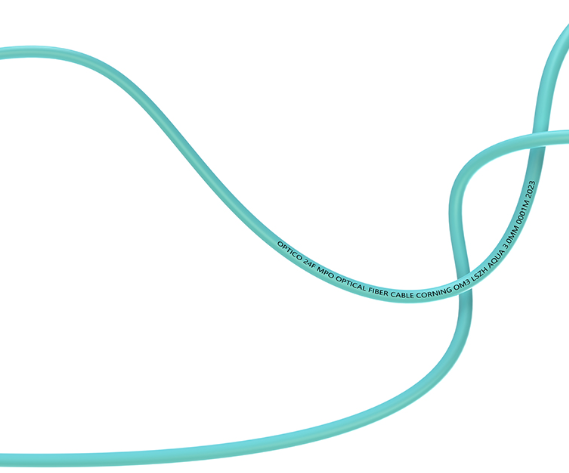

Corning/YOFC Fiber

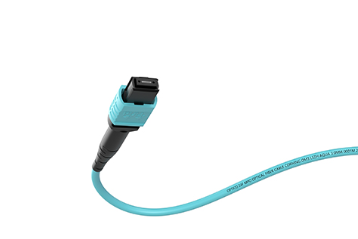

US CONEC MPO connector



CCTC Ceramic ferrule





Branch details



24-core MTPMPO branch fiber jumper realizes direct connection from 40G SR4 to 10G SR



24-core MTPMPO backbone jumper and 40G adapter panel realize 10G to 40G network upgrade



40G SR4 and 24-core MTPMPO trunk fiber jumper directly

Equipped with professional testing instruments, standardized testing procedures, and experienced testing personnel,

we can meet the various testing needs of our entire product line.

IL/RL test

3D test

Temperature test

OPTICO boasts a professional and experienced engineering team capable of customizing product drawings, labeling, colors, connector types, fiber core counts, and various special specifications to meet your specific needs.

We look forward to discussing cooperation with you to create customized products tailored specifically for you.

• 25G Trunk Cabling Solution

1. Core Cabling Solution:

a. Core Connection Equipment
Equip with a high-performance switch and 25G SFP28 Optical Transceiver Module, the data transmission rate can reach 25.78 Gb/s.

b. Fiber Connection Method:
Utilize 12 Cores MPO-LC Fanout Fiber Optic Cable or MTP Patch Cord 12 Cores to connect Equipment.

Alternatively, we can use 8F MPO-MPO Female Trunk Cable OM3 to connect.

c. Fiber Cabling Management:
Use 12 Port MTP Panel,and High-Density 1U Rack Mount Enclosure Unloaded Sliding Drawer to store and organize cables to avoid clutter.

2. Core to Access Connection

Apply 24F 2×12 MPO Trunk Cable OM3 Female or 24F MPO-MPO Female Trunk Cable OS2 to connect the core and access.

3. Access Cabling Solution

Same as the core cabling solution.

Certificates



CE

CPR

ISO

RoHS



Full Ranges Of Reliability Tests From Third-party Lab



Coupling Test

Drop Test

Durability Test

High-Constant Temperature and Humidity Test

High-Low Temperature Test

Loss Test

Micro Cross Section Inspection Test

Resistant to Repeated Bending Test



Single Vertical Burning Test

Temperature Change Test

UV Test
