Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 16f mpo-mpo female trunk cable om5 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

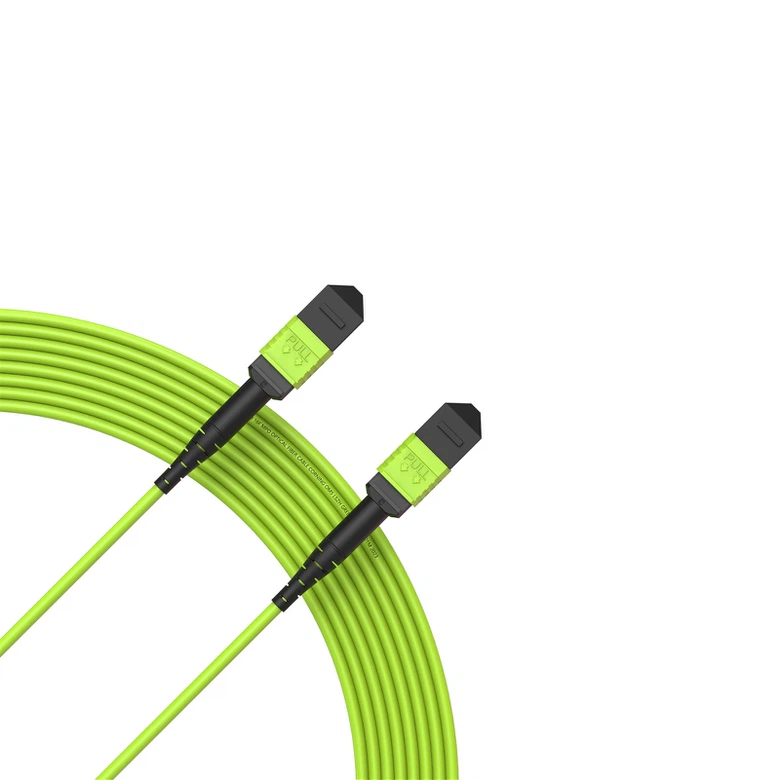

The 16F MPO-MPO Female Trunk Cable is a specialized solution designed for seamless 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 fiber direct connections, catering to the high-density demands of super-scale data centers.
The connectors of 16 fiber MTP cable are a higher-density connection solution.
The MTP-16 connector allows each connector to connect 16 optical fibers at the same time, significantly increasing the connection density compared to traditional 8 or 12 connectors.
This is especially important for data centers with limited space and high-density network layouts, which can effectively save cabinet space and reduce channel congestion.

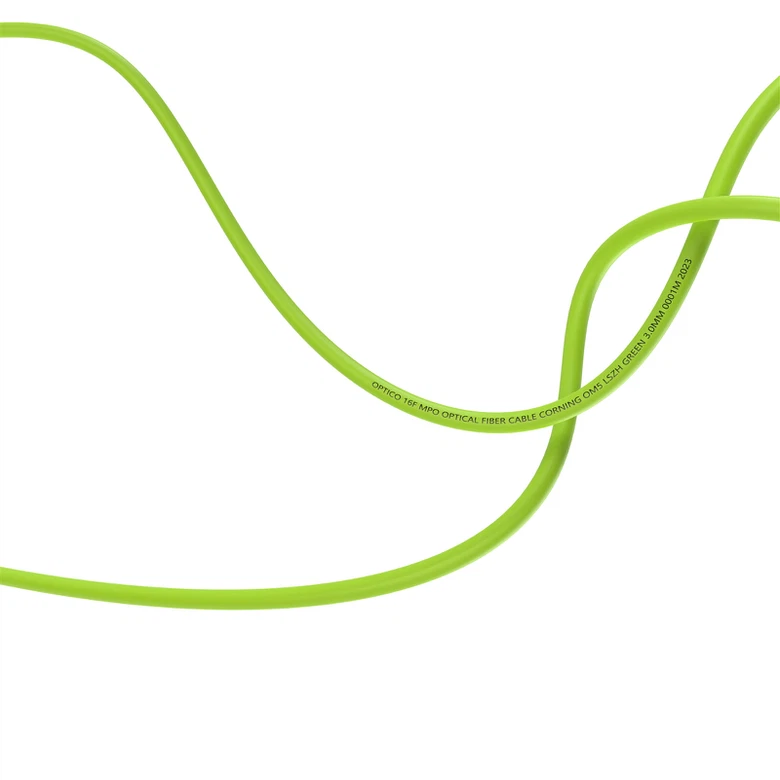

16F MPO-MPO Female Trunk Cable OM5 uses high-performance MPO female connectors and 16 Corning optical fibers, which can achieve optimal functionality and reliability due to its high core count, small size, and high transmission rate.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 16 Fibers |
| Fiber Mode |
OM5 |
| Connector Type | MPO Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Lime Green |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius(mm) | 7.5 |
| Fiber and Boot Length |
Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Optimized for High Density
With 16 fibers and a high-density design, this 16F MPO-MPO Female Trunk Cable OM5 provides a compact solution for data centers with demanding space requirements.
Laser-Optimized Performance
Laser-optimized multimode fiber (MMF) enables reliable 10 Gigabit speeds up to 300 meters and 40/100 Gigabit speeds up to 100 meters, depending on equipment capabilities.
Precision Engineering
High-performance polish at both connectors, precision alignment, and low optical loss ensure consistent and reliable performance.
Tensile and Fire-proof
The aramid yarn-encased tight buffer cable construction with a 7.50mm minimum bend radius enables the cable to navigate tight enclosures and sharp turns. OFNP(Plenum) rated cable jackets will not promote the spread of flame.
Applications
High Density Data Center
Backbone Network

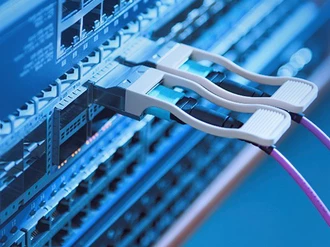

Optical Module Direct Connection
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
100G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment: Deploy a high-performance switch and 100G QSFP28 Optical Transceiver Module for 100Gb/s speeds.
For short distances: use 100G-SR4-S 100m Optical Transceiver Module.
For long-distance: use 100G Fiber Optical SFP Transceiver 2KM, 100G LR4 QSFP 10km Optical Transceiver Module, or 100G QSFP28 Module Transceiver 40km.
b. Fiber Connection Method: Connect equipment using MTP Patch Cord Multimode 12 Cores.
c. Fiber Cabling Management: Implement 12 Port MTP Panel and high-density Optical MTP Panel for organized cable storage.
2. Core to Access Connection: Use 12F MTP MPO Fiber Cable to link the core and access.
Alternatively, we can also use 16F MPO-MPO Female Trunk Cable OM5 to connect Core and Access.
3. Access Cabling Solution: Identical to the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
FAQ
Q: In what applications does this cable excel, particularly in terms of speed and performance?
Q: Can this cable work seamlessly with Multimode MTP/MPO QSFP+ SFP modules?
Q: Does the cable come with any specific connectors, or is it customizable based on connector preferences?
