Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 16f mpo-mpo male trunk cable om4 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

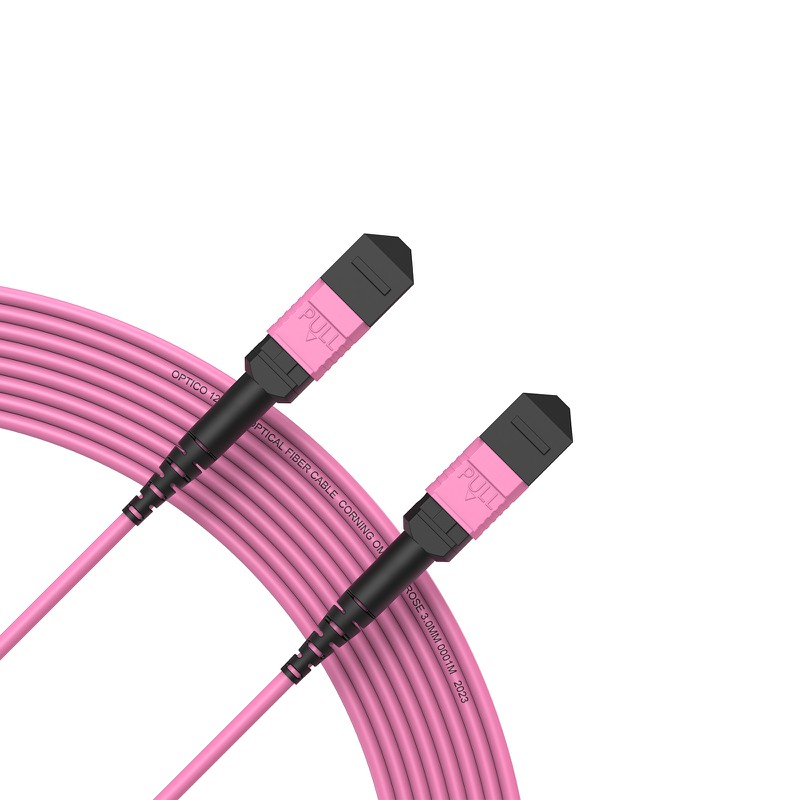

The 16F MPO-MPO Male Trunk Cable OM4 is a high-quality optical fiber cable engineered to deliver exceptional performance in data centers, enterprise networks, and high-speed connectivity applications. It features high-performance MPO male connectors and 16 corning optical fibers, enabling optimal functionality and reliability. Additionally, it provides consistent user quality, faster installation, and simpler cable management.
16 fiber optic MPO trunk cable can achieve high-density fiber connections with up to 16 fibers, thereby reducing cable clutter and optimizing space utilization in data centers and network environments.
At the same time, 16 fiber optic MPO trunk cable provide a neat and efficient way to replicate high-density switch ports, effectively reducing the risk of damage or errors during port use.
16F MPO Male Trunk Cable OM4 improves the stability and reliability of network systems.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 16 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | MPO Male |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Magenta |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Durability and Reliability
The fan-out connector of 16 fiber optic MPO trunk cable is designed to withstand harsh working conditions, featuring wide temperature tolerance, high tensile strength, and minimum bending radius. Its durability and reliability are ensured even in harsh installation environments.
Customizable
With highly integrated design and manufacturing capabilities, OPTICO can also provide customized products and solutions to help customers get better development opportunities.
Our products are 100% tested in the factory to provide optimal performance and reliability.
Extremely Low Insertion Loss and High Return Loss
16F MPO Male Trunk Cable OM4 offers excellent optical performance with extremely low insertion loss and high return loss, maximizing signal integrity and reducing transmission errors.
Rapid Deployment, High Density, and High Reliability
16F MTP trunk cable are designed for rapid deployment in high-density environments such as data centers. Its reliable performance ensures seamless connectivity and minimizes network interruptions.
applications
High Density Data Center
Backbone Network
Communication Rooms
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
100G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment: Deploy a high-performance switch and 100G QSFP28 Optical Transceiver Module for 100Gb/s speeds.
For short distances: use 100G-SR4-S 100m Optical Transceiver Module.
For long-distance: use 100G Fiber Optical SFP Transceiver 2KM, 100G LR4 QSFP 10km Optical Transceiver Module, or 100G QSFP28 Module Transceiver 40km.
b. Fiber Connection Method: Connect equipment using MTP Patch Cord Multimode 12 Cores.
c. Fiber Cabling Management: Implement 12 Port MTP Panel and high-density Optical MTP Panel for organized cable storage.
2. Core to Access Connection: Use 12F MTP MPO Fiber Cable to link the core and access.
Alternatively, we can also use 16F MPO-MPO Female Trunk Cable OM5 to connect Core and Access.
3. Access Cabling Solution: Identical to the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
