Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24f 2×12f mpo male-2×12f mpo female trunk cable om4 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
The 24F 2×12F MPO Male-2×12F MPO Female Trunk Cable OM4 is a high-speed connectivity solution designed for modern data centers and networks. With a compact and robust 3mm cable design, it optimizes space utilization, enhances airflow efficiency, and allows for rapid installation of high-density cabling. Composed of LSZH jacketed fiber optic cables, this trunk cable ensures top-notch quality in data center, telecom, and backbone applications, specifically tailored for 100G connectivity. Factory pre-terminated, tested, and equipped with detailed test reports, it guarantees reliability and efficiency in meeting the demanding connectivity needs of today's dynamic environments.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers(2×12) |
| Fiber Mode |
OM4 |
| Connector Type | MPO Male; MPO Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Rose |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Terminated with MPO connectors on both ends, the MPO Fiber Patch cable, or trunk cable, serves as a permanent link connecting MPO modules. Available in configurations of 8, 12, 24, 48, 72, 96, and 144 fibers, these cables support speeds up to 10/40/100Gbps, making them ideal for high-speed data center solutions.
The 24F 2×12F MPO Male-2×12F MPO Female Trunk Cable OM4 offers a range of insertion loss options(0.5dB/0.35dB/0.25dB). This versatility allows customers to fine-tune performance according to specific network demands, as well as guarantee igher performance in signal transmission.
The MPO Trunk Cable Series supports a variety of connections, including CFP to CFP+, CFP+ to CFP+, CXP to CXP, 10x10G to 10x10G, and 100G to 100G interconnections. This versatility allows seamless integration into various network configurations, providing flexibility and adaptability to evolving connectivity needs.
The MTP/MPO patch cable/trunk cables undergo meticulous factory pre-termination, testing, and packaging processes. Detailed test reports accompany each assembly, serving as a testament to long-term documentation and stringent quality control measures.
Applications
High Density Data Center
Backbone Network

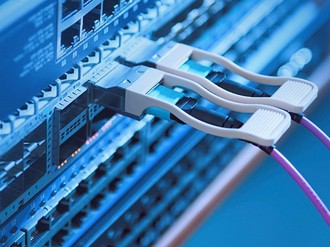

Optical Module Connection
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Utilize a high-performance switch with a 25G SFP28 Optical Transceiver Module, the data transmission rate can reach speeds of 25.78 Gb/s.
b. Fiber Connection Method
Connect equipment using LC UPC to LC UPC Duplex OM4 Multimode Patch Cord or MTP Patch Cord 12 Cores.
c. Fiber Cabling Management:
Incorporate MTP-12 Cassette (12 Fibers OM4 Multimode, MTP to 6 x LC Duplex) and High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables and reduce clutter.
Alternatively, use 24F 2×12F MPO-6LC MPO Cassette OM3, Quad LC in the same 1U Rack Mount Enclosure.
2. Core to Access Connection
Employ 24F 2×12 MPO Trunk Cable OM3 Female or 24F MPO-MPO Female Trunk Cable OS2 for the core-to-access connections.
3. Access Cabling Solution
This follows the same specifications as the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
FAQ
Q: Can this trunk cable be used to interconnect cassettes and panels?
Q: How can I inquire about purchasing and customization options for this trunk cable?
Q: What is the installation configuration of this trunk cable?
