Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24f 2×12f mpo male-2×12f mpo female trunk cable om5 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
The 24F 2×12F MPO Male-2×12F MPO Female Trunk Cable OM5 is designed to simplify network architecture while delivering unparalleled reliability and performance. With its remarkable features and forward-looking design, this MPO trunk cable ensures smooth and high-capacity data transmission.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers(2×12) |
| Fiber Mode |
OM5 |
| Connector Type | MPO Male;MPO Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Lime Green |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features

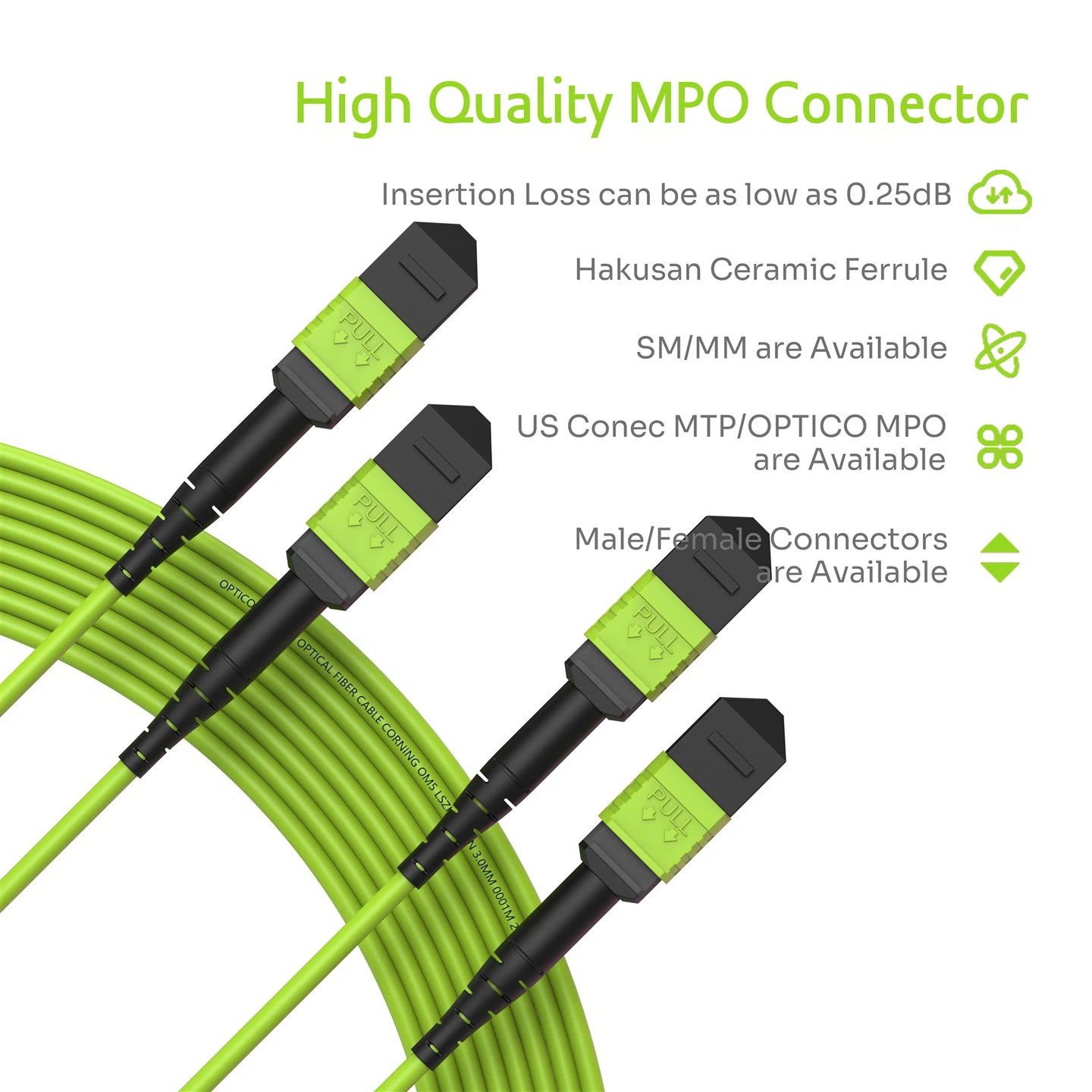

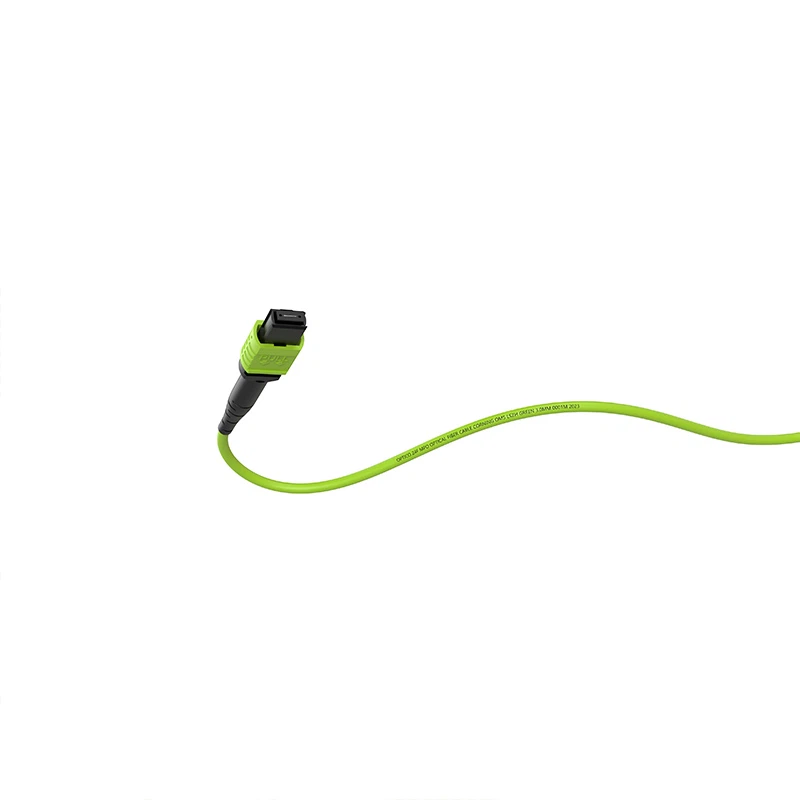

The MTP/MPO connectors can custom a push-pull design, allowing for easy and quick engagement and disengagement. Users can connect or disconnect the connectors with a simple push-and-pull motion, eliminating the need for intricate maneuvers or specialized tools.

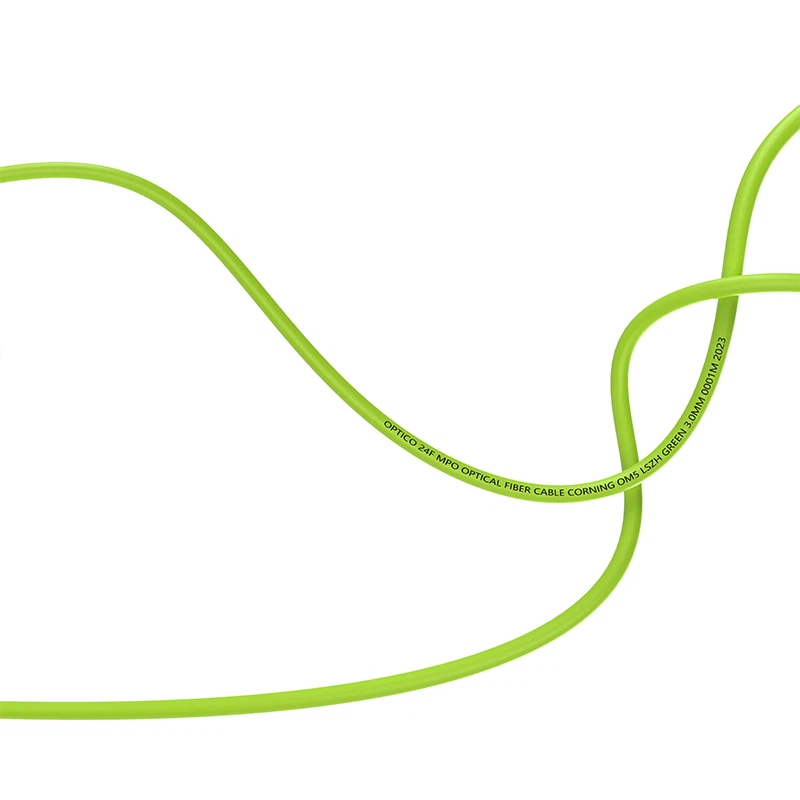

Equipped with a high fiber count of 24F in one cable, the 24F 2×12F MPO Male-2×12F MPO Female Trunk Cable OM5 assembly is tailored for dense applications. The round mini cable construction of this assembly not only reduces raceway usage but also contributes to a neat and organized setup.
The cable assembly supports a range of fiber types, including SM (9/125 G657 A1), MM (50/125 or 62.5/125), OM3, OM4, and OM5. OPTICO provides IL options for standard loss, low loss, and ultra-low loss configurations. Polarity, connector brand, fiber brand, cable length and printing, etc., can also be customized.
Before reaching the end-user, each cable undergoes rigorous testing, including 100% testing of insertion loss, back reflection, and interferometry. This commitment to quality ensures that the insertion loss does not exceed 0.35 dB. All MTP/MPO cable assemblies adhere to TIA/EIA and IEC intermateability standards.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Utilize a high-performance switch with a 25G SFP28 Optical Transceiver Module, the data transmission rate can reach speeds of 25.78 Gb/s.
b. Fiber Connection Method
Connect equipment using LC UPC to LC UPC Duplex OM4 Multimode Patch Cord or MTP Patch Cord 12 Cores.
c. Fiber Cabling Management:
Incorporate MTP-12 Cassette (12 Fibers OM4 Multimode, MTP to 6 x LC Duplex) and High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables and reduce clutter.
Alternatively, use 24F 2×12F MPO-6LC MPO Cassette OM3, Quad LC in the same 1U Rack Mount Enclosure.
2. Core to Access Connection
Employ 24F 2×12 MPO Trunk Cable OM3 Female or 24F MPO-MPO Female Trunk Cable OS2 for the core-to-access connections.
3. Access Cabling Solution
This follows the same specifications as the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
