Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of mpo patch cord om3 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Products Profile

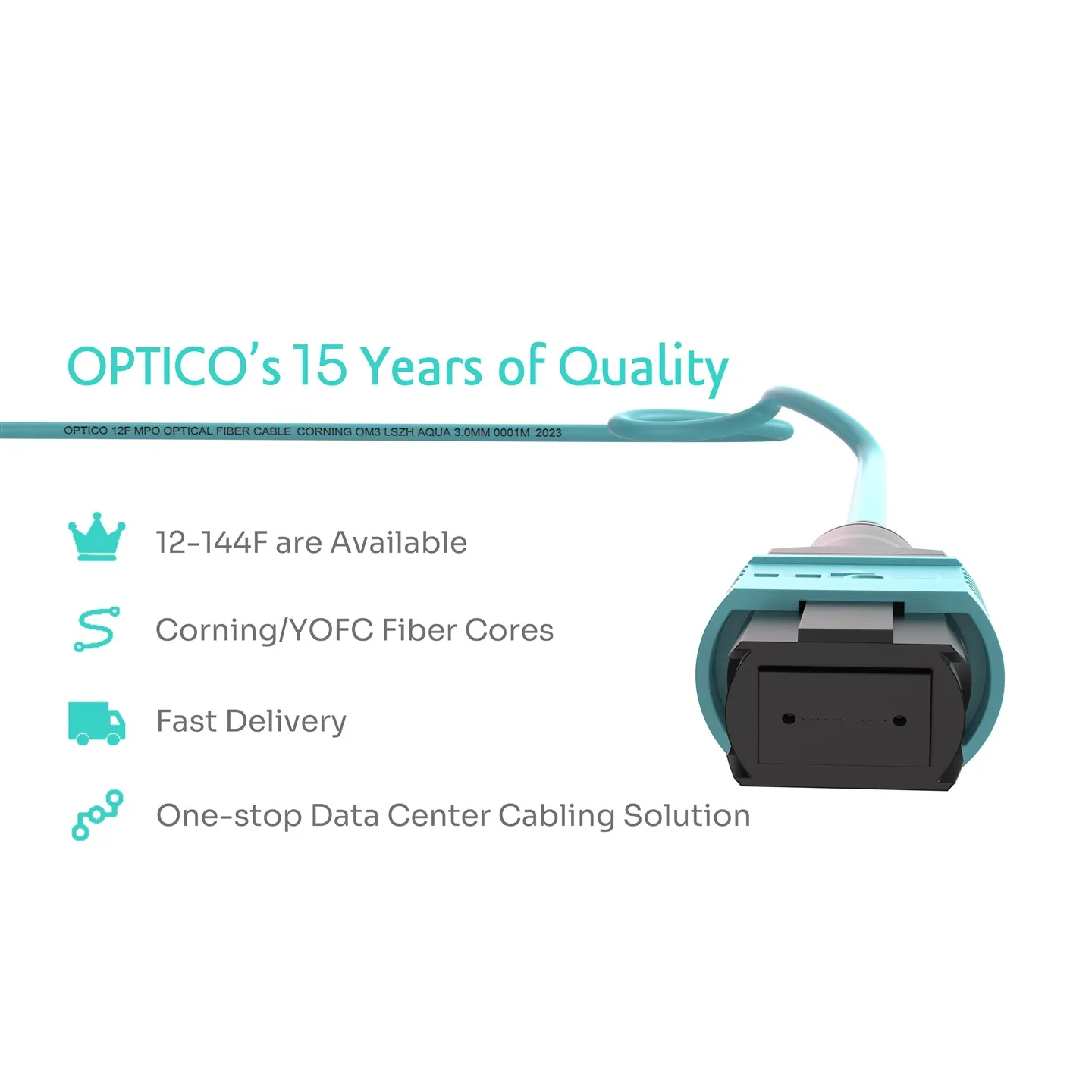

The MPO patch cord OM3 is a high-quality fiber optic cable designed for fast and reliable data transmission in network installations. Featuring the MPO (Multi-fiber Push On) connector, this patch cord offers precise connection and compact design, allowing for a higher number of cores in a smaller size. With advanced features such as low loss connectors and premium optical fibers, it provides exceptional performance and versatility.
Integration of Al and Automation:Artificial Intelligence (Al)andautomation will play a pivotal role in optimizing data center operations,enhancing efficiency,and reducing operational costs
Product Features
Premium Connectors: The MPO patch cord OM3 is equipped with high-quality connectors, including the US Conec MTP connector, Senko MPO Plus premium connector, ensuring reliable and consistent performance.
Superior Optical Fibers: It utilizes premium optical fibers such as SMF-28 Ultra optical fiber from Corning, Clearcurve OM3/OM4 fiber, and YOFC Maxband OM5 fiber, delivering excellent signal quality and data transmission.
Elite Low Loss Connector: With a maximum insertion loss of 0.35dB, the patch cord features elite low loss connectors, ensuring minimal signal loss and maintaining high transmission quality.
Factory Terminated and Tested: Each patch cord is factory terminated and tested to ensure consistent quality and performance, reducing installation time and ensuring reliability.
Seamless Migration: The MPO patch cord allows for easy migration from 10GbE to higher speeds like 40GbE or 100GbE, providing future-proofing and scalability for network upgrades.
Fiber Protection: The optional pulling eyes protect the delicate fiber ends during installation, reducing the risk of damage and ensuring long-term reliability.
Corning/YOFC Fiber
High density and speed
All our MPO ferrules are from Hakusan
Insensitive to bending
Our Brand Confidence Comes from a Strong Production Team
Applications
8-core MTPMPO branch fiber jumper realizes direct connection from 40G SR4 to 10G SR
12-core MTPMPO backbone jumper and 40G adapter panel realize 10G to 40G network upgrade
40G SR4 and 12-core MTPMPO trunk fiber jumper directly
Connectivity Solutions
10G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment:
In the core connect, a Switch is Equipped with the 10G SFP+ 300m 850nm Optical Transceiver Module to send and receive signals. These modules enable data transmission speeds of up to 10 Gbps, with a maximum transmission distance of 300 meters, making them suitable for data centers and large network environments.
b. Fiber Connection Method：
Connectivity is established using of LC UPC to LC UPC Duplex OM4 Multimode Patch Cord.
c. Fiber Cabling Management:
A 24F 2×12F MPO-6LC MPO Cassette, containing 24 LC duplex modules, is utilized along with a 1U high-density fiber enclosure. This setup optimizes fiber management and minimizes cable clutter.
2. Core to Access Connection:
A 24F MPO-MPO Female Trunk Cable can be used to contact the core connection and access cabling.
3. Access Cabling Solution:
The same connection approach of the core can also be applied to the access cabling solution, ensuring scalability and consistency throughout the network.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Purchase Guide
| Connector type | Cable type | Fiber type | Fiber count | Polarity |
| MPO male | Bare fiber ribbon | OM1 | 8 | A |
| MPO famale | Oval | OM2 | 12 | B |
| MTP male | Circle | OM3 | 24 | C |
| MTP female | Custom | OM4 | ... | |
| Customized |
Rich warehousing and fast delivery
Delivery(7-15 Days)
How We Stand by You
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support (RL can even reach 85dB/ Grade B connectors)
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
Hot Tags: mpo patch cord om3, China, manufacturers, suppliers, factory, wholesale, customized, 24 Core MPO Patch Cord MPO MTP, om4 mtp patch cord, multimode st patch cable fiber , mpo single mode fiber, mpo/mtp patch cord, mpo 12 breakout cable
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 12,16, 24,48,72,96,144 cores |
| Fiber Attenuation dB (OS2) | ≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm) |
| Fiber Attenuation dB (OM1) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm) |
| Fiber Attenuation dB (OM2) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
| Fiber Attenuation dB (OM3) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
| Fiber Attenuation dB (OM4) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
| Min.Bandwidth:Overfilled Launch[Mhz-km] | OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm) ≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm) |
| Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km] | OM3 ≥2000(850nm) OM4 ≥4700(850nm) |
| Outer diameter | 12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm |
| Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | >500N |
| Operating Temperature | -40 ~ +85°C |
