Product profile

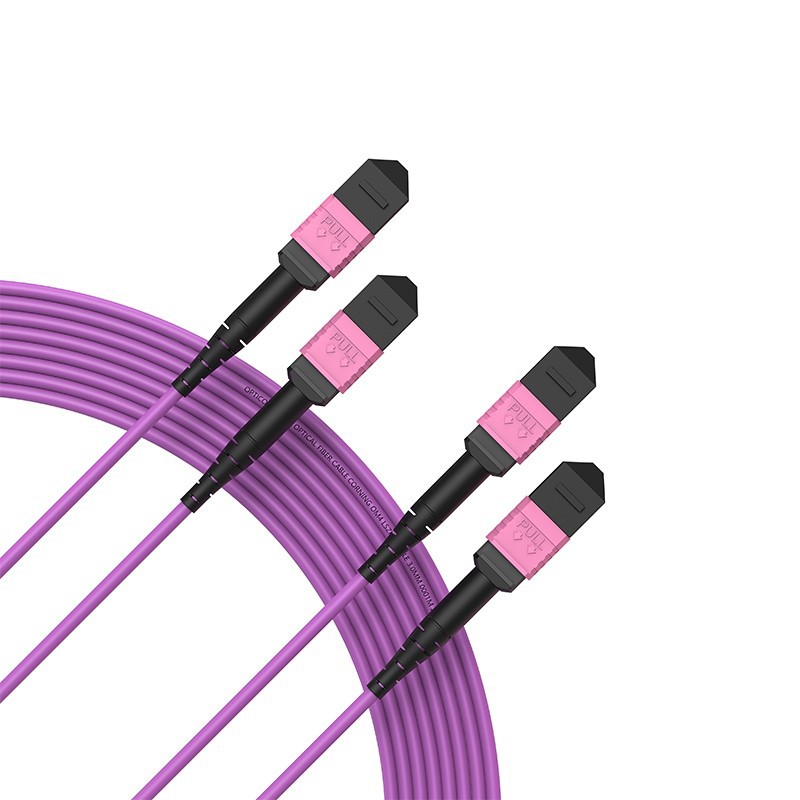

The 24F 2×12F MPO Male-2×12F MPO Female Trunk Cable SM MM Customizable is a factory pre-terminated 24-fiber multimode MPO patch cord designed for limited space cabling. Boasting the exceptional advantages of ultra-low loss, bending insensitivity, high stability, and unwavering reliability, this MPO trunk cable elevates your network's performance and efficiency.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers(2×12) |
| Fiber Mode |
SM:OS2; MM:OM3/OM4/OM5 |
| Connector Type | MPO Male;MPO Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius(mm) | 7.5 |
| Fiber and Boot Length |
Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | SM: 1310/1550; MM: 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Environmentally Friendly
The LSZH low-smoke, halogen-free, flame-retardant optical cable sheath eliminates external signal interference and provides transparent, stable, agile and natural transmission.
Versatility
With square and opposite port, the 24F 2×12F MPO Male-2×12F MPO Female Trunk Cable SM MM Customizable can meet most of the equipment with fiber optic interface on the market.
Compact Design
One MTP/MPO connector can accommodate 24 cores, which is easy to insert and remove for easy installation and removal.
Dust Cap Protection
The connector is matched with a dust cap that protects the end face of the connector from damage and other phenomena, making the cable longer in service life and less attenuation. A-grade Polishing End Face and Good Transfer Conductor.
applications
High Density Data Center
Backbone Network
Optical Module Connection
Connectivity Solutions
100G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment: Deploy a high-performance switch and 100G QSFP28 Optical Transceiver Module for 100Gb/s speeds.
For short distances: use 100G-SR4-S 100m Optical Transceiver Module.
For long-distance: use 100G Fiber Optical SFP Transceiver 2KM, 100G LR4 QSFP 10km Optical Transceiver Module, or 100G QSFP28 Module Transceiver 40km.
b. Fiber Connection Method: Use MTP Patch Cord Multimode 12 Cores or LC UPC OM5 Multimode Duplex Fiber Patch Cord for equipment connections.
c. Fiber Cabling Management:
Implement MTP Horizontal Fiber Optic Adapter Panel and high-density 1U rack mount enclosure with an unloaded sliding drawer for organized cable storage.
Or use MTP-24 Cassette, 1U Fiber Patch Panel With 24 LC Quad, and high-density 1U rack mount enclosure for organized cable storage.
2. Core to Access Connection: Connect using a 24F MPO-MPO Female Trunk Cable OM3 between the core and access.
3. Access Cabling Solution: Mirrors the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
