Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24f 2x12f mtp mpo to 3x8f mtp mpo backbone patch cable om5 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

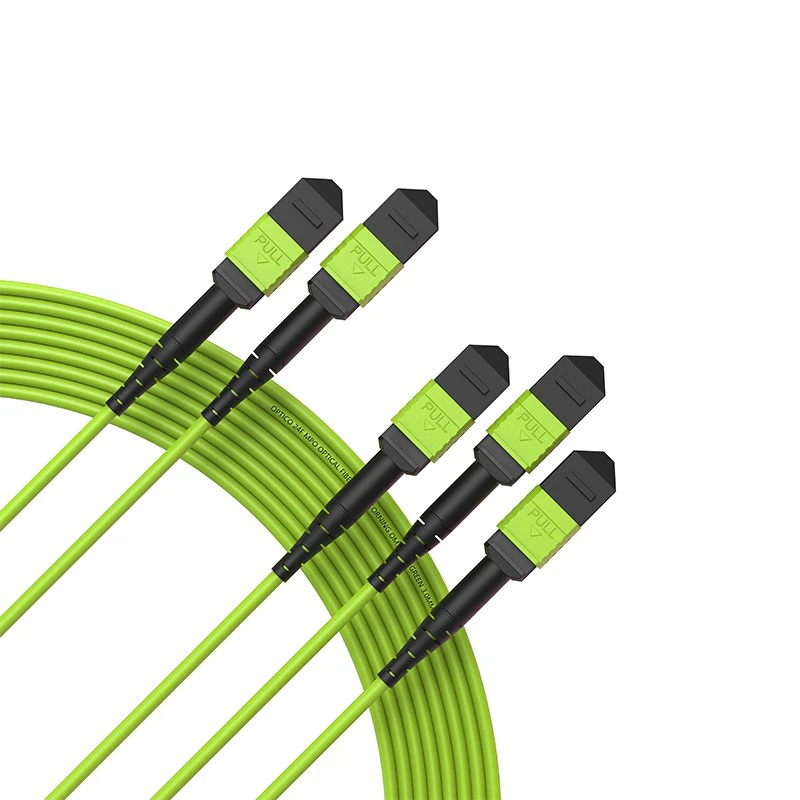

24F 2x12F MTP MPO To 3x8F MTP MPO Backbone Patch Cable OM5 provides a rapid solution for multiple connections, especially for applications such as data centers that require high density, rapid deployment, and high data performance.
24 fiber MPO cable can operate in a wide temperature range of -20ºC to +85ºC, with a storage temperature range of -40°C to +85°C, ensuring high-performance data transmission even in extreme environments.
Using Corning bend-insensitive optical fiber, 24 fiber MPO cable OM5 maintains signal integrity even with repeated bending or twisting.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers |
| Fiber Mode |
OM5 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Green |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Using a US Conec connector, 24F 2x12F MTP MPO To 3x8F MTP MPO Backbone Patch Cable OM5 has insertion loss as low as 0.3dB (low loss), 0.35dB (standard), and 0.7dB (maximum), which can maintain signal integrity and achieve seamless data communication.
OPTICO provides a comprehensive range of fiber optic cabling, from 8 to 144 fibers, enabling high-density connectivity, and saving space in HPC (High-Performance Computing) environments such as data centers and hyperscale data centers.
OPTICO supports custom solutions and OEM services for greater flexibility and scalability to meet your cabling requirements.
Before delivery, all products 100% pass the Sumix 3D test/loss test/high and low-temperature cycle test.
All our products are RoHS/ISO/CE/CPR/FCC compliant.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Our Brand Confidence Comes From A Strong Production Team
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
40G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Equip with a high-performance switch and a 40G BASE-SR4 QSFP+ 850nm 150m Optical Transceiver Module to achieve 40 Gb/s.
b. Fiber Connection Method
Use 24F 2x12F MTP MPO To 3x8F MTP MPO Conversion Cable OM3 for equipment connections.
c. Fiber Cabling Management:
Use 24 Core MPO Module Cassette, and High-Density 1U Rack Mount Enclosure to store and organize cables to avoid clutter.
2. Core to Access Connection:
Use 24F MPO Trunk Cable OM3 Male 2×12, a 2×12F to 2×12F MPO Cable to connect core and access points.
3. Access Cabling Solution
Identical to the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Ordering Process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
