Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 48f 4x12f mtp mpo to 4x12f mtp mpo fiber optic cable om5 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

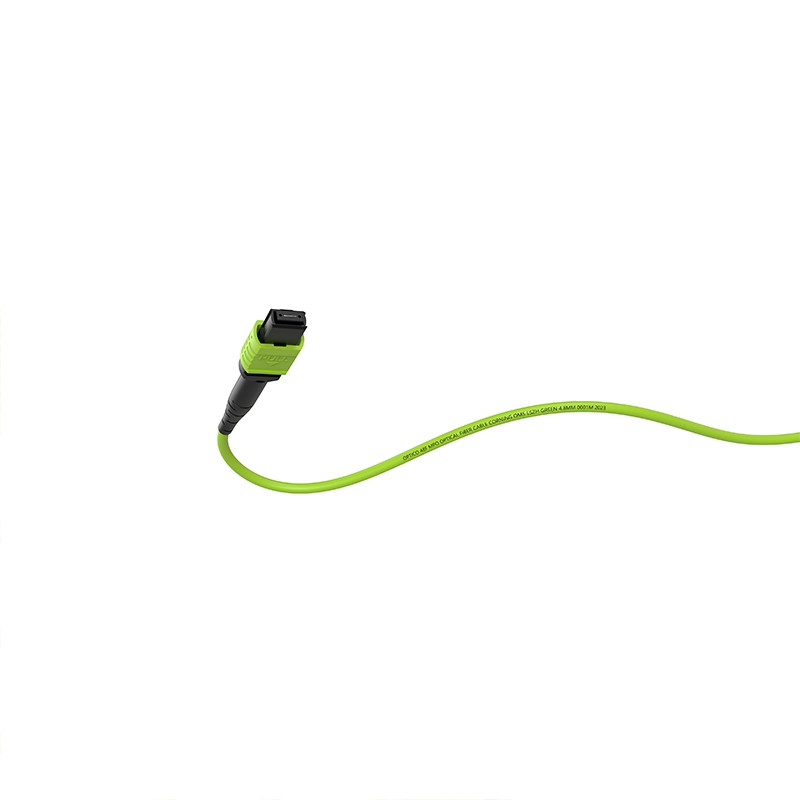

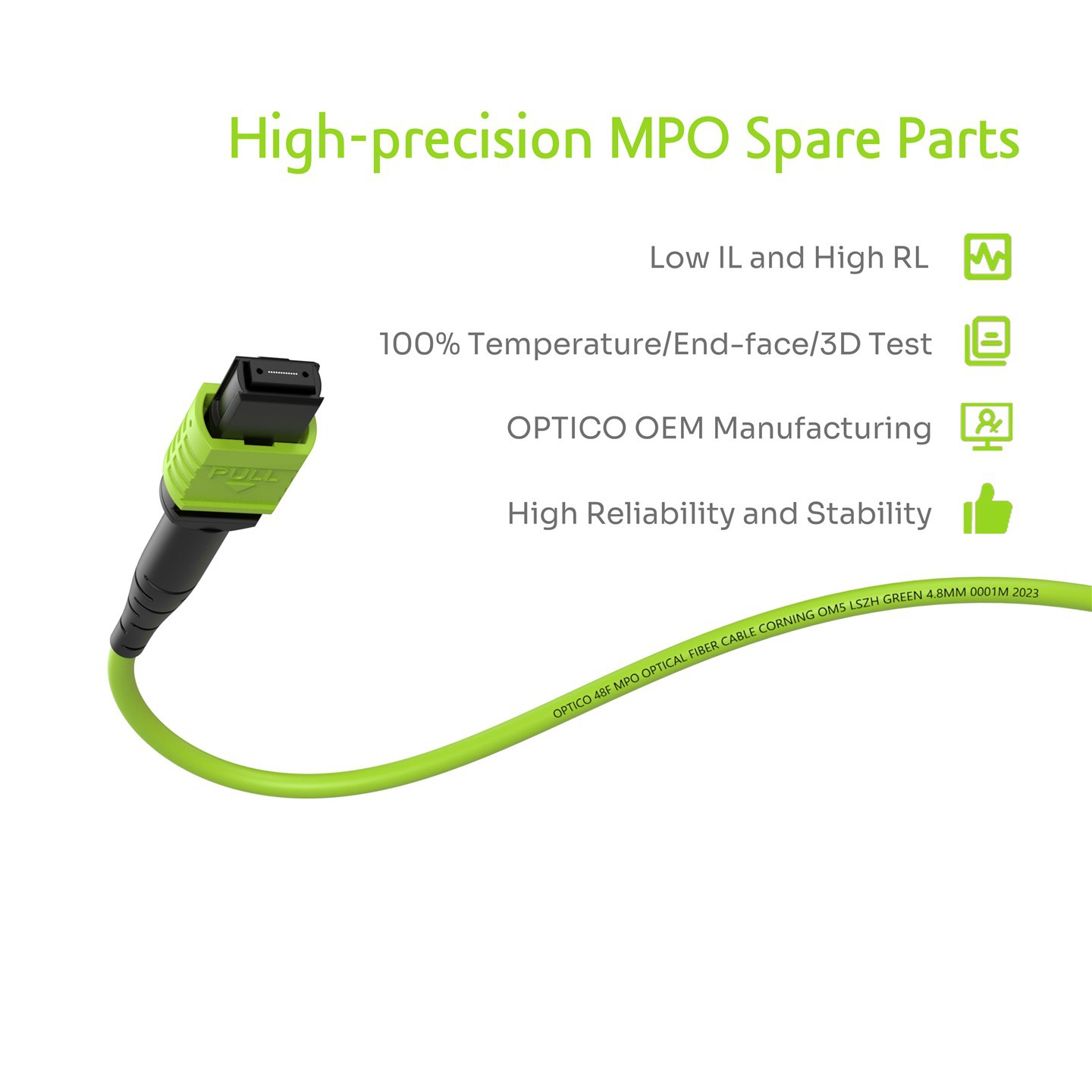

The 48F 4x12F MTP MPO Fiber Optic Cable OM5 is a high-density fiber optic cable with 48 fibers organized into four groups of 12 fibers each.
48F fiber MTP cable utilizes MTP/MPO connectors and is designed with OM5 multimode fibers to support high-speed data transmission, particularly in data center environments.
The construction of a 48-fiber MTP cable allows for efficient connectivity and management of optical fibers within a network infrastructure, effectively supporting the high-capacity data transmission of 100G QSFP28 LR.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 48 Fibers |
| Fiber Mode |
OM5 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Green |
| Cable Diameter(mm) | 4.8 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
High Density, Maximum Efficiency
Designed for optimal space utilization, this 48F 4x12F MTP MPO To 4x12F MTP MPO Fiber Optic Cable OM5 boasts high density, allowing for efficient connectivity in data centers. With fiber counts available in 48 fibers, it provides flexibility to meet various connectivity requirements to 100G QSFP28 LR.
Plug and Play Simplicity
Installation becomes a breeze with the simple plug-and-play design of the 48F fiber MTP cable. The user-friendly approach ensures easy installation, making it a preferred choice for network setups that demand quick and efficient solutions.
Comprehensive Inspection and Flexibility
48F 4x12F MTP MPO Fiber Optic Cable undergoes 100% inspection with traceable test data. This commitment to quality ensures reliability and performance. Moreover, the cable exhibits high flexibility, adapting seamlessly to different equipment.
Versatility Across Fiber Modes
This fiber optic cable is available in various fiber modes, including single mode (OS2) and multimode (OM1 to OM5). Customization options extend to colors, materials, and length, providing a tailored solution for diverse networking needs, like 100G QSFP28 LR solutions.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
100% Strict Performance Tests
IL/RL Test
3D Test
End Face Test
Temperature Test
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
FAQ
Q: How long is the transmission distance of MPO cables?
Q: How thick is a MPO cable?
Q: Can this fiber patch cords operate under -40℃ temperatures?
Q: What skills are necessary for installing MPO cables?
Hot Tags: 48F 4x12F MTP MPO To 4x12F MTP MPO Fiber Optic Cable OM5, China, manufacturers, suppliers, factory, wholesale, customized, mpo mpo patch cord, mpo patch cord, lc lc om4 patch cord, MPO Cable Assemblies, mpo om4 cable, mpo om4 jumper
