Product Profile
The 48F 4x12F MTP MPO To 4x12F MTP MPO Trunk Cable OM4 Purple connects MTP/MPO modules to establish permanent links, facilitating rapid deployment of high-density backbone cabling in data centers and other fiber-rich environments. This efficiency significantly reduces the time and costs associated with network installations or reconfigurations.
The plug-and-play structure of MTP 48F breakout cable minimizes initial installation and routine maintenance costs, providing a cost-effective solution for high-density connectivity needs.
Four 12F-MPO Configuration is capable of transmitting 40 G signals, this configuration lacks the fiber bundles required for higher transmission rates. It's ideal for applications such as creating direct 40 G (40GBASE-SR4) links between two QSFP+ transceivers.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 48 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Purple |
| Cable Diameter(mm) | 4.8 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features

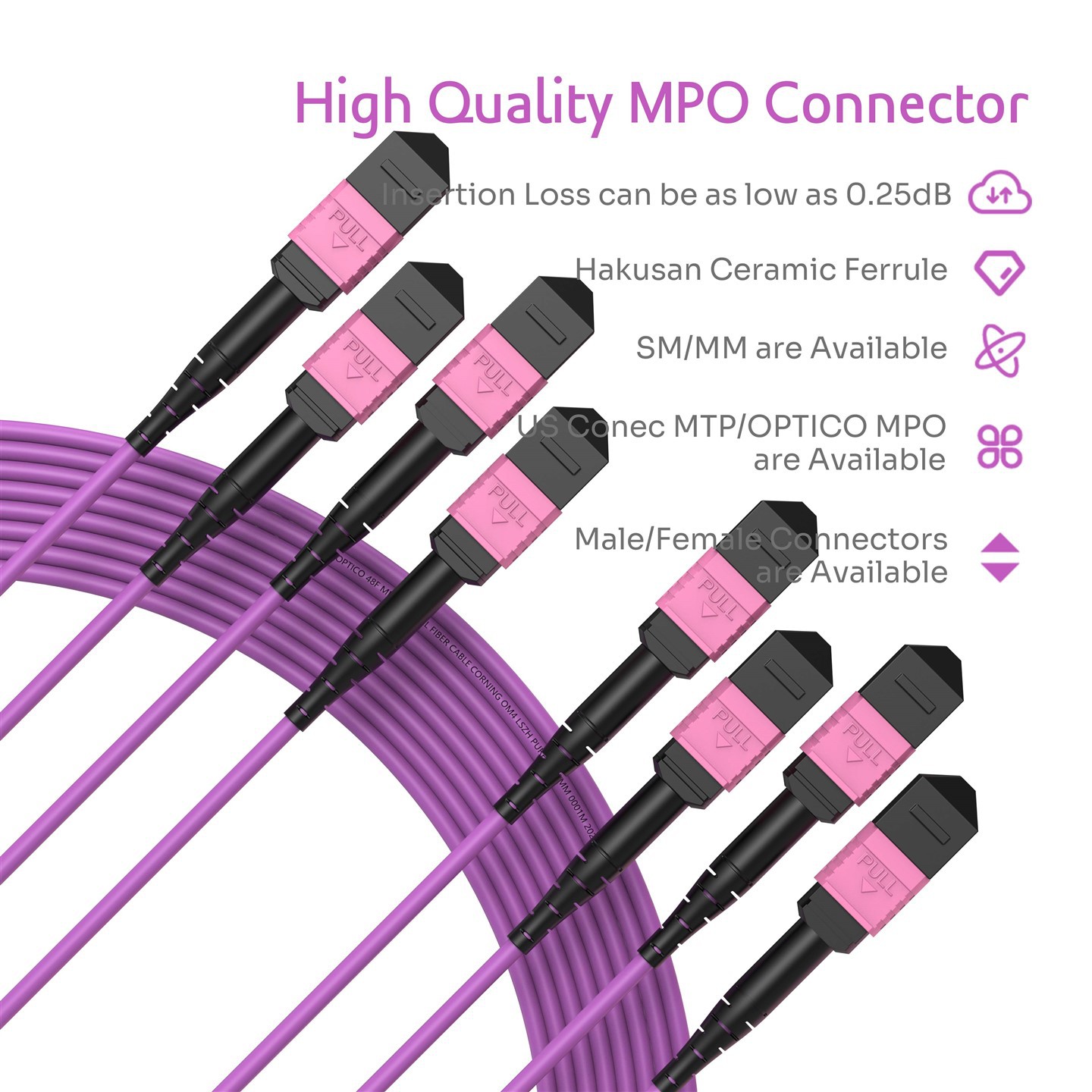

Quality Connectors for Longevity
All MPO connectors feature a floating sleeve, aligning with guide pins and aided by springs to resist opposing MPO sleeves. The manufacturing tolerances of the sleeves and the quality of the springs are critical factors determining the connector's performance and lifespan.
Fire-Resistant and Environmentally Friendly
The 48F 4x12F MTP MPO To 4x12F MTP MPO Trunk Cable OM4 Purple is designed with fire-resistant features compliant with low smoke (IEC 61034), halogen-free (IEC 60754-1), flame retardant (IEC 60332-1-2), and corrosion-resistant (IEC 60754-2) standards. This ensures safety and environmental responsibility in various deployment scenarios.
Versatile Pre-Terminated Design
Pre-terminated MPO 48F trunk cables can be used with plug-and-play modules or MTP/MPO connector panels to achieve multi-level connections. Additionally, relay cables with pre-terminated ends can be extended through MTP/MPO panels equipped with plug-and-play modules, supporting interconnections across MDA, HDA, and EDA areas.
Plug-and-Play Micro-Cable Assemblies
The push/pull mechanism in the MTP breakout cable simplifies insertion and removal effortlessly. These plug-and-play solutions, used as backbone or horizontal cable interconnects, maximize bend radii and minimize cable weight and size.
Applications

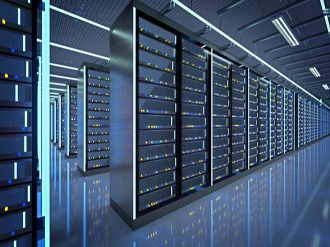

High Density Data Center
Backbone Network

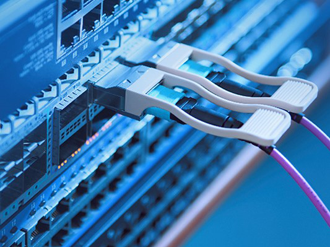

Optical Module Connection
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via:
Phone: +86-755-33532578
Email: sales@fiberopticom.com
WhatsApp: 8619129420326
FAQ
Q: Can our labels be printed on the optical cable?
Q: Can the cable be customized for different fiber counts or lengths?
Q: What kind of outer jactket is recommended for the cable?
Q: Can this cable be installed between two buildings?
