Product Profile

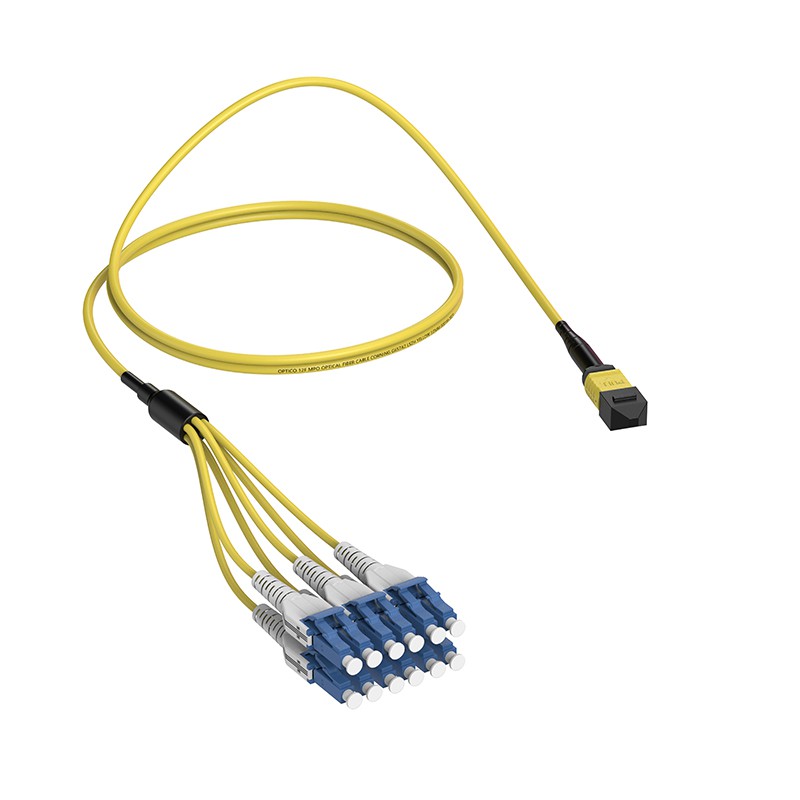

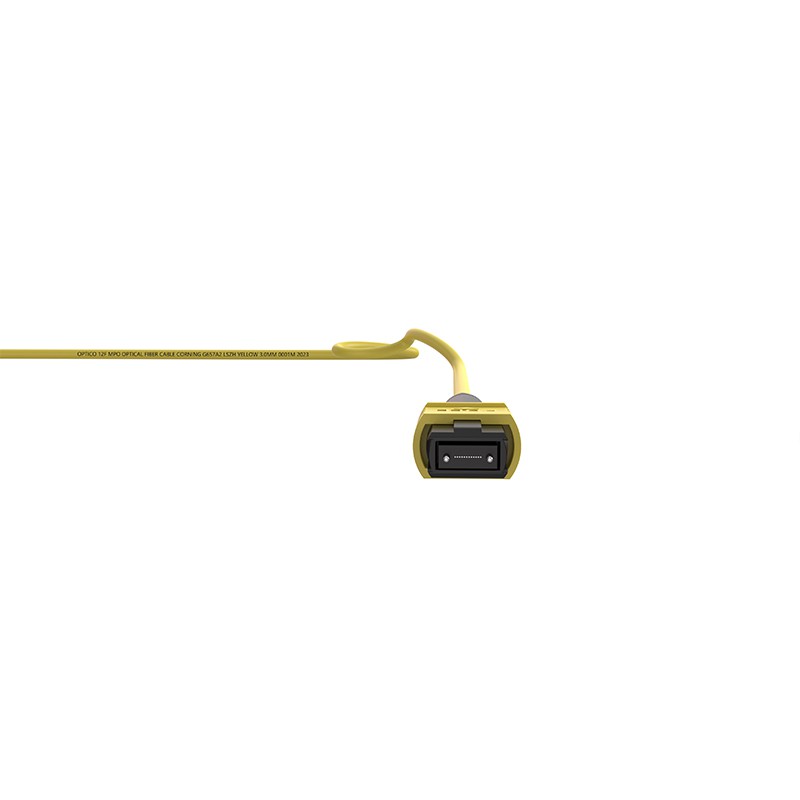

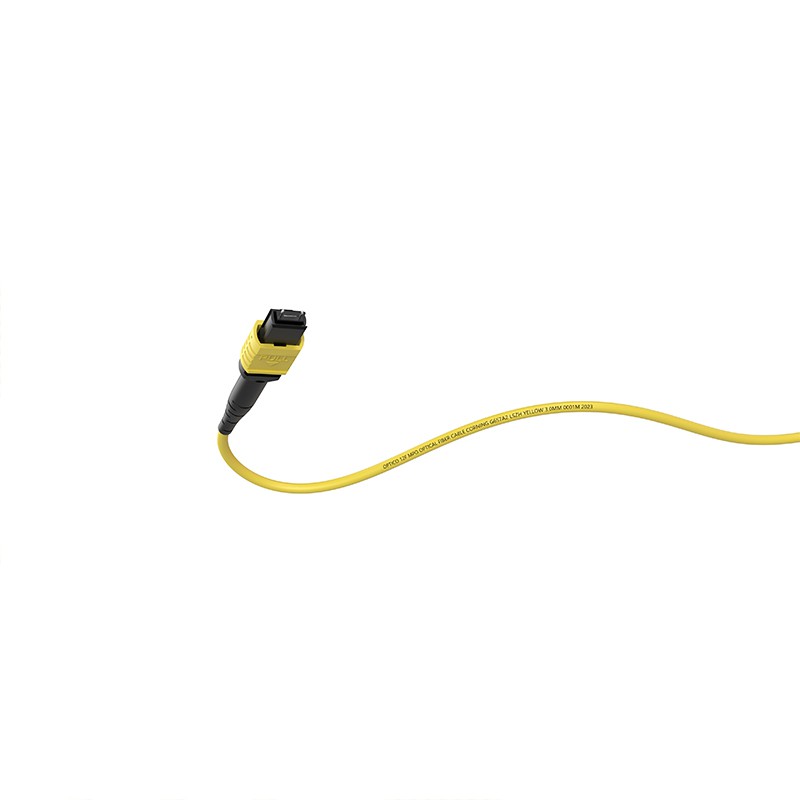

OPTICO's MTP/MPO Breakout Cable helps quickly deploy backbone cabling in data centers and other high-density environments, reducing the time and cost of network installation or reconfiguration.
OPTICO's high-precision MTP/MPO assemblies are factory-tested and pre-terminated for ultra-low losses, high stability and reliability. We are committed to providing high-quality customized optical fiber solutions, such as fiber counts, fiber mode, connector type, fiber cable length, fiber cable printing, fiber cable color, etc., to meet the specific needs of different customers.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 12 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | Connector A: US Conec MTP/OPTICO MPO; |
| Connector B: LC/SC/FC/ST | |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Bending Insensitive Fibers

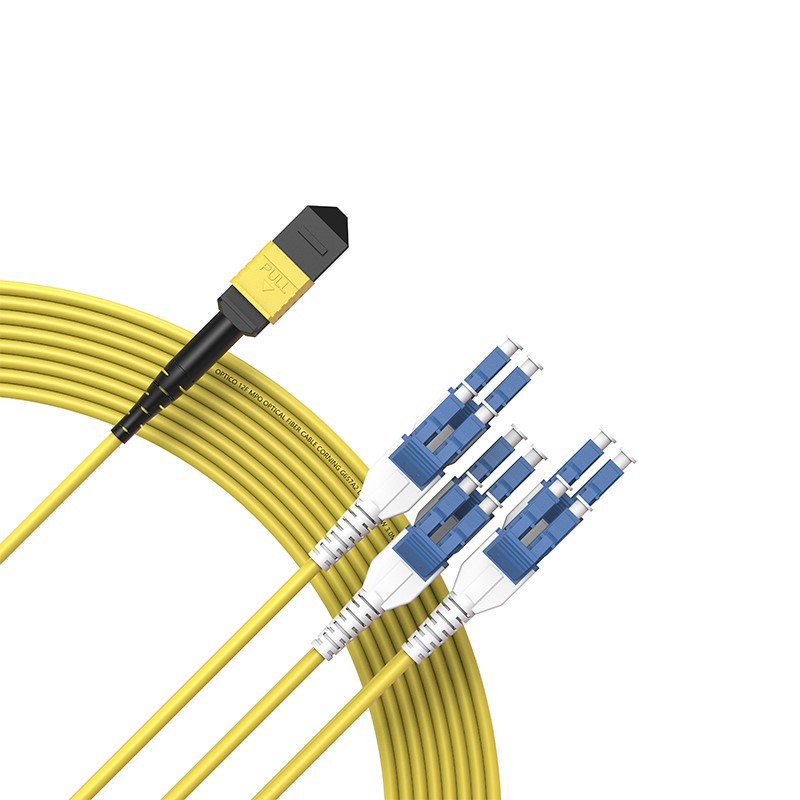

The MPO-LC Uniboot Breakout Patch Cord features bending-insensitive fibers, allowing for routing through tight spaces without compromising performance. This flexibility enhances the durability of the fibers, making them more resistant to stress and fatigue caused by bending.
Push/Pull Tab Innovation
The simple pull tab eliminates the need for finger access to the MTP® connectors' release mechanism, making installations in dense applications a breeze. The patch cord's compact design, coupled with simple insertion and removal, makes it a user-friendly solution.
Outstanding Performance
Equipped with precision-engineered glass fibers, this MPO-LC Uniboot Breakout Patch Cord delivers high-speed data rates while maintaining signal integrity.
Multi-fiber Fan-out Design
This MPO multi-fiber design allows users to leverage multifiber connectors without the need for an entire system overhaul or the replacement of transmitters.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Our Brand Confidence Comes From A Strong Production Team
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Ordering Process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
Hot Tags: mpo to lc uniboot 12 fibers harness cable, China, manufacturers, suppliers, factory, wholesale, customized, 24 Cores Om4 MPO LC Fanout Patch Cable, fiber patch cords, MPO MTP Fanout Fiber Optic Cables, om3 10g, mpo loopback cable, mpo patch cord
