Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of om3 mpo lc uniboot fan out cable in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
Designed to meet the demands of modern networks, the OM3 MPO LC Uniboot Fan Out Cable facilitates the distribution of a single 40 Gbps connection from a 40 GBase-SR 4 QSFP+ transceiver to four 10 Gbps LC SFP+ transceivers. The ruggerdized fan-out allows a direct connection between the trunk and the active equipment, eliminating the use of rack space. The factory-terminated modular system saves installation and reconfiguration time during movement, advertising and change. 100% tested - the combination of high quality components and manufacturing quality control ensures that products meet the highest standards.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 12 Fibers |
| Fiber Mode |
OM3 |
| Connector Type | Connector A: US Conec MTP/OPTICO MPO; |
| Connector B: LC/SC/FC/ST | |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Aqua |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Enhanced Accessibility and Space Efficiency
The push-and-pull tabs of the OM3 MPO LC Uniboot Fan Out Cable optimize accessibility, allowing for one-handed installation or removal of connectors without the need for additional tools. The slim uniboot design of the LC connectors not only enhances space efficiency but also contributes to improved cable management.
Fire-Rated Reliability
The OM3 MPO LC Uniboot Fan Out Cable is encased in a plenum-rated jacket, making it an ideal choice for installations where a CMP fire rating is required. This ensures that the cable adheres to stringent safety standards, providing reliable performance in environments with specific fire safety considerations.

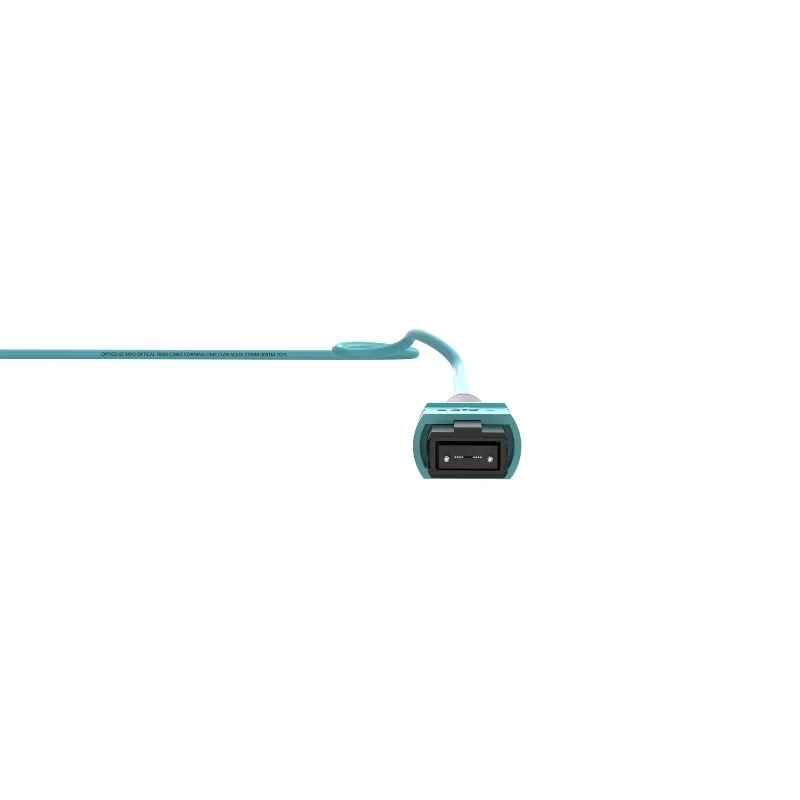

Rigorous Testing for Peak Performance
Each OM3 fiber cable undergoes individual testing for insertion loss and return loss. The inclusion of a comprehensive test report with each cable bag assures users of the cable's quality and adherence to performance standards. This commitment to quality control ensures that the cable meets or exceeds the expected performance parameters.
Versatile Connectivity Options
The 8/12 Fiber MPO Fanout Assemblies cater to diverse connectivity requirements, providing seamless connections between QSFP+ to 4 x SFP+, QSFP28 to 4 x SFP28, and QSFP-DD to 4 x QSFP-28 Transceiver Modules. These fan out cables find application in data centers, telecom, and backbone networks, providing connectivity options for 40G, 100G, 200G, and 400G.
Applications

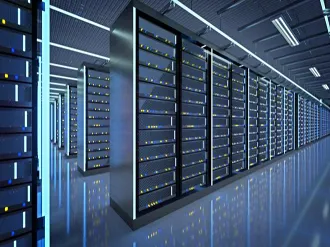

High Density Data Center
Backbone Network
Optical Module Connection
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
FAQ
Q: What advantages does the push-and-pull tab design offer?
Q: How does the uniboot design of the LC connectors contribute to space efficiency?
Q: How does the MPO breakout cable allow the redistribution of optical fibers?
Q: How can the MPO cable be tailored to meet specific data rate and equipment compatibility needs?
