Product profile
MTP MPO To 8 FC Harness Optic Cable is ideal for use as a 40 Gbps (40 GBASE-SR 4) link between two QSFP+ transceivers, as well as a backend backbone or distribution cable.
MTP MPO To 8 FC Harness Optic Cable is used to connect computing nodes, storage, and network devices.
It helps quickly deploy backbone cabling in data centers and other high-density environments, reducing network installation or reconfiguration time and cost.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 8 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | Connector A: US Conec MTP/OPTICO MPO; |
| Connector B: LC/SC/FC/ST | |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Rose |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Cost-Effective High-Density Patching
Designed as a low-cost alternative to time-consuming field termination, the MTP MPO To 8 FC Harness Optic Cable excels in high-density patching scenarios. Perfect for data centers facing space constraints, it simplifies cable management and ensures a reliable connection.
Versatile Connectivity with MTP/MPO Breakout Cable

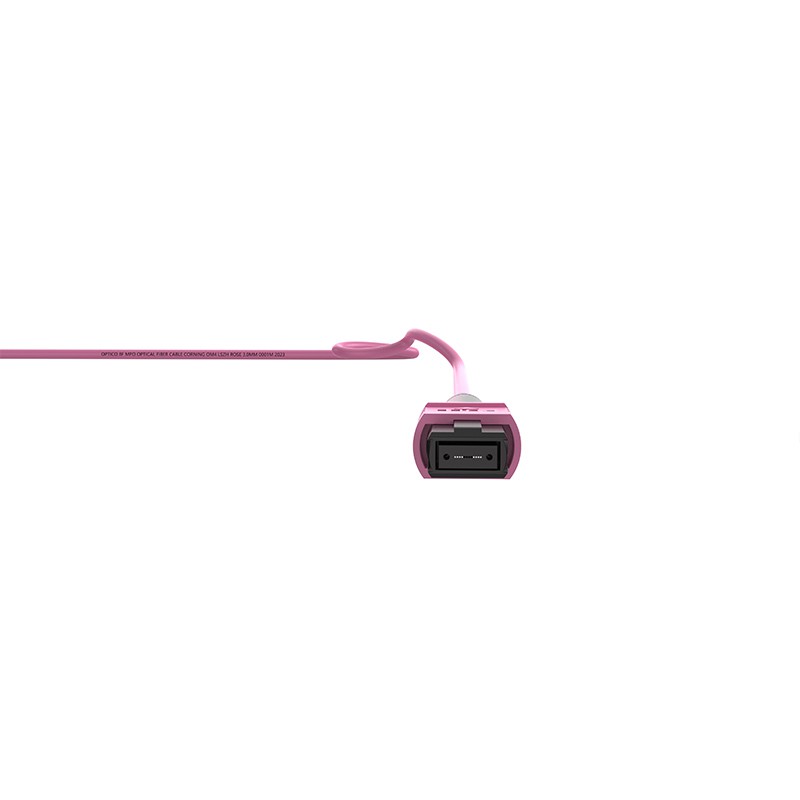

Terminated with a female MTP/MPO connector on one end and FC/APC connectors on the other, this breakout cable offers versatility. It's suitable for 10G-40G and 25G-100G direct connections, making it a versatile choice for various applications.
Extremely Low Insertion Loss and High Return Loss
The MTP MPO To 8 FC Harness Optic Cableoffers excellent optical performance with extremely low insertion loss and high return loss, maximizing signal integrity and reducing transmission errors.
Telcordia GR-1435-CORE Issue 2 Compliant
The MTP MPO To 8 FC Harness Optic Cable complies with the Telcordia GR-1435-CORE Issue 2 standard, which guarantees high-quality and reliable performance.
applications
High Density Data Center
Backbone Network
Optical Module Connection
our brand confidence comes from a strong production team
100% strict performance tests
IL/RL Test
3D Test
End Face Test
Temperature Test
certificates
CE
CPR
ISO
RoHS
full ranges of reliability tests from third-party lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
ordering process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
how we can stand by you
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
after-sales services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
