1x8 SM Mini Tube PLC Splitter SC APC
1×8 SM Mini Tube PLC Splitter SC APC provided by OPTICO is an integrated waveguide optical power distribution device based on quartz substrate.Like coaxial cable transmission, optical network systems also need to couple, branch, and distribute optical signals, which requires optical splitters to achieve. Multiple input terminals and multiple output terminals at the same time.The micro PLC optical splitter with the micro box structure has stronger fiber protection performance than the bare fiber PLC optical splitter.
Product Specifications
| Package Type | Mini Module | Port Configuration Type | 1x8 |
| Fiber Type | SM G.657A1 | Connector Type | SC/APC |
| Input/output Fiber Diameter | 900μm | Pigtail Length | 1.5m |
| Insertion Loss | ≤10.6dB | Return Loss | ≥50dB |
| Loss Uniformity | ≤1.0dB | Directionality | ≥55dB |
| Polarization Dependent Loss | ≤0.3dB | Temperature Dependent Loss | ≤0.5dB |
| Wavelength Dependent Loss | ≤0.3dB | Working Wavelength | 1260~1650nm |
| Operating Temperature | -40~85°C | Storage Temperature | -40~85°C |
Internal Structure of PLC Splitter
Advantages of 1x8 SM Mini Tube PLC Splitter SC APC
High Quality Ceramic Ferrule Connector
Compact Design
Uniform Optical Power Distribution
Applications
FTTX Networks

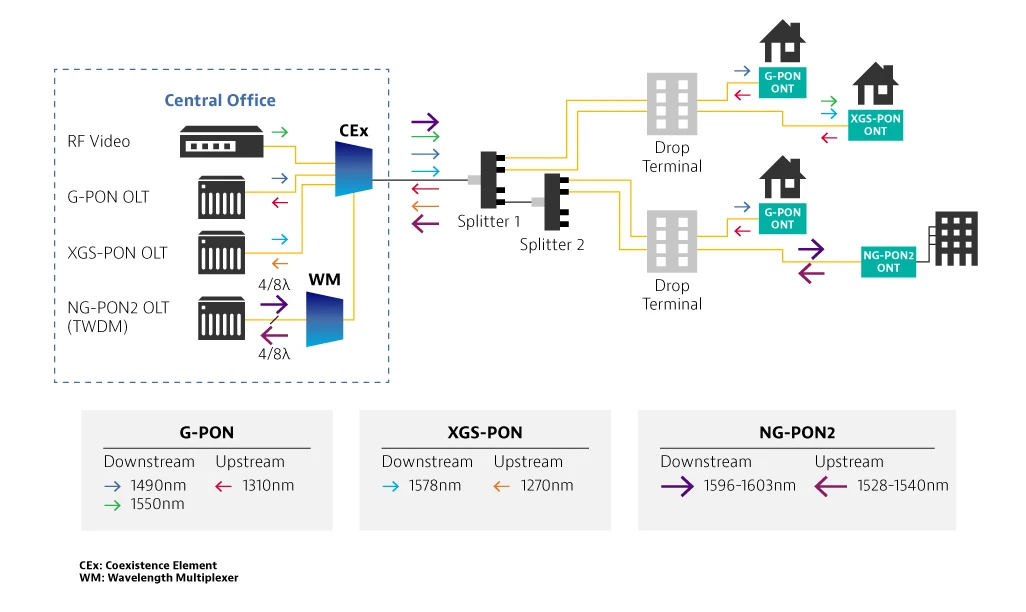

PON Networks
CATV Links
Certificates
CE
CPR
ISO
RoHS
Real Shots of the Assembly Process of 1x8 SM Mini Tube PLC Splitter SC APC
Mission will be achieved in 7-15 days
Micro PLC optical splitter can integrate multiple functions into one chip, thereby significantly reducing the size and cost of PLC splitter, and has been widely used in PON networks to achieve optical signal power management.
If you're interested,welcome to consult!
