Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of sc apc mini-module plc splitter in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
SC APC Mini-Module PLC Splitter
PLC optical splitter is a kind of optical power sharing product made by using planar optical waveguide technology on the basis of quartz substrate material. It is mainly suitable for coupling and distribution of optical signals in passive optical network (PON) systems. One of the most important passive components in the network; the PLC optical splitter provided by OPTICO has a variety of channels such as 1xN, 2xN, MxN, etc., to meet the diversified needs of customers,it is similar to FBT (melted taper) splitter In comparison, PLC has the advantages of insensitivity to wavelength, uniform light distribution, high stability, and high density. It is currently widely used in metropolitan area networks, local area networks, FTTX and other fields.
| Parameter | Unit | Value | |||||||||||
| Product Type | 1×2 | 1×3 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 | 1×64 | 1×128 | ||
| Operation Wavelength | nm | 1260～1650 | |||||||||||
| Insertion LossTyp. | dB | 4 | 6 | 7 | 9.4 | 10 | 12 | 13.2 | 16 | 16.5 | 20.5 | 24.5 | |
| Max. | 4.3 | 6.2 | 7.4 | 9.8 | 11 | 12.5 | 13.9 | 16.5 | 17.2 | 21.5 | 25.5 | ||
| Uniformity (Max.) | dB | 0.5 | 0.6 | 0.8 | 0.8 | 1 | 1 | 1.4 | 1.5 | 1.6 | 2 | 2.6 | |
| PDL(Max.) | dB | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 | |
| TDL(Max.) | dB | 0.5 | |||||||||||
| Return Loss | dB | ≥55/50 | |||||||||||
| Directivity | dB | ≥50 | |||||||||||
The inner structure of SC APC Mini-Module PLC Splitter
Scenes of applications
FTTH Networks
PON Networks
CATV Links
Some advantages of SC APC Mini-Module PLC Splitter
Evenly split optical power, small size and space saving
Corning/YOFC/Customized fiber

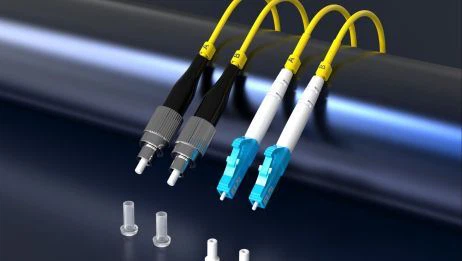

High quality ceramic ferrule connector
Our Dust-free Workshop of Coupling Process
Strictly tested by our production line
End surface polishing
IL/RL Test

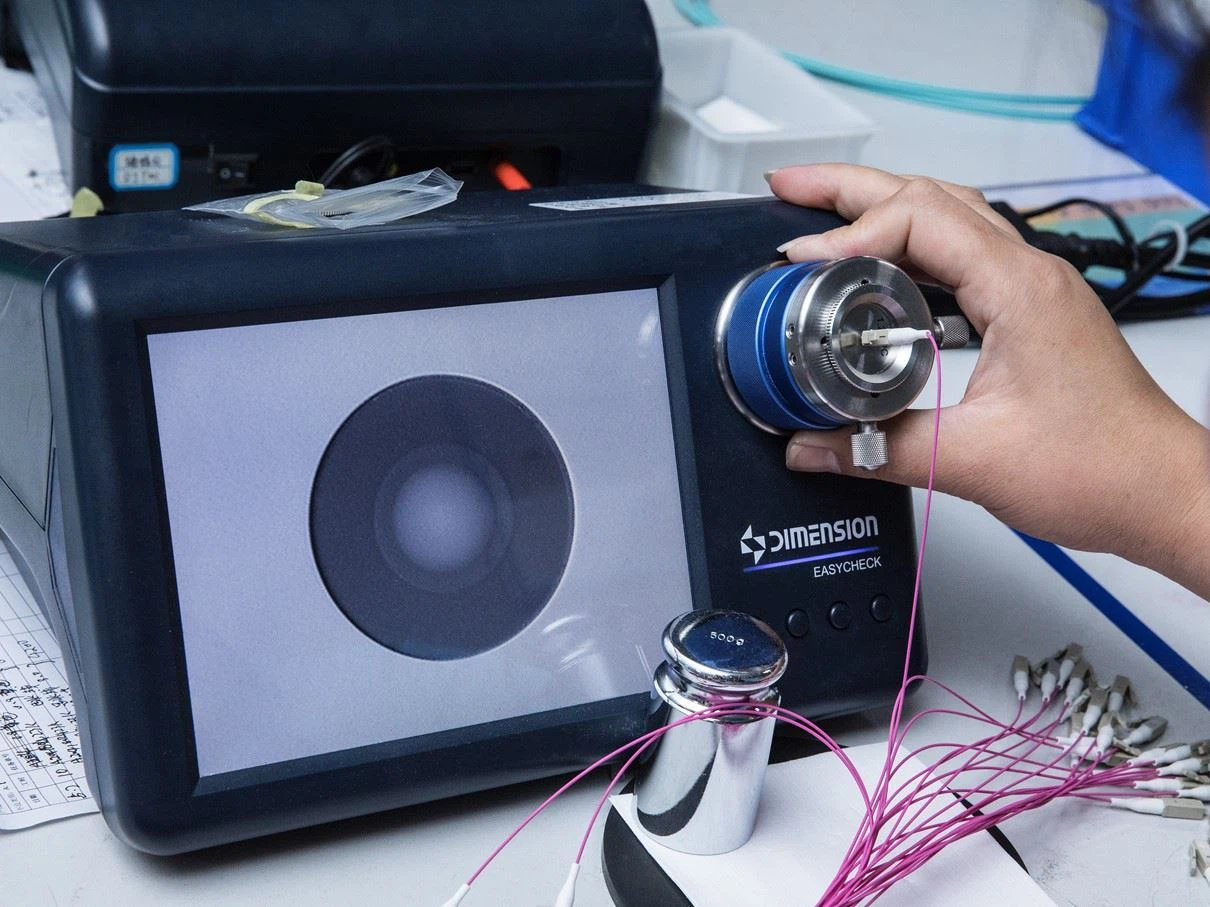

End surface test

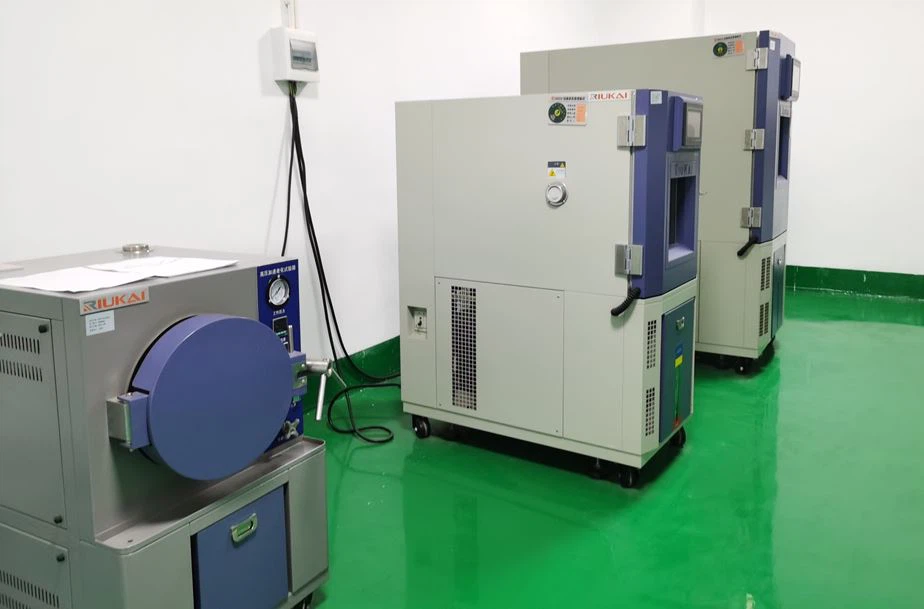

Temperature test
Types of certificates
CE
CPR
ISO
ROHS
7-15 DAYS
Our Services
We offer the sincere dedicated service!
Before Sale:
Detailed products test report
related specifications
During Cooperation:
OEM Service Offered
Design Service Offered
Buyer Label Offered
