Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of ccwdm compact coarse wavelength division mux demux in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

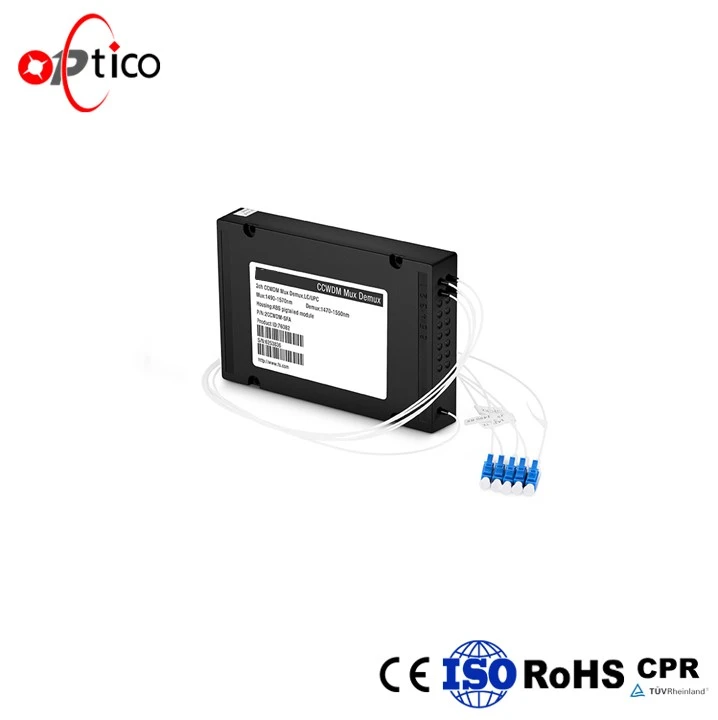

The main advantages of CCWDM Mux are high wavelength accuracy, low insertion loss, high isolation, low polarization dependent loss, good thermal stability, compact package and space saving. The compact wavelength division multiplexer is a substitute for CWDM products and can be used in telecommunication networks, metropolitan area networks, broadband networks, PON (passive optical network) networks and cable TV links.
| Number of channels | 2 | wavelength | 1490-1570nm |
| Channel bandwidth | ±6.5nm | Insertion loss | ≤1.3dB(with connector and adapter） |
| Connector type | LC / UPC | Channel spacing | 20nm |
| Package | ABS Box | technology | Free space |
| Cable diameter | 0.9mm | Fiber length | 0.5m |
| Adjacent channel isolation | ≥30dB | Non-adjacent channel isolation | ≥40dB |
| Polarization dependent loss | ≤0.3dB | Polarization mode dispersion | ≤0.1ps |
| Operating temperature | -5°C〜+ 65°C | Storage temperature | -40°C〜+ 85°C |
Compact design, smaller size
Free space technology
Low loss and crosstalk
High channel isolation
Can reach industrial grade
Single fiber bidirectional transmission
Dual fiber bidirectional transmission
Technicial points:
Point to point
Distance:15Km
Transmission capacity：18x10G
Loss of entire link is 0.6dB
Partners: 10G SR Transceivers

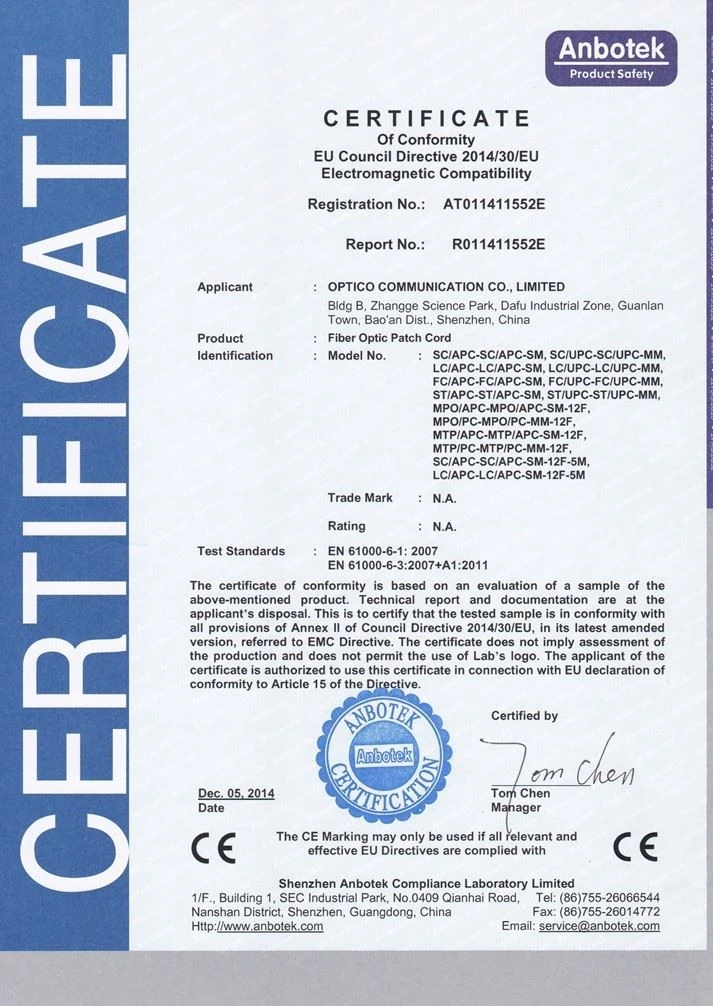

CE

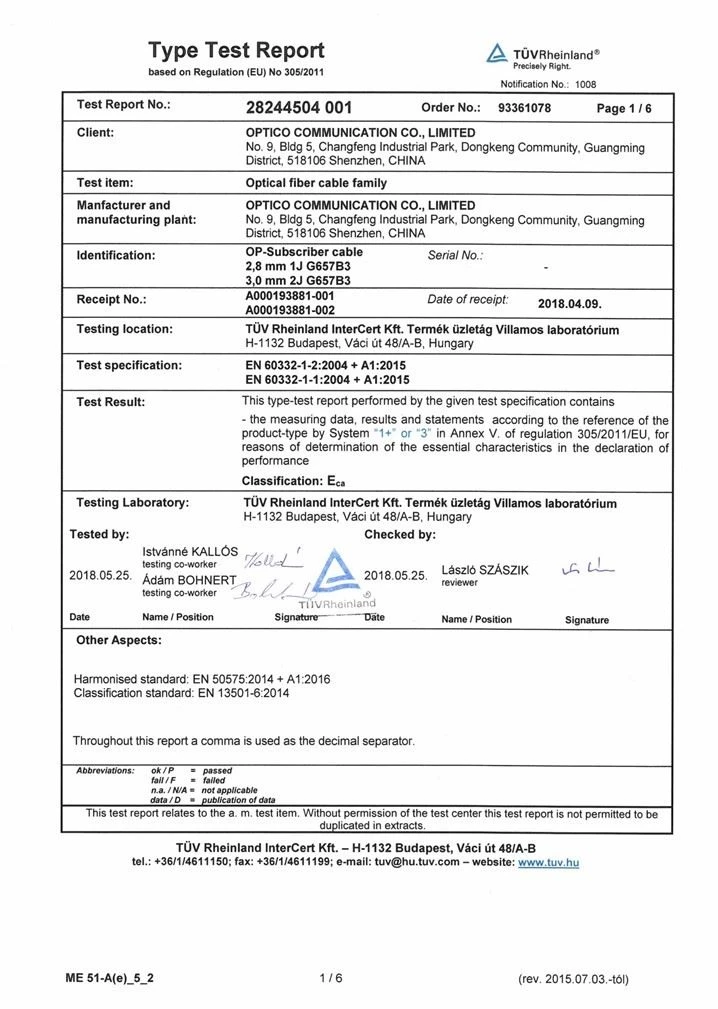

CPR

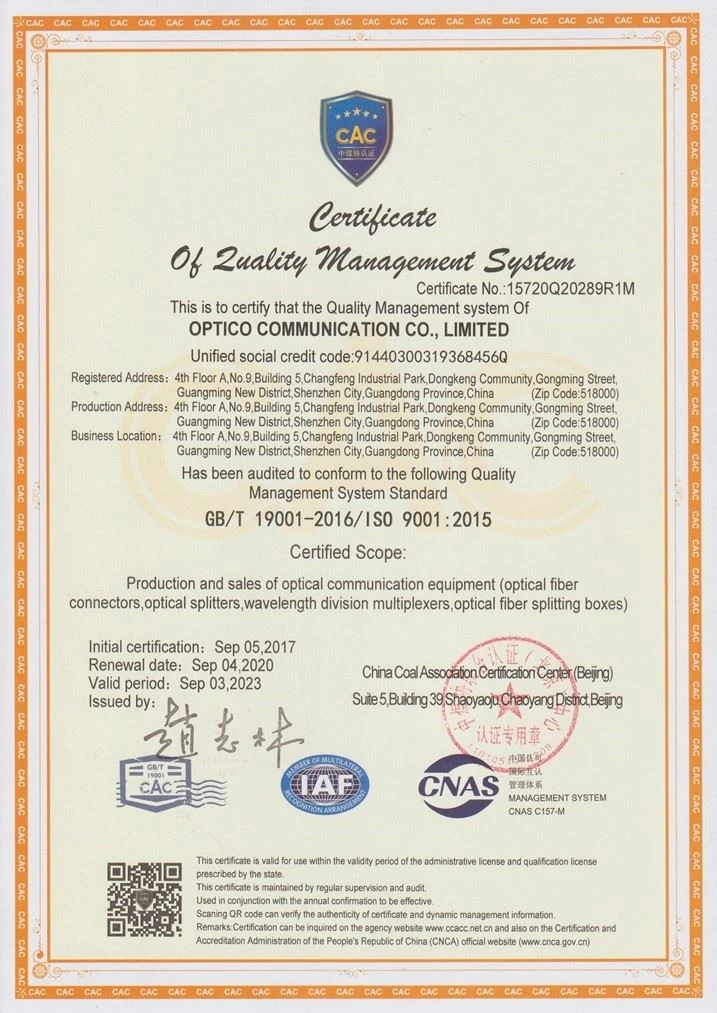

ISO

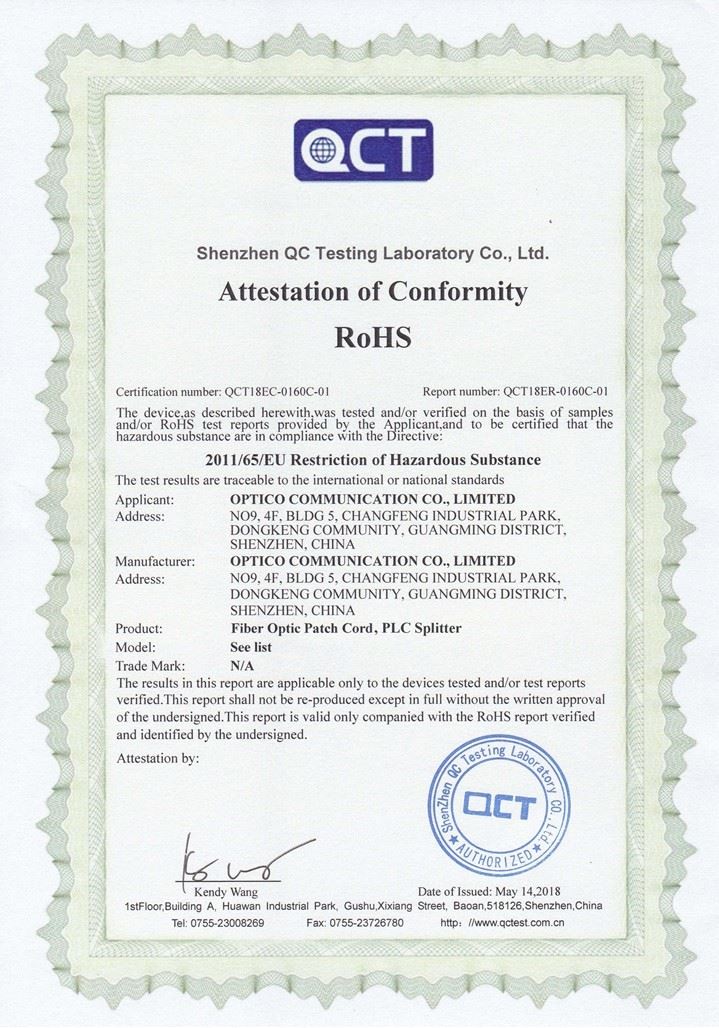

ROHS
Single fiber bidirectional transmission
Dual fiber bidirectional transmission
| 1 | Can real reach Industrial Grade |
| 2 | Professional technical team and sales team respond quickly |
| 3 | Professional solutions and suggestions |
| 4 | 200000channels/month to ensure fast delivery |
| 5 | 1500㎡ WDM production lines |
| 6 | 100% Optical and Temperature test before delivery |
| 7 | CE/FCC/ISO/ROHS/CPR |
| 8 | VR Factory:https://www.linked-reality.com/company/15555/en |
