Product profile

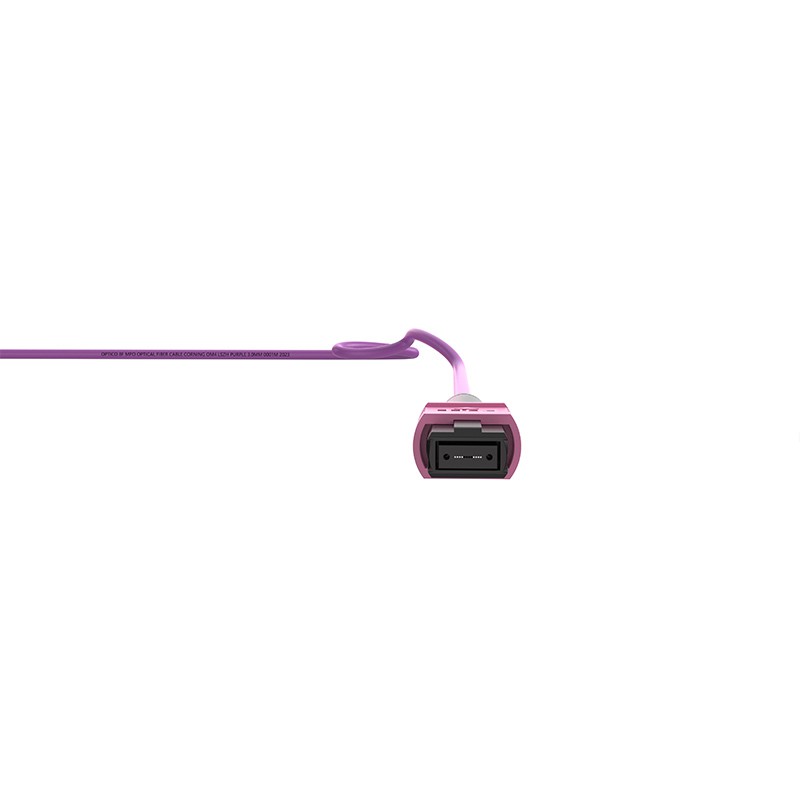

The 8 Fibers MPO SC OM4 Fan-out Patchcord ensures outstanding reliability and ultra-low insertion loss of 0.25dB. All our products are RoHS/ISO/CE/CPR/FCC compliant.
We also support custom solutions and OEM services for greater flexibility and scalability to meet your various cabling requirements.
A comprehensive range of fiber optic cabling, from 8 to 144 fibers, enables high-density connectivity, saving space in HPC (High-Performance Computing) environments such as data centers and hyperscale data centers.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 8 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | Connector A: US Conec MTP/OPTICO MPO; |
| Connector B: LC/SC/FC/ST | |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Purple |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
High Standard Material Seamless Data Transmission
Using US Conec connector, the patch cord has insertion loss as low as 0.25dB (low loss), 0.35dB (standard), and 0.7dB (maximum), which can maintain signal integrity and achieve seamless data communication.
Cost-Effective High-Density Patching
Designed as a low-cost alternative to time-consuming field termination, the8 Fibers MPO SC OM4 Fan-out Patchcord excels in high-density patching scenarios. Perfect for data centers facing space constraints, it simplifies cable management and ensures a reliable connection.
Customization Options
Tailored to meet diverse connectivity needs, 8 Fibers MPO SC OM4 Fan-out Patchcord offers options for female or male MTP connectors, various standard connector interfaces (LC, SC, etc.), and a choice of standard or custom breakout lengths.
Ease of Installation
The 8 Fibers MPO SC OM4 Fan-out Patchcord Customizable arrives factory pre-terminated, saving you precious installation time and effort. Integrated push-pull tubing further streamlines the setup process.
applications
High Density Data Center
Backbone Network
Optical Module Connection
our brand confidence comes from a strong production team
100% strict performance tests
IL/RL Test
3D Test
End Face Test
Temperature Test
certificates
CE
CPR
ISO
RoHS
full ranges of reliability tests from third-party lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
ordering process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
how we can stand by you
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
after-sales services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
