Product Profile

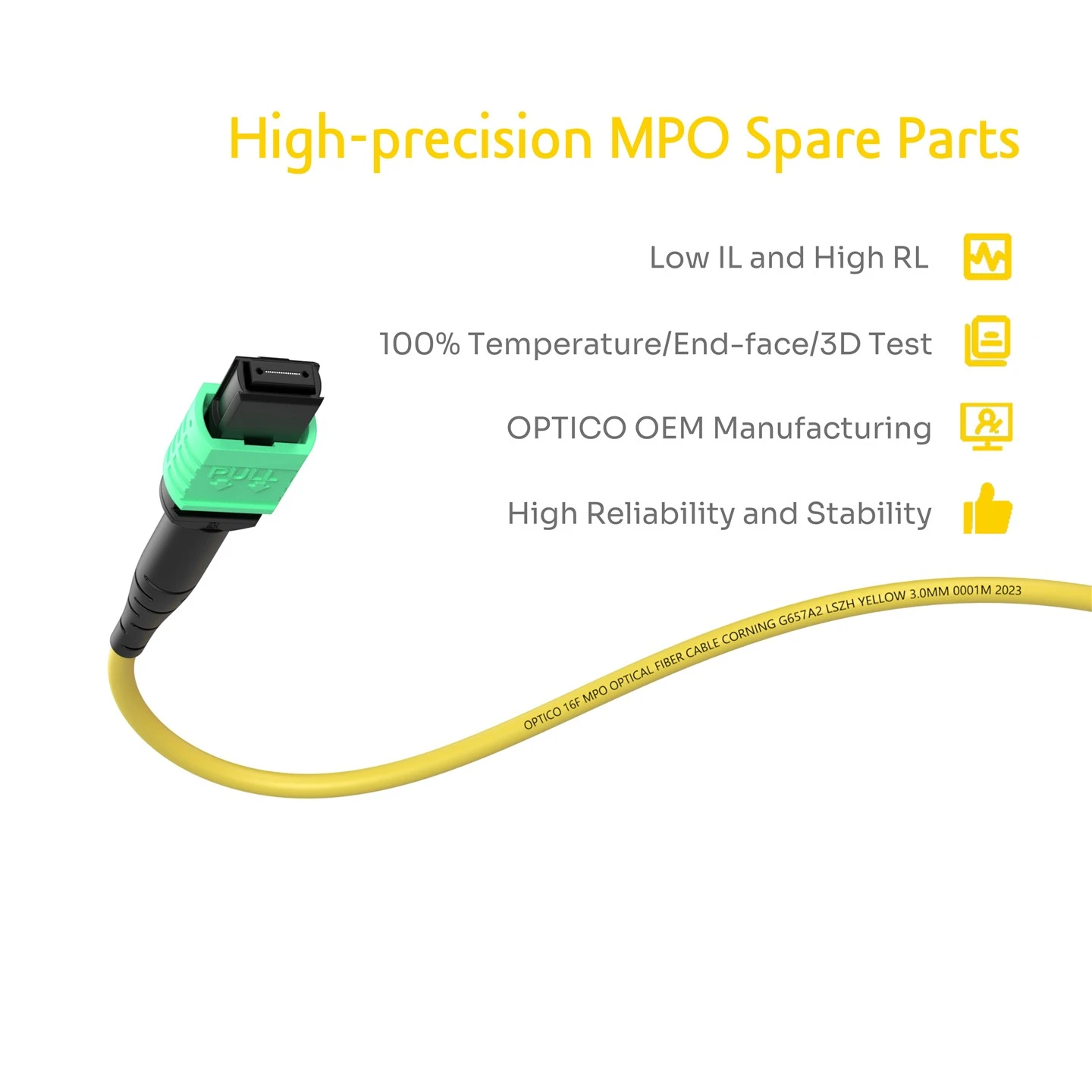

The 16F MPO-MPO Female Trunk Cable OS2 is a specialized solution designed for seamless 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 fiber direct connections, catering to the high-density demands of super-scale data centers.
It features high-performance MPO female connectors and 16 corning optical fibers, enabling optimal functionality and reliability.
Additionally, 16F MPO trunk cable provides consistent user quality, faster installation, and simpler cable management.
16F MPO-MPO Female Trunk Cable OS2 provides options suitable for standard insertion loss ≤0.5dB, low loss ≤0.35dB, and ultra-low loss ≤0.25 dB, which can ensure signal attenuation is minimized during data transmission and high-performance data transmission.
16F MPO trunk cable is used to connect data centers and hyperscale data centers, meet the demanding bandwidth requirements in supercomputing projects, and realize large-scale data processing and analysis.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 16 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | MPO Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Space and Cost Efficiency
With the ability to achieve up to 16 times the density of SC connectors, the 16F MPO-MPO Female Trunk Cable OS2 significantly saves space and reduces costs.
The factory-terminated nature of 16F MPO trunk cable significantly reduces installation and reconfiguration time during moves, adds, and changes. Configurable length assemblies further contribute to efficient cable management by minimizing slack and patch field congestion.
Premium MPO connectors with low loss and bend-insensitive fiber contribute to the optimized performance of the 16F MPO patch cord, reducing signal losses and minimizing power penalties. Each MPO assembly undergoes 100% factory testing, ensuring reliable connectivity that adheres to TIA 568 and IEC 61754 standards.
16F MPO patch cords future-proof networks by supporting next-generation speeds. Their modular connectivity facilitates smooth migration plans for evolving network requirements, accommodating speeds like 400G and 800G.
Applications
Hyperscale Data Center 800G
Backbone Network
800G Optical Module Dire Connection
Connectivity Solutions
100G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment: Deploy a high-performance switch and 100G QSFP28 Optical Transceiver Module for 100Gb/s speeds.
For short distances: use 100G-SR4-S 100m Optical Transceiver Module.
For long-distance: use 100G Fiber Optical SFP Transceiver 2KM, 100G LR4 QSFP 10km Optical Transceiver Module, or 100G QSFP28 Module Transceiver 40km.
b. Fiber Connection Method: Connect equipment using MTP Patch Cord Multimode 12 Cores.
c. Fiber Cabling Management: Implement 12 Port MTP Panel and high-density Optical MTP Panel for organized cable storage.
2. Core to Access Connection: Use 12F MTP MPO Fiber Cable to link the core and access.
Alternatively, we can also use 16F MPO-MPO Female Trunk Cable OM5 to connect Core and Access.
3. Access Cabling Solution: Identical to the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
