Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24f mtp mpo y trunk cable om4 purple in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
In the ever-evolving landscape of data networks, the demand for higher bandwidth has become imperative, driven by the burgeoning requirements of cloud services, hyperscale data centers, and advanced telecom applications.

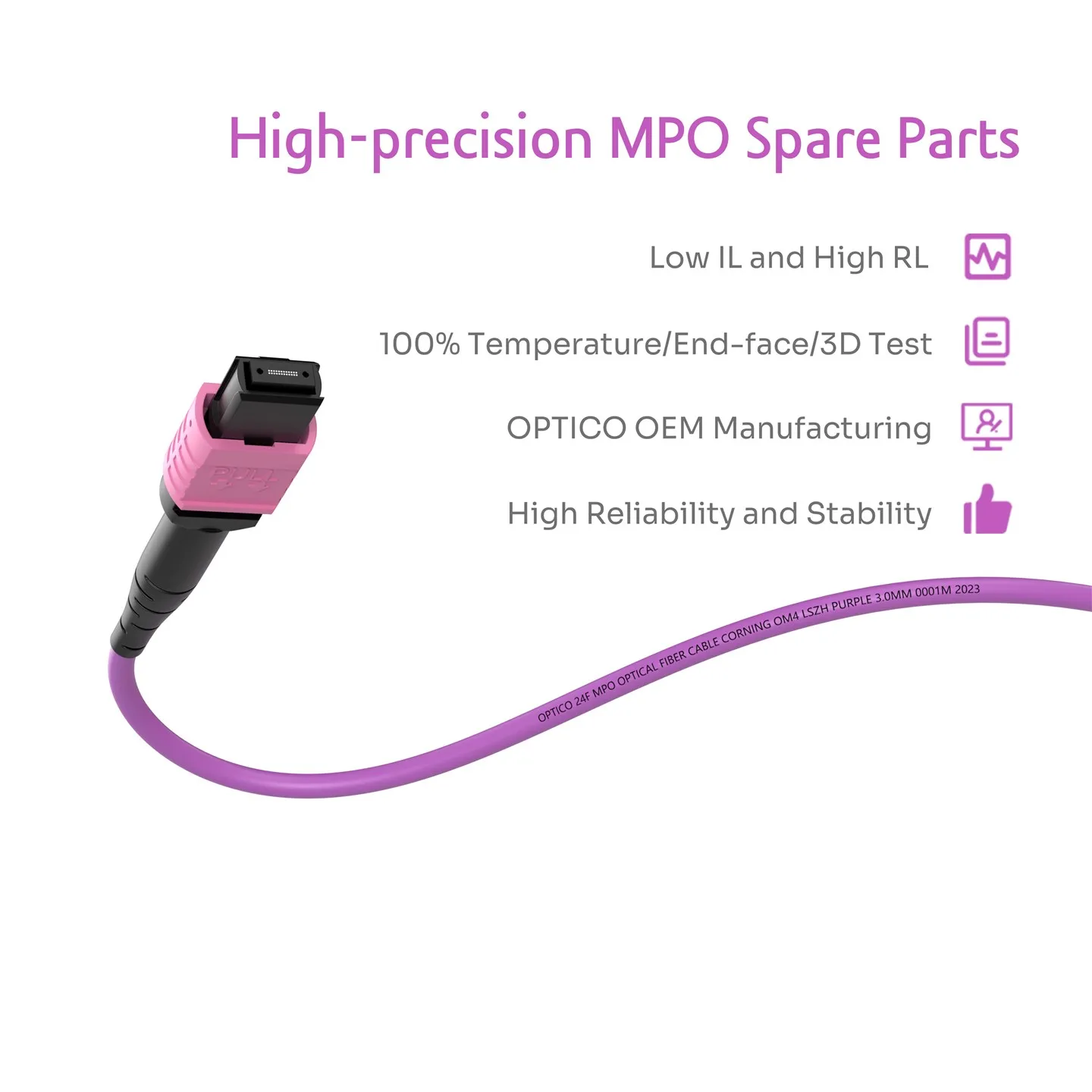

To meet these evolving needs, the 24F MTP MPO Y Trunk Cable OM4 Purple emerges as a cutting-edge solution, catering to the demands of 400 GbE Ethernet and next-gen connectivity.
It is ideal for use as a 40 Gbps (40 GBASE-SR 4) link between two QSFP+ transceivers as a back-end backbone or distribution cable.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Purple |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Positioned as a pivotal component in the transition to 400 GbE Ethernet, this MPO trunk cable delivers the high bandwidth necessary for the next generation of cloud services, hyperscale data centers, and telecom carriers. With the capacity to support speeds up to 100 meters at 850 nm, it aligns seamlessly with the demands of evolving network infrastructures.
The MPO connectors boast a wide parallel optical interface, perfectly complementing the requirements of 400G QSFP-DD transceivers. Despite being the same size as standard SC connectors, they offer greater density, facilitating vertical stacking in switches or patch panels where space is a premium commodity. The inclusion of pull tabs enhances ease of installation and removal, enabling efficient one-handed operation.
Engineered for horizontal premise applications in air ducts and drop ceilings, the MPO trunk cable features a 3.0 ruggedized plenum-rated jacket. This jacket not only exhibits low smoke and flame characteristics but also ensures compliance with stringent safety standards.
The purple jacket of the OM4-rated cable ensures rapid recognition, preventing accidental disconnections and streamlining maintenance and troubleshooting processes. This distinctive color coding adds a layer of efficiency to network management.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Connectivity Solutions
40G Trunk Cabling Solution
a. Core Connection Equipment
Equip with a high-performance switch and a 40G BASE-SR4 QSFP+ 850nm 150m Optical Transceiver Module to achieve 40 Gb/s.
b. Fiber Connection Method
Use 24F MTP MPO Y Cable OM3 for equipment connections.
c. Fiber Cabling Management:
Use 24 Core MPO Module Cassette, and High-Density 1U Rack Mount Enclosure to store and organize cables to avoid clutter.
2. Core to Access Connection: Use 24F MPO-MPO Female Trunk Cable OM3 to connect core and access points.
3. Access Cabling Solution
Identical to the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
One-to-one Consulting Service
Professional Technical Team Support
Super Strict Quality Control
Huge Production Capacity
Never Change Price Arbitrarily
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via:
Phone: +86-755-33532578
Email: sales@fiberopticom.com
WhatsApp: 8619129420326
FAQ
Q: What is the minimum bending radius of the trunk cable?
Q: How many insertion and removal times can the cable withstand?
Q: Is the OM4 cable backward compatible with OM3-rated systems?
Q: Is MPO transceiver male or female?
Q: How does MPO/MTP solution facilitate network upgrades and gradual expansions?
